VISHAYDatasheet (PDF)

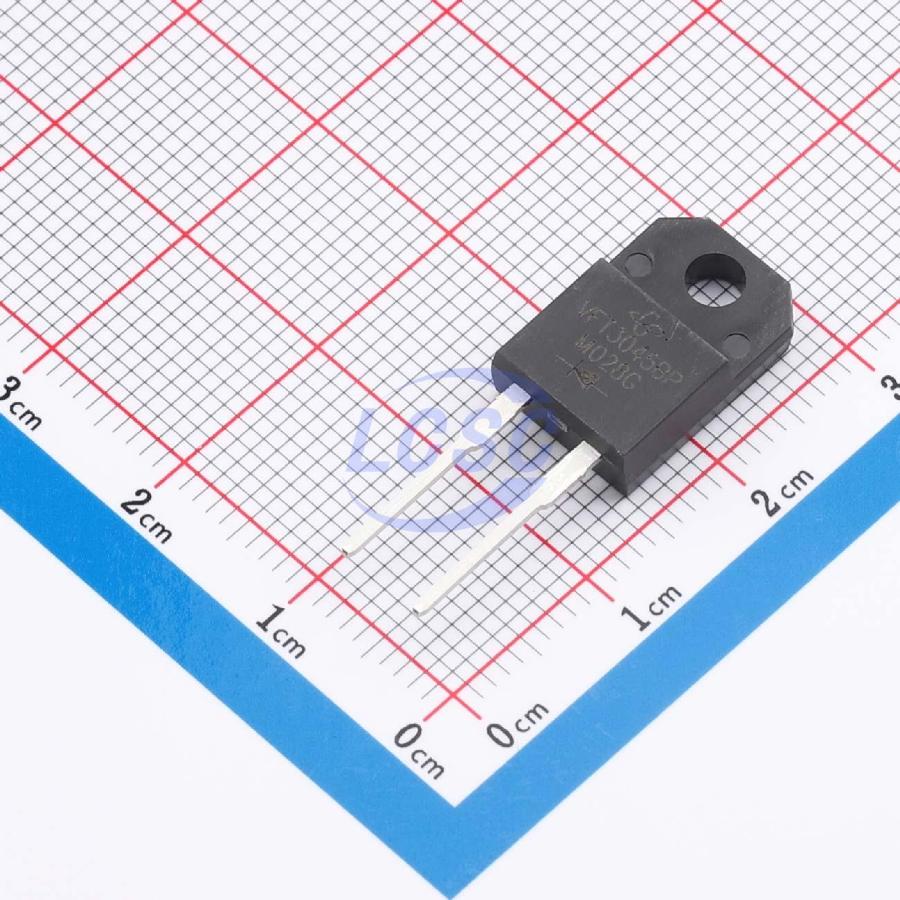

VFT3045BP-M3/4W
1 Independent 45V 700mV@30A 30A ITO-220AC Single Diodes RoHS
ITO-220ACROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- VFT3045BP-M3/4W
- Store part #
- C3759299
- Package / case
- ITO-220AC
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C3759299
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹210.97 | ₹210.97 |
| 10+ | ₹207.29 | ₹2,072.90 |
| 30+ | ₹204.89 | ₹6,146.70 |
| 100+ | ₹202.51 | ₹20,251.00 |
1 × ₹210.97
₹210.97
excl. GST
₹248.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VFT3045BP-M3/4W
₹210.97 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Voltage - Forward(Vf@If)
- 700mV@30A
- Reverse Leakage Current (Ir)
- 2mA@45V
- Non-Repetitive Peak Forward Surge Current
- 200A
- Current - Rectified
- 30A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.63 g
Overview
Trench MOS Barrier Schottky Rectifier for photovoltaic solar cell bypass protection. Ultra-low VF = 0.30 V at IF = 5 A.
Applications
- Used as bypass diodes in solar cell junction boxes for protection, operating with DC forward current without reverse bias.
Key features
- Trench MOS Schottky technology
- Low forward voltage drop, low power dissipation, high efficiency operation
- Per JESD 22-B106, solder bath temperature up to 275°C for 10 s
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VFT4045BP-M3/4W#C5358617VISHAY · ITO-220AC | VISHAY | ITO-220AC | 46 | ₹276.41 · 46 in stock | View |
| RBQ30TB45BNZC9#C3757603ROHM · TO-220FN-2 | ROHM | TO-220FN-2 | On request | ₹114.96 · 0 in stock | View | |
