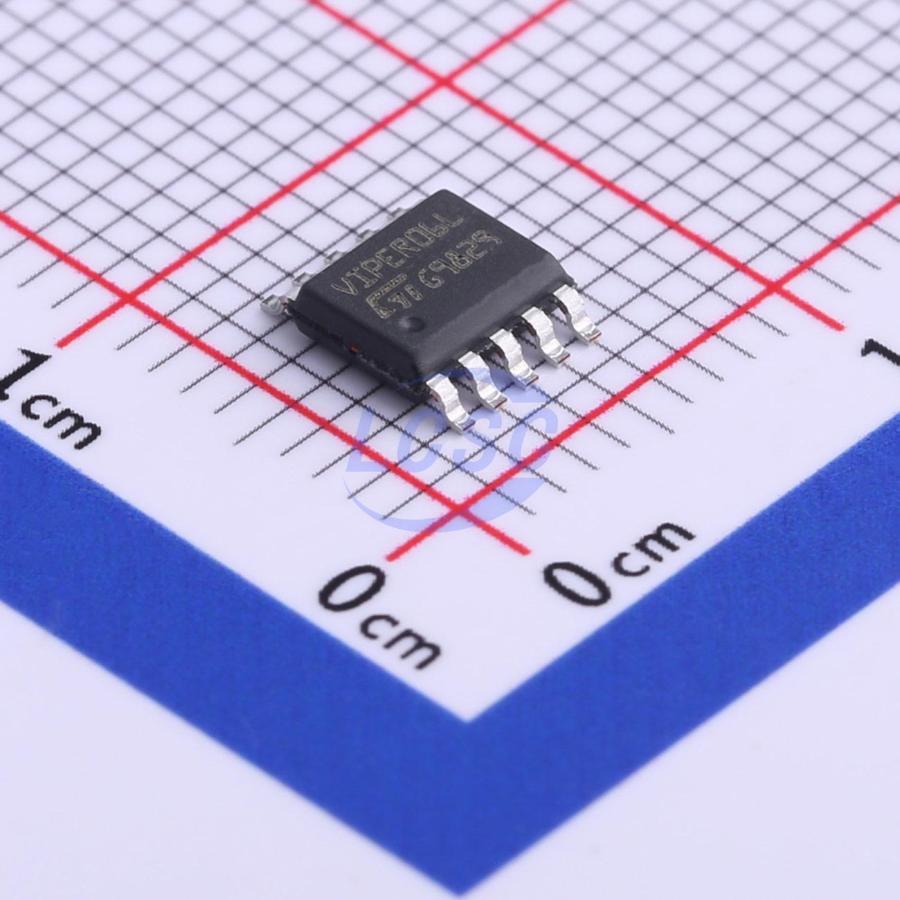

VIPER06LSTR
350mA 60kHz 1W 11.5V~23.5V 800V SSOP-10-150mil AC DC Converters, Offline Switchers RoHS
SSOP-10-150milROHS3 CompliantActive
Energy saving high voltage converter for direct feedback
- Manufacturer
- ST
- Manufacturer part #
- VIPER06LSTR
- Store part #
- C501111
- Package / case
- SSOP-10-150mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,156 in stock
#C501111
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹161.84 | ₹161.84 |
| 10+ | ₹132.05 | ₹1,320.50 |
| 30+ | ₹117.03 | ₹3,510.90 |
| 100+ | ₹102.24 | ₹10,224.00 |
| 500+ | ₹90.06 | ₹45,030.00 |
| 1,000+ | ₹85.49 | ₹85,490.00 |
1 × ₹161.84
₹161.84
excl. GST
₹190.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VIPER06LSTR
₹161.84 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Output Current
- 350mA
- Frequency - Switching
- 60kHz
- Pd - Power Dissipation
- 1W
- Voltage - Supply
- 11.5V~23.5V
- Voltage - Breakdown
- 800V
- Features
- EMI optimization (spread spectrum);Adjustable current limiting;Light load efficient mode;High voltage direct start;Soft-start;Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
- Topology
- Buck;Flyback
- Duty Cycle(Max)
- 70%
- Feedback System
- Secondary-Side Feedback
- Working Mode
- PWM Modulation
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.292 g
Overview
The VIPER06 is an offline converter with an 800 V avalanche rugged power section, a PWM controller, a user-defined overcurrent limit, open-loop failure protection, hysteretic thermal protection, soft startup and safe auto-restart after any fault condition. The device is able to power itself directly from the rectified mains, eliminating the need for an auxiliary bias winding. Advanced frequency jittering reduces EMI filter cost. Burst mode operation and the device’s very low power consumption both help to meet the standards set by energy-saving regulations.
Applications
- Replacement of capacitive power supplies
- Home appliances
- Power metering
- LED drivers
Key features
- 800 V avalanche rugged power section
- PWM operation with frequency jittering for low EMI
- Operating frequency: 30 kHz for VIPER06Xx, 60 kHz for VIPER06Lx, 115 kHz for VIPER06Hx
- No need for an auxiliary winding in low-power applications
- Standby power <30 mW at 265 V AC
- Limiting current with adjustable set point
- On-board soft-start
- Safe auto-restart after a fault condition
- Hysteretic thermal shutdown
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VIPER06XSTR#C2845040ST · SSOP-10-150mil | ST | SSOP-10-150mil | 71 | ₹127.91 · 71 in stock | View |
