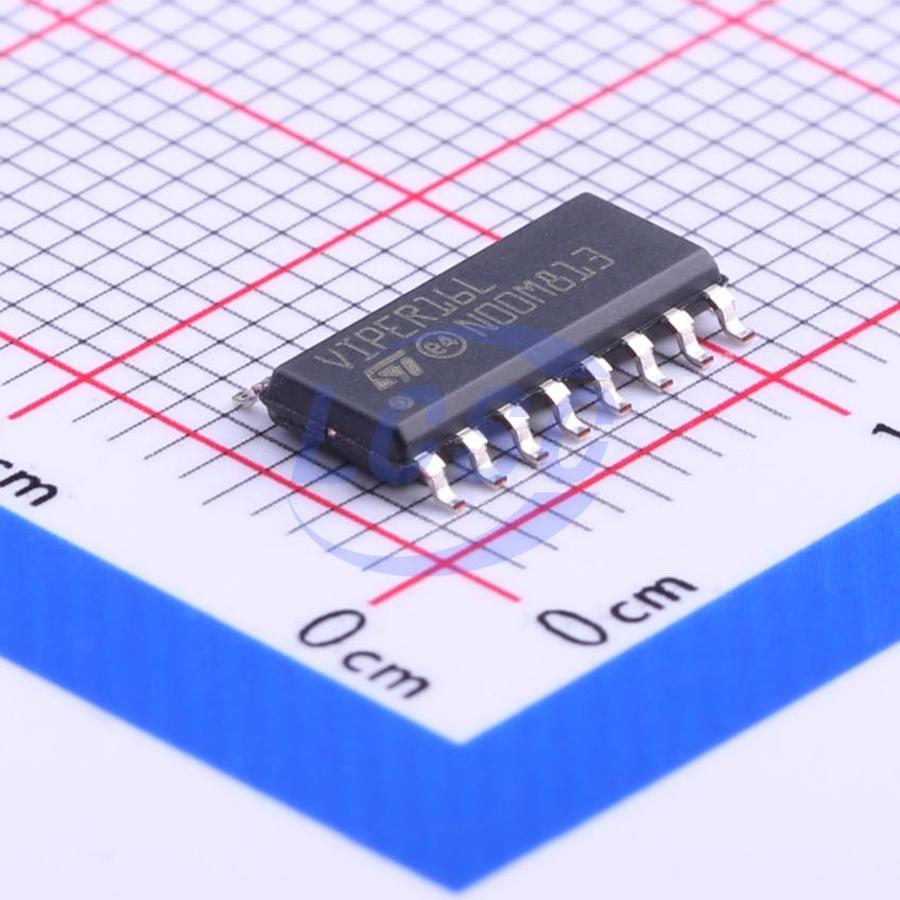

VIPER16LDTR
60kHz 1W 11.5V~23.5V 800V SOIC-16 AC DC Converters, Offline Switchers RoHS
SOIC-16ROHS3 CompliantActive
Fixed frequency VIPer plus family
- Manufacturer
- ST
- Manufacturer part #
- VIPER16LDTR
- Store part #
- C71755
- Package / case
- SOIC-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,901 in stock
#C71755
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹139.66 | ₹139.66 |
| 10+ | ₹117.91 | ₹1,179.10 |
| 30+ | ₹107.03 | ₹3,210.90 |
| 100+ | ₹96.37 | ₹9,637.00 |
| 500+ | ₹90.06 | ₹45,030.00 |
| 1,000+ | ₹86.80 | ₹86,800.00 |
1 × ₹139.66
₹139.66
excl. GST
₹164.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VIPER16LDTR
₹139.66 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Frequency - Switching
- 60kHz
- Pd - Power Dissipation
- 1W
- Voltage - Supply
- 11.5V~23.5V
- Voltage - Breakdown
- 800V
- Features
- Soft-start;Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
- Topology
- Buck;Buck-Boost;Flyback
- Duty Cycle(Max)
- 70%
- Working Mode
- PWM Modulation
- Feedback System
- Primary-side feedback
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.284 g
Overview
The device is an off-line converter with an 800 V avalanche ruggedness power section, a PwM controller, user defined overcurrent limit, protection against feedback network disconnection, hysteretic thermal protection, soft start up and safe auto restart after any fault condition. It is able to power itself directly from the rectified mains, eliminating the need for an auxiliary bias winding. Advance frequency jittering reduces EMl filter cost. Burst mode operation and the devices very low consumption both help to meet the standard set by energy saving regulations.
Applications
- Replacement of capacitive power supply
- Auxiliary power supply for appliances
- Power metering
- LED drivers
Key features
- 800 V avalanche rugged power section
- PWM operation with frequency jittering for low EMI
- Operating frequency: 60 kHz for L type, 115 kHz for H type
- No need of auxiliary winding for low power application
- Standby power <30 mW at 230 VAC
- Limiting current with adjustable set point
- On-board soft-start
- Safe auto-restart after a fault condition
- Hysteretic thermal shutdown
