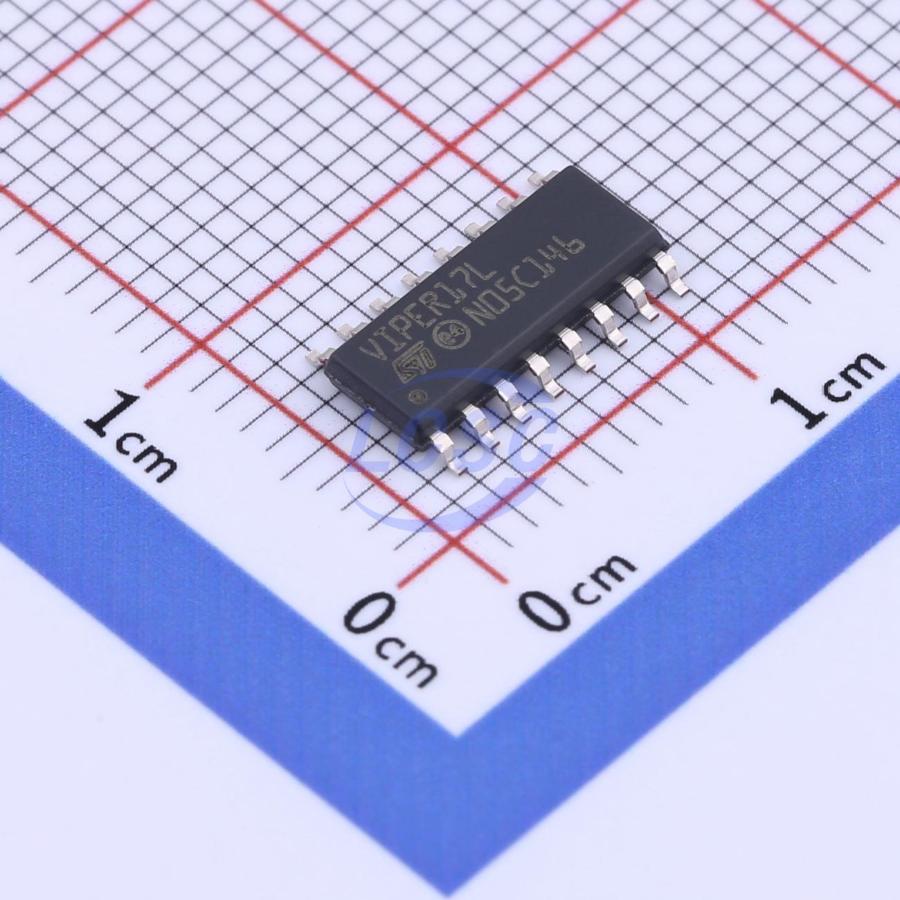

VIPER17LDTR
400mA 60kHz 1W 8.5V~23.5V 800V Flyback SO-16 AC DC Converters, Offline Switchers RoHS
SO-16ROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- VIPER17LDTR
- Store part #
- C2764053
- Package / case
- SO-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,477 in stock
#C2764053
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.24 | ₹73.24 |
| 10+ | ₹64.81 | ₹648.10 |
| 30+ | ₹60.49 | ₹1,814.70 |
| 100+ | ₹56.17 | ₹5,617.00 |
| 500+ | ₹53.79 | ₹26,895.00 |
| 1,000+ | ₹52.28 | ₹52,280.00 |
1 × ₹73.24
₹73.24
excl. GST
₹86.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VIPER17LDTR
₹73.24 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Output Current
- 400mA
- Frequency - Switching
- 60kHz
- Pd - Power Dissipation
- 1W
- Voltage - Supply
- 8.5V~23.5V
- Voltage - Breakdown
- 800V
- Features
- Soft-start;Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
- Topology
- Flyback
- Duty Cycle(Max)
- 70%
- Working Mode
- PWM Modulation
- Feedback System
- Secondary-Side Feedback
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.251 g
Overview
The device is an off-line converter with an 800 V rugged power section, a PWM control, two levels of overcurrent protection, overvoltage and overload protections, hysteresis thermal protection, soft-start and safe auto-restart after any fault condition removal. The burst mode operation and the device’s very low consumption meet the standby energy saving regulations.
Applications
- Adapters for PDA, camcorders, shavers, cellular phones, videogames
- Auxiliary power supply for LCD/PDP TV, monitors, audio systems, computer, industrial systems, LED driver, No el-cap LED driver
- SMPS for set-top boxes, DVD players and recorders, white goods
Key features
- 800 V avalanche rugged power section
- PWM operation with frequency jittering for low EMI
- Operating frequency: 60 kHz for L type, 115 kHz for H type
- Standby power <30 mW at 265 V AC
- Advance frequency jittering reduces EMI filter cost
- Brown-out function protects the switch mode power supply when the rectified input voltage level is below the normal minimum level specified for the system
- The high voltage startup circuit is embedded in the device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| VIPER17HDTR#C2688491ST · SO-16 | ST | SO-16 | 2 | ₹185.37 · 2 in stock | View | |
 | VIPER25LDTR#C5267815ST · SO-16 | ST | SO-16 | 25 | ₹144.14 · 25 in stock | View |
 | NCP13992ALDR2G#C3093895onsemi · SOIC-16 | onsemi | SOIC-16 | 15 | ₹317.82 · 15 in stock | View |
 | NCP13992ATDR2G#C3094032onsemi · SOIC-16 | onsemi | SOIC-16 | 35 | ₹294.10 · 35 in stock | View |
