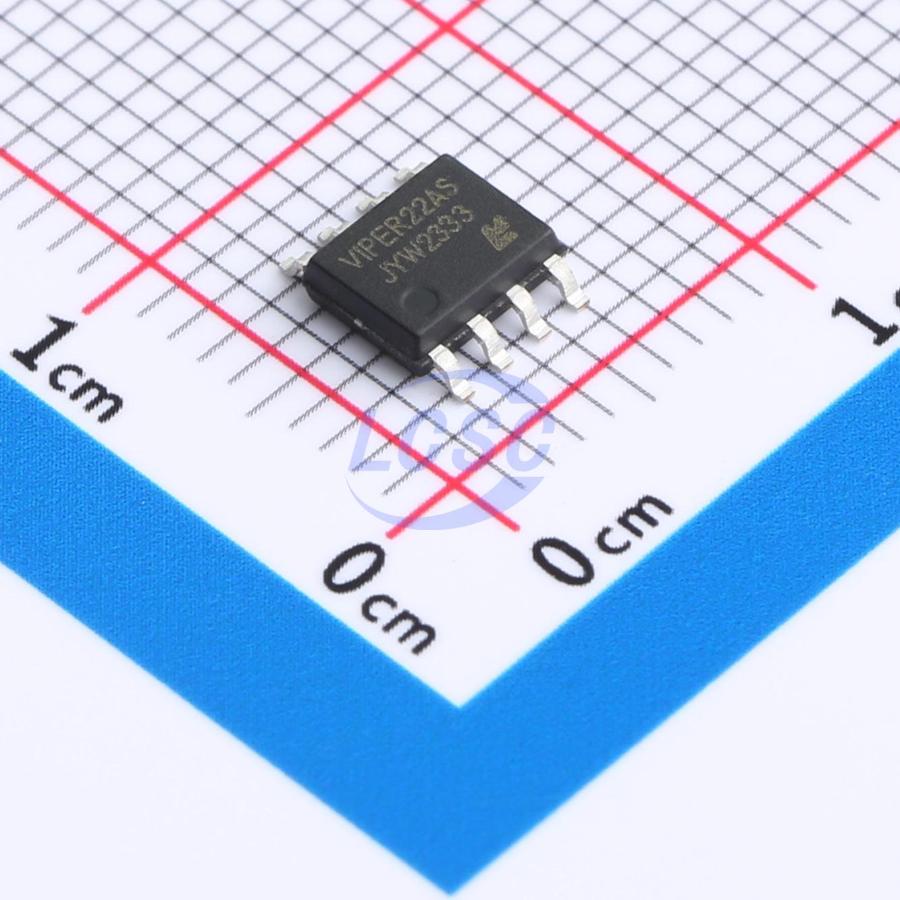

VIPER22AS
Converter Offline 65kHz SOP-8
SOP-8ROHS CompliantActive
High-performance offline PWM switching power supply controller
- Manufacturer
- Minos
- Manufacturer part #
- VIPER22AS
- Store part #
- C17701850
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,042 in stock
#C17701850
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹40.91 | ₹40.91 |
| 10+ | ₹32.71 | ₹327.10 |
| 30+ | ₹29.21 | ₹876.30 |
| 100+ | ₹23.94 | ₹2,394.00 |
| 500+ | ₹21.98 | ₹10,990.00 |
| 1,000+ | ₹20.81 | ₹20,810.00 |
1 × ₹40.91
₹40.91
excl. GST
₹48.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
VIPER22AS
₹40.91 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Frequency - Switching
- 65kHz
- Output Current
- 800mA
- Voltage - Breakdown
- 800V
- Voltage - Supply
- 10V~35V
- Features
- High voltage direct start;EMI optimization (spread spectrum);Leading edge blanking;Under-voltage lockout;Soft-start;Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP)
- Topology
- Flyback
- Duty Cycle(Max)
- 90%
- Feedback System
- Secondary-Side Feedback
- Working Mode
- PWM Modulation
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.145 g
Overview
VIPER22AS is a high-performance offline PWM switching power supply controller compliant with green environmental standards. It integrates a high-voltage startup circuit, soft-start circuit, and multiple protection features, offering simplified application peripherals and exceptional reliability. Under certain operating conditions, this device can also be used in non-isolated applications. It is widely applicable in various cost-effective switching power supplies.
Applications
- Small appliance power supplies
- Charger power supplies
- Suitable for 12W applications across full voltage range
Key features
- Integrated 800V power MOSFET
- Integrated high-voltage startup circuit
- Full input voltage range (85V~265V)
- Latched PWM with cycle-by-cycle current limiting
- Soft-start function
- Built-in overload, over-temperature, VDD overvoltage, and output open/short-circuit protection
- Frequency modulation and frequency dithering for improved EMI compatibility
- No-load power consumption less than 0.15W, less than 0.1W at 220VAC input
