VN5160STR-E
1 Active High 3.8A High Side Switch SOIC-8 Power Distribution Switches, Load Drivers RoHS
SOIC-8ROHS3 CompliantActive

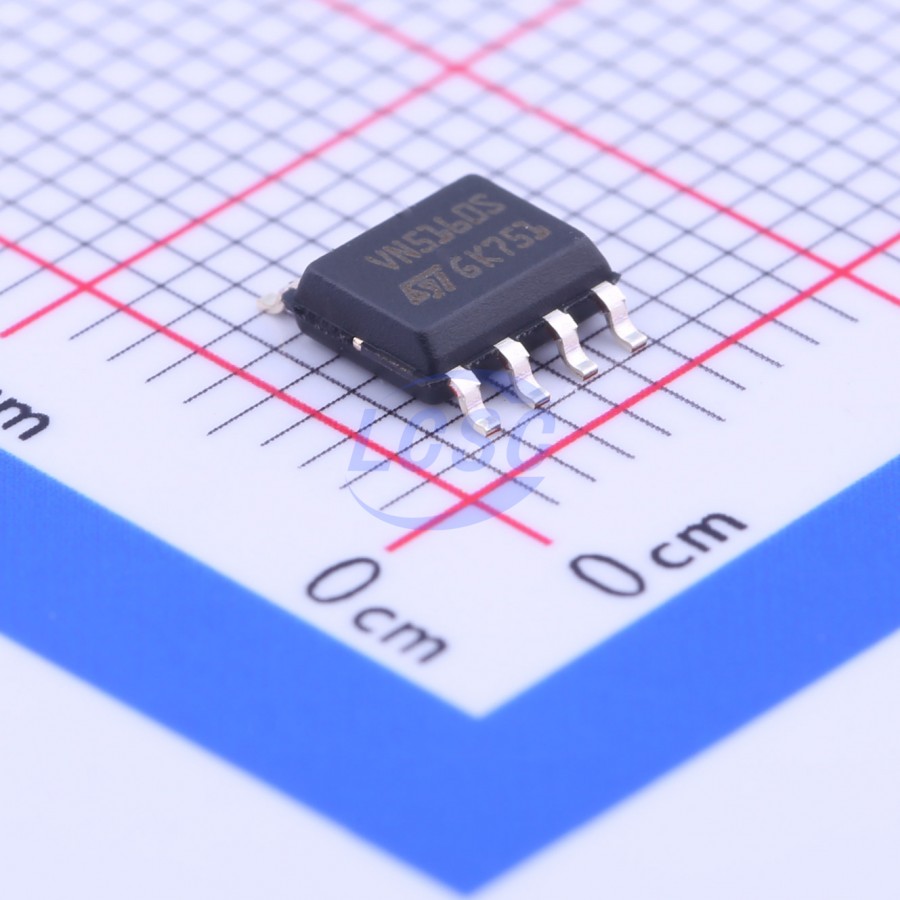

Single channel high side driver for automotive applications
- Manufacturer
- ST
- Manufacturer part #
- VN5160STR-E
- Store part #
- C155580
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,279 in stock
#C155580
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹147.20 | ₹147.20 |
| 10+ | ₹115.88 | ₹1,158.80 |
| 30+ | ₹100.46 | ₹3,013.80 |
| 100+ | ₹84.79 | ₹8,479.00 |
| 500+ | ₹75.66 | ₹37,830.00 |
| 1,000+ | ₹70.89 | ₹70,890.00 |
1 × ₹147.20
₹147.20
excl. GST
₹173.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VN5160STR-E
₹147.20 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse voltage protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 3.8A
- Operating Voltage
- 4.5V~36V
- RDS(on)
- 160mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.235 g
Overview
The VN5160S-E is a monolithic device made using VIPower M0-5 technology. It is intended for driving resistive or inductive loads with one side connected to ground. Active V_CC voltage clamp protects the device against low energy spikes. The device detects open load condition both in on and offstate, when STAT_DIS is left open or driven low. Output shorted to V_CC is detected in the off-state. When STAT_DIS is driven high, STATUS is in a high impedance condition. Output current limitation protects the device in overload condition. In case of long duration overload, the device limits the dissipated power to safe level up to thermal shutdown intervention. Thermal shutdown with automatic restart allows the device to recover normal operation as soon as fault condition disappears.
Applications
- All types of resistive, inductive and capacitive loads
Key features
- Inrush current active management by power limitation
- Very low stand-by current
- 3.0V CMOS compatible input
- Optimized electromagnetic emission
- Very low electromagnetic susceptibility
- In compliance with the 2002/95/EC european directive
- Open drain status output
- On-state open load detection
- Off-state open load detection
- Thermal shutdown indication
- Undervoltage shutdown
- Overvoltage clamp
- Output stuck to Vcc detection
- Load current limitation
- Self limiting of fast thermal transients
- Protection against loss of ground and loss of VCC
- Thermal shutdown
- Reverse battery protection
- Electrostatic discharge protection
