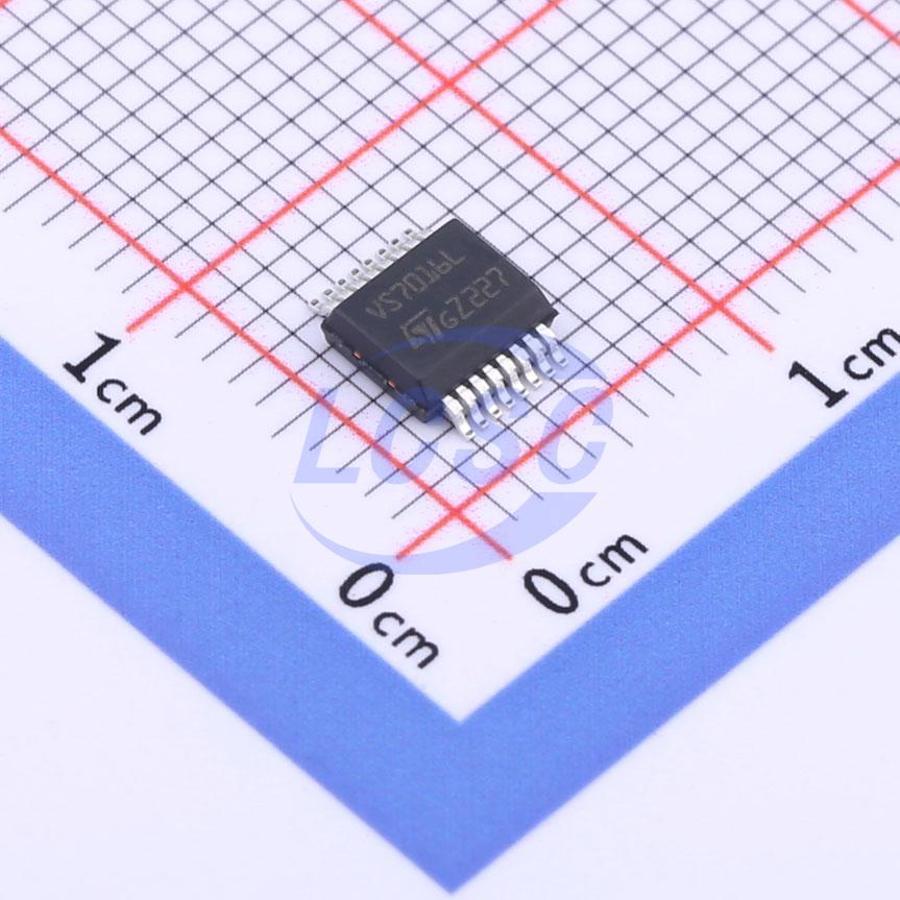

VN7016AJEPTR
1 Active High 77A High Side Switch PowerSSO-16 Power Distribution Switches, Load Drivers RoHS
PowerSSO-16ROHS3 CompliantActive
High-side Driver with MultiSense Analog Feedback for Automotive Applications
- Manufacturer
- ST
- Manufacturer part #
- VN7016AJEPTR
- Store part #
- C2150252
- Package / case
- PowerSSO-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,498 in stock
#C2150252
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹457.11 | ₹457.11 |
| 10+ | ₹433.14 | ₹4,331.40 |
| 30+ | ₹418.88 | ₹12,566.40 |
| 100+ | ₹404.40 | ₹40,440.00 |
| 500+ | ₹397.71 | ₹1,98,855.00 |
| 1,000+ | ₹394.68 | ₹3,94,680.00 |
1 × ₹457.11
₹457.11
excl. GST
₹539.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VN7016AJEPTR
₹457.11 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Latch protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 77A
- Operating Voltage
- 4V~28V
- RDS(on)
- 16mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Overview
The device is a dual channel high-side driver manufactured using ST proprietary VIPower M0 - 7 technology and housed in PowerSSO - 16 package. The device is designed to drive 12 V automotive grounded loads through a 3 V and 5 V CMOS - compatible interface, providing protection and diagnostics. The device integrates advanced protective functions such as load current limitation, overload active management by power limitation and overtemperature shutdown with configurable latch - off. A FaultRST pin unlatches the output in case of fault or disables the latch - off functionality. A dedicated multifunction multiplexed analog output pin delivers sophisticated diagnostic functions including high precision proportional load current sense, supply voltage feedback and chip temperature sense, in addition to the detection of overload and short circuit to ground, short to VCC and OFF - state open - load. A sense enable pin allows OFF - state diagnosis to be disabled during the module low - power mode as well as external sense resistor sharing among similar devices.
Applications
- All types of Automotive resistive, inductive and capacitive loads
- Specially intended for Automotive Headlamps
Key features
- AEC - Q100 qualified
