STDatasheet (PDF)

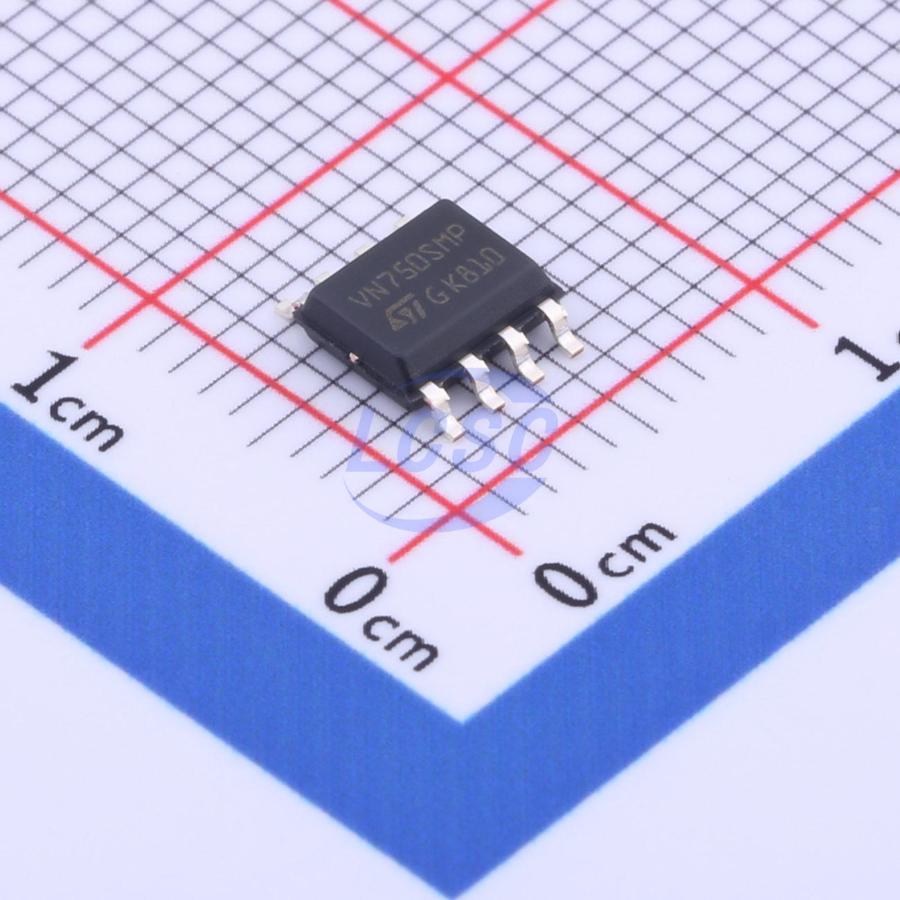

VN750SMPTR-E
1 Active High 6A High Side Switch SO-8 Power Distribution Switches, Load Drivers RoHS
SO-8ROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- VN750SMPTR-E
- Store part #
- C501113
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,445 in stock
#C501113
Stock & price checked 41 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹606.05 | ₹606.05 |
| 10+ | ₹518.70 | ₹5,187.00 |
| 30+ | ₹466.75 | ₹14,002.50 |
| 100+ | ₹414.18 | ₹41,418.00 |
| 500+ | ₹390.06 | ₹1,95,030.00 |
| 1,000+ | ₹379.19 | ₹3,79,190.00 |
1 × ₹606.05
₹606.05
excl. GST
₹715.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VN750SMPTR-E
₹606.05 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse voltage protection;Load dump protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 6A
- RDS(on)
- 55mΩ
- Operating Voltage
- 5.5V~36V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.86 g
Overview
The VN750SMP-E is a monolithic device designed in VIPower™ M0-3 Technology, intended for driving any kind of load with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes. Active current limitation combined with thermal shutdown and automatic restart help protect the device against overload. The device detects open-load condition in on and off-state. The open-load threshold is aimed at detecting the 5W/12V standard bulb as an openload fault in the on-state. Output shorted to VCC is detected in the off-state. Device automatically turns off in case of ground pin disconnection.
Key features
- ECOPACK: lead free and RoHS compliant
- Automotive Grade: compliance with AEC guidelines
- CMOS compatible input
- On-state open-load detection
- Off-state open-load detection
- Shorted load protection
- Undervoltage and overvoltage shutdown
- Protection against loss of ground
- Very low standby current
- Reverse battery protection
- In compliance with the 2002/95/EC european directive
