STDatasheet (PDF)

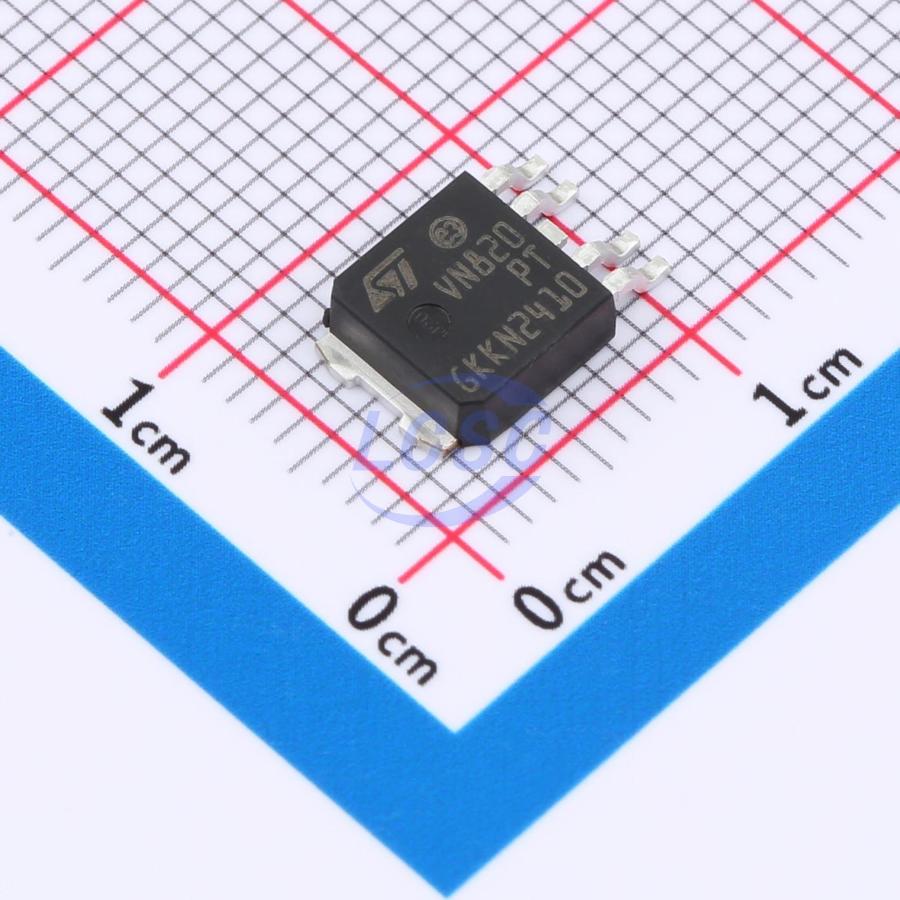

VN820PTTR-E
1 Active High 9A High Side Switch TO-252-5 Power Distribution Switches, Load Drivers RoHS
TO-252-5ROHS3 CompliantActive
High-side driver
- Manufacturer
- ST
- Manufacturer part #
- VN820PTTR-E
- Store part #
- C2149886
- Package / case
- TO-252-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,349 in stock
#C2149886
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹347.62 | ₹347.62 |
| 10+ | ₹288.10 | ₹2,881.00 |
| 30+ | ₹250.72 | ₹7,521.60 |
| 100+ | ₹212.49 | ₹21,249.00 |
| 500+ | ₹195.33 | ₹97,665.00 |
| 1,000+ | ₹187.93 | ₹1,87,930.00 |
1 × ₹347.62
₹347.62
excl. GST
₹410.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VN820PTTR-E
₹347.62 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Over temperature protection;Under-voltage lockout;Overvoltage protection;Reverse voltage protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 9A
- Operating Voltage
- 5.5V~36V
- RDS(on)
- 40mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.66 g
Overview
The VN820-E is a monolithic device designed in VIPower M0-3 technology. The VN820-E is intended for driving any type of load with one side connected to ground. The active VCC pin voltage clamp protects the device against low energy spikes. Active current limitation combined with thermal shutdown and automatic restart protect the device against overload. The device detects the openload condition in both on- and off-state mode. In the off-state the device detects if the output is shorted to VCC. The device automatically turns off where the ground pin becomes disconnected.
Key features
- ECOPACK: lead free and RoHS compliant Automotive Grade: compliance with AEC guidelines
- Very low stadby current
- CMOS compatible input
- On-state open-load detection
- Off-state open-load detection
- Thermal shutdown protection and diagnosis
- Undervoltage shutdown
- Overvoltage clamp
- Output stuck to VCC detection
- Load current limitation
- Reverse battery protection
- Electrostatic discarge protection
