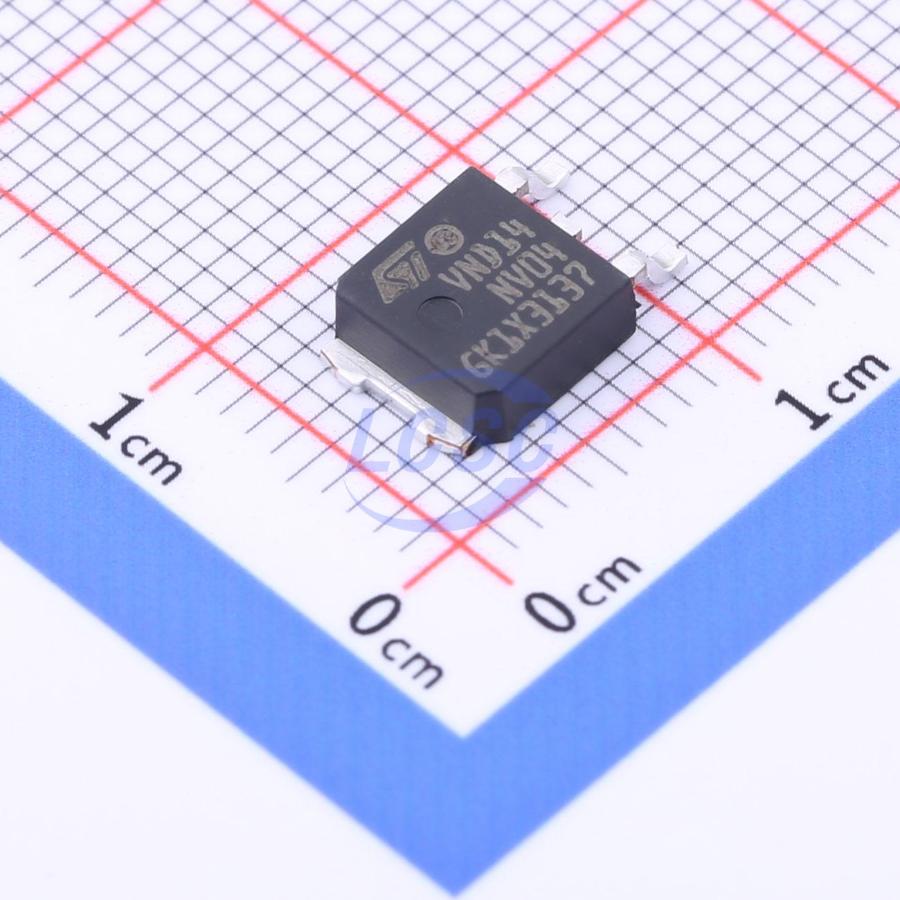

VND14NV04TR-E
1 Active High 12A High Side Switch DPAK Power Distribution Switches, Load Drivers RoHS
DPAKROHS3 CompliantActive
fully autoprotected Power MOSFET
- Manufacturer
- ST
- Manufacturer part #
- VND14NV04TR-E
- Store part #
- C2649436
- Package / case
- DPAK
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,816 in stock
#C2649436
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹257.05 | ₹257.05 |
| 10+ | ₹221.85 | ₹2,218.50 |
| 30+ | ₹202.51 | ₹6,075.30 |
| 100+ | ₹180.56 | ₹18,056.00 |
| 500+ | ₹170.79 | ₹85,395.00 |
| 1,000+ | ₹166.45 | ₹1,66,450.00 |
1 × ₹257.05
₹257.05
excl. GST
₹303.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VND14NV04TR-E
₹257.05 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Over temperature protection;Short-Circuit Protection;Overvoltage protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 12A
- RDS(on)
- 35mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.476 g
Overview
The VNB14NV04, VND14NV04, VND14NV04-1 and VNS14NV04 are monolithic devices made using VIPower M0 technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shutdown, linear current limitation and overvoltage clamp protect the chip in harsh environments. Fault feedback can be detected by monitoring the voltage at the input pin.
Key features
- Linear current limitation
- Thermal shutdown
- Short circuit protection
- Integrated clamp
- Low current drawn from input pin
- Diagnostic feedback through input pin
- ESD protection
- Direct access to the gate of the Power MOSFET (analog driving)
- Compatible with standard Power MOSFET
