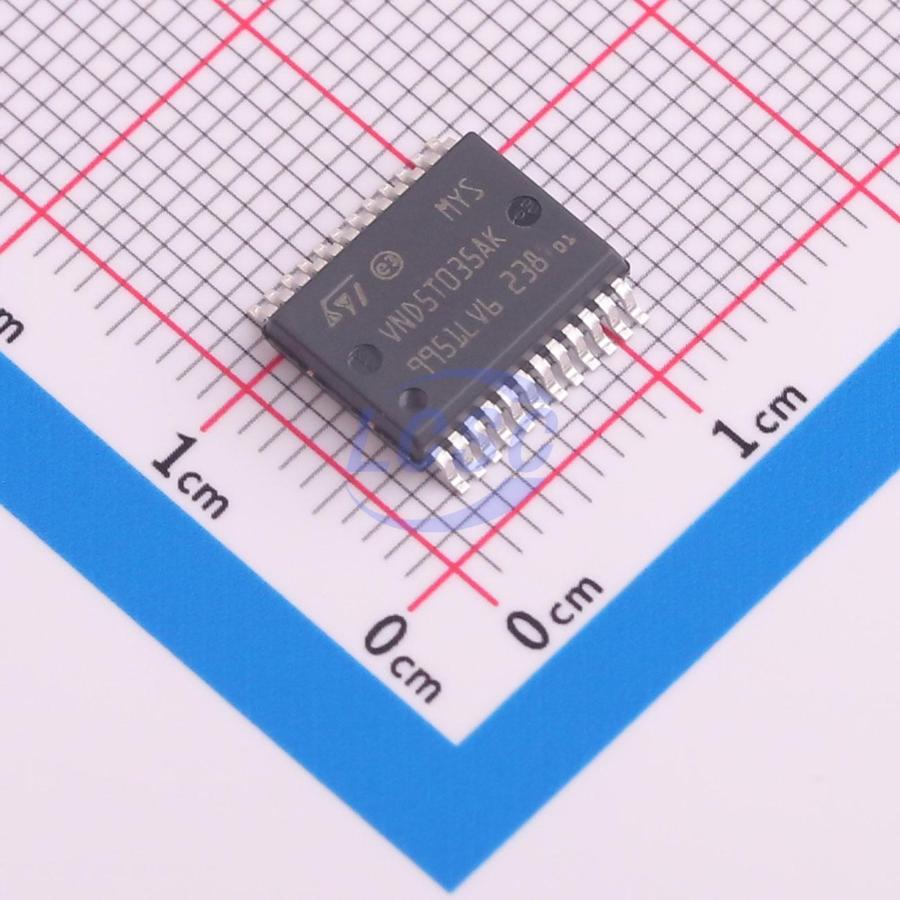

VND5T035AKTR-E

The VND5T035AK - E is a monolithic device made using vIPower technology, intended for driving resistive or inductive loads with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes. The device integrates an analog current sense which delivers a current proportional to the load current. Fault conditions such as overload, overtemperature or short to VCC are reported via the current sense pin. Output current limitation protects the device in overload conditions. The device latches off in case of overload or thermal shutdown. The device is reset by a low level pass on the fault reset standby pin. A permanent low level on the inputs and on the fault reset standby pins disables all outputs and sets the device in standby mode.

Applications

• All types of resistive, inductive and capacitive loads

Key features

• General
• Very low standby current
• 3.0 V CMOS compatible input
• Optimized electromagnetic emission
• Very low electromagnetic susceptibility
• Compliant with European directive 2002/95/EC
• Fault reset standby pin (FR_Stby)
• Diagnostic functions
• Proportional load current sense
• High current sense precision for wide range currents
• Off - state open load detection
• Output short to VCC detection
• Overload and short to ground latch off
• Thermal shutdown latch - off
• Very low current sense leakage
• Protections
• Undervoltage shutdown
• Overvoltage clamp
• Load current limitation
• Self limiting of fast thermal transients
• Protection against loss of ground and loss of Vcc
• Thermal shutdown
• Electrostatic discharge protection
