STDatasheet (PDF)

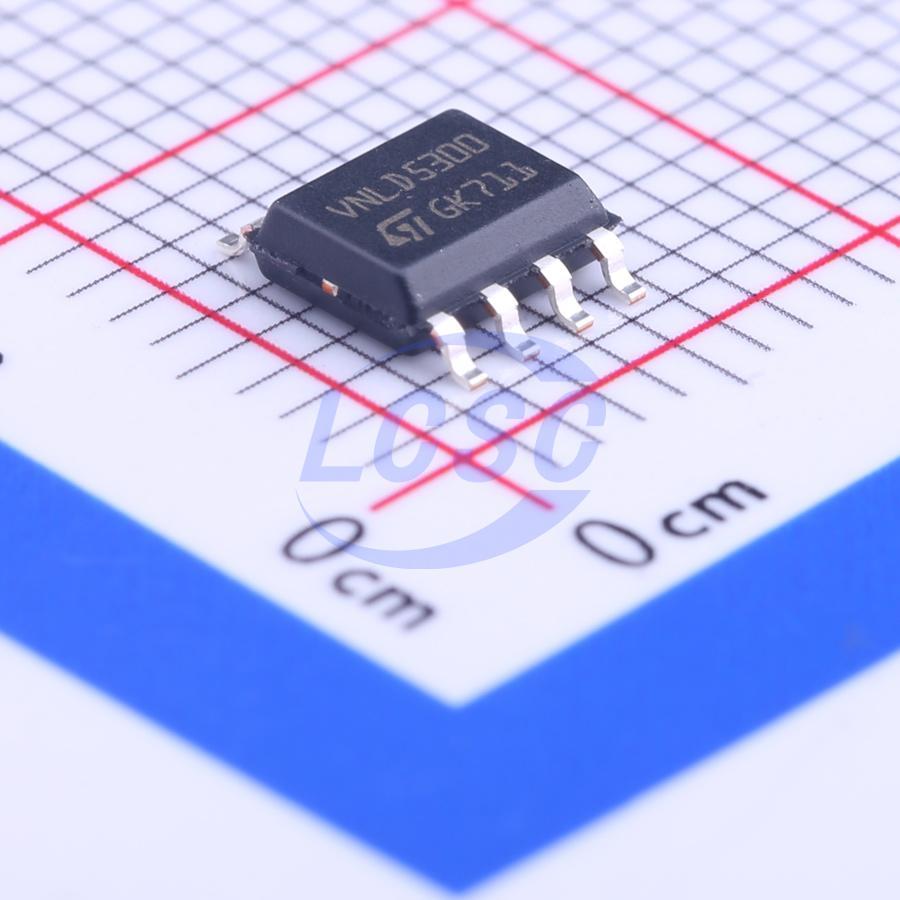

VNLD5300TR-E
2 Active High 2A Low Side Switch SOIC-8 Power Distribution Switches, Load Drivers RoHS
SOIC-8ROHS3 CompliantActive
fully protected low-side driver for automotive applications
- Manufacturer
- ST
- Manufacturer part #
- VNLD5300TR-E
- Store part #
- C123317
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,030 in stock
#C123317
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹201.82 | ₹201.82 |
| 10+ | ₹168.38 | ₹1,683.80 |
| 30+ | ₹149.91 | ₹4,497.30 |
| 100+ | ₹129.05 | ₹12,905.00 |
| 500+ | ₹119.93 | ₹59,965.00 |
| 1,000+ | ₹115.80 | ₹1,15,800.00 |
1 × ₹201.82
₹201.82
excl. GST
₹238.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VNLD5300TR-E
₹201.82 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection
- number of channels
- 2
- Control Input Logic
- Active High
- Maximum Continuous Current
- 2A
- RDS(on)
- 300mΩ
- Operating Voltage
- 4.5V~5.5V
- Type
- Low Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.235 g
Overview
The VNLD5300-E is a monolithic device made using VIPower technology, intended for driving resistive or inductive loads with one side connected to the battery. Built-in thermal shutdown protects the chip from overtemperature and short-circuit. Output current limitation protects the device in an overload condition. In case of long duration overload, the device limits the dissipated power to a safe level up to thermal shutdown intervention. Thermal shutdown, with automatic restart, allows the device to recover normal operation as soon as a fault condition disappears. Fast demagnetization of inductive loads is achieved at turn-off.
Key features
- AEC-Q100 qualified
- Drain current: 2 A
- ESD protection
- Overvoltage clamp
- Thermal shutdown
- Current and power limitation
- Very low standby current
- Very low electromagnetic susceptibility
- Compliant with European directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VNLD5090TR-E#C222209ST · SO-8 | ST | SO-8 | 24 | ₹244.03 · 24 in stock | View |
