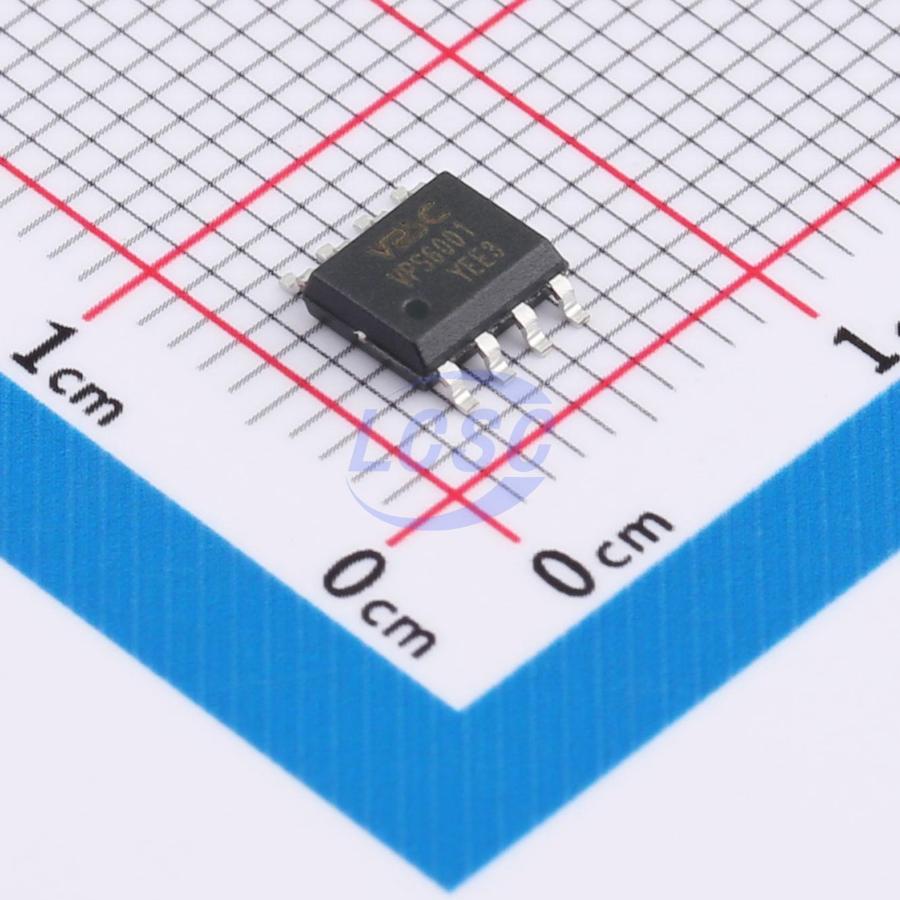

VPS6001

VPS6001 is a linear regulator capable of withstanding ultra-high input voltages, with continuous operation up to 100V input and transient voltage tolerance up to 115V. Combined with the ESOP8 package's superior thermal dissipation, it can deliver wide-range transient high currents at high input voltages, meeting the short-duration dynamic high-current demands of microprocessors. The key feature of the VPS6001 is its dual-stage output: VO1 and VO2. VO1 uses the high-voltage VIN as its input supply, while VO2 uses VO1 as its input supply. This enables integration with a switching power supply — when the switcher is active, energy is fed back to VO1, allowing the ultra-high-voltage linear regulator from VIN to VO1 to shut down automatically, improving overall system efficiency. When the switching power supply is inactive, the ultra-high-voltage linear regulator resumes operation, achieving ultra-low standby power consumption. The VPS6001 is stable with ceramic capacitors, minimizing board space. Integrated thermal shutdown and current limiting provide system protection under fault conditions. The ESOP8 package operates over a temperature range of -40°C to 125°C.

Applications

• BMS auxiliary power supply
• Microprocessors powered from industrial buses (with high-voltage transients)
• Industrial automation
• Telecom infrastructure
• Power over Ethernet (PoE)
• LED lighting
• Bias power supply

Key features

• 100V ultra-high input voltage
• 10V - 100V wide input voltage range
• Dual-stage output voltage
• Second-stage output voltage VO2 enable/disable control
• Quiescent current as low as 10uA with VO1 single-output only
• No sense resistor required, minimal external components
• Selectable output voltage VO1 = 3.3V or 5.0V
• Maximum output current 50mA
• Stable operation with ceramic capacitors: VIN input capacitor ≥0.1uF, VO1 output capacitor ≥20uF, VO2 output capacitor ≥4.7uF
• Built-in current limiting and thermal shutdown protection
• ESOP8 enhanced thermal dissipation package
• -40°C - 125°C operating temperature range
