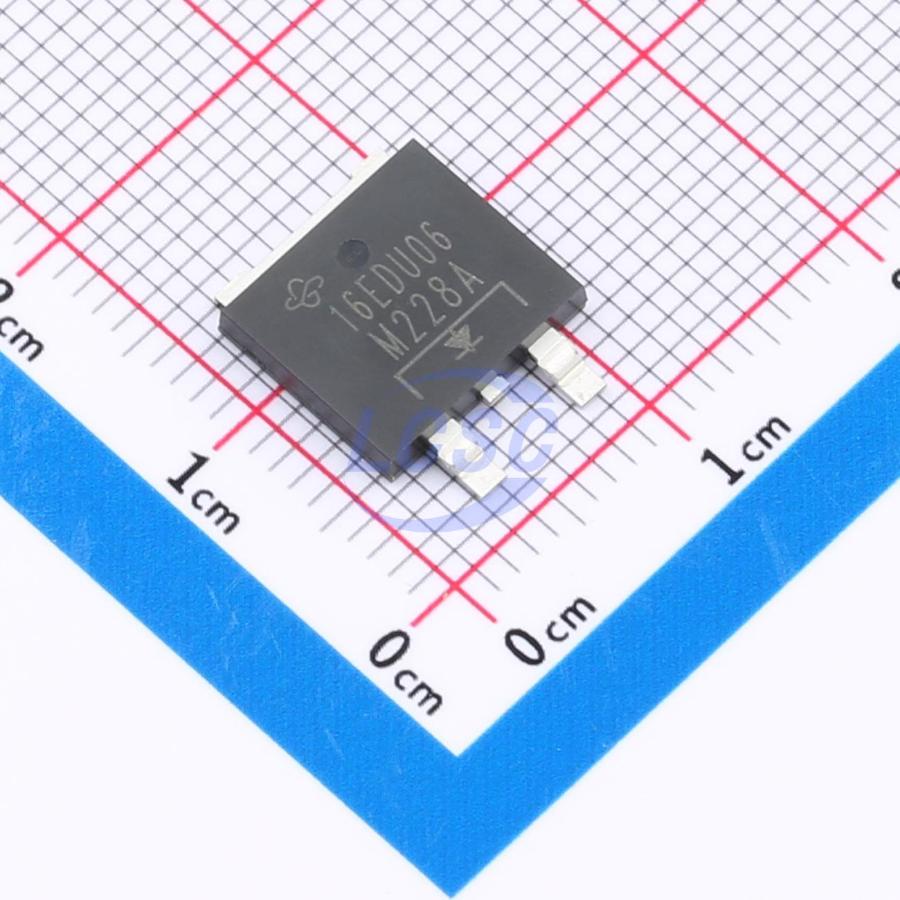

VS-16EDU06HM3/I
Diode Independent 600V 16A Surface Mount TO-263AC
DIODE GP 600V 16A TO-263AC
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-16EDU06HM3/I
- Store part #
- C17399362
- Package / case
- TO-263AC
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C17399362
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹155.81 | ₹155.81 |
| 10+ | ₹152.12 | ₹1,521.20 |
| 30+ | ₹149.72 | ₹4,491.60 |
| 100+ | ₹147.33 | ₹14,733.00 |
1 × ₹155.81
₹155.81
excl. GST
₹183.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
VS-16EDU06HM3/I
₹155.81 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 55ns
- Diode Configuration
- Standalone
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 1.04V@16A
- Reverse Leakage Current (Ir)
- 15uA@600V
- Non-Repetitive Peak Forward Surge Current
- 160A
- Current - Rectified
- 16A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.093 g
Overview
Ultra-fast recovery rectifiers using advanced technology with optimized performance in forward voltage drop, ultra-fast recovery time, and soft recovery. Planar construction and platinum-doped lifetime control ensure optimum overall performance, ruggedness, and reliability. These devices are suitable for power factor correction (PFC), boost, lighting, AC/DC sections of SMPS, freewheeling, and clamping diodes. The highly optimized stored charge and low recovery current minimize switching losses and reduce power dissipation in switching elements and snubbers.
Applications
- Power factor correction, boost, lighting, SMPS AC/DC section, freewheeling and clamp diodes
Key features
- Ultra-fast recovery time, reduced reverse recovery charge Qrr, soft recovery
- Maximum operating junction temperature 175°C
- Suitable for PFC CRM and snubber operation
- Low forward voltage drop
- Low leakage current
- MSL Level 1 per J-STD-020, lead-free peak reflow temperature 260°C
- AEC-Q101 qualified, compliant with JESD 201 Class 2 whisker test
