VISHAYDatasheet (PDF)

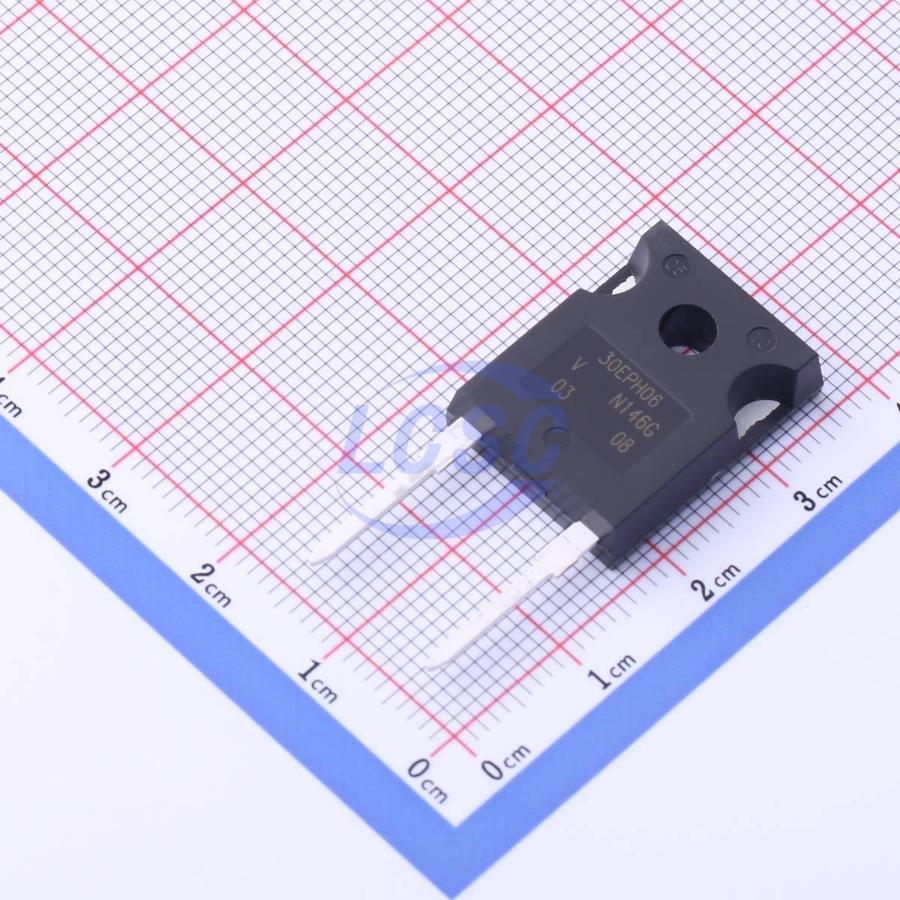

VS-30EPH06-N3
31ns 600V 1 Independent 2V@30A 30A TO-247AC Single Diodes RoHS
TO-247ACROHS3 CompliantActive
Diode 600V 30A TO-247AC
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-30EPH06-N3
- Store part #
- C2941039
- Package / case
- TO-247AC
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
960 in stock
#C2941039
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹392.88 | ₹392.88 |
| 10+ | ₹338.12 | ₹3,381.20 |
| 25+ | ₹292.93 | ₹7,323.25 |
| 100+ | ₹257.93 | ₹25,793.00 |
| 500+ | ₹242.07 | ₹1,21,035.00 |
| 1,000+ | ₹235.12 | ₹2,35,120.00 |
1 × ₹392.88
₹392.88
excl. GST
₹463.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
VS-30EPH06-N3
₹392.88 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 31ns
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Operating Junction Temperature Range
- -65℃~+175℃
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 2V@30A
- Reverse Leakage Current (Ir)
- 300nA@600V
- Non-Repetitive Peak Forward Surge Current
- 300A
- Current - Rectified
- 30A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.6 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ESTF30SS60SS#C41417712MASPOWER · TO-247AC | MASPOWER | TO-247AC | 9 | ₹206.47 · 9 in stock | View |
 | MUR6060PL#C20602190YANGJIE · TO-247AC | YANGJIE | TO-247AC | 255 | ₹227.30 · 255 in stock | View |
 | IDW75E60FKSA1#C672074Infineon · TO-247-3 | Infineon | TO-247-3 | 1,448 | ₹354.92 · 1,448 in stock | View |
 | DH60-18A#C2798152Littelfuse/IXYS · TO-247 | Littelfuse/IXYS | TO-247 | 205 | ₹1,584.15 · 205 in stock | View |
 | DH40-18A#C28688559Littelfuse · TO-247 | Littelfuse | TO-247 | 12 | ₹1,581.49 · 12 in stock | View |
