VISHAYDatasheet (PDF)

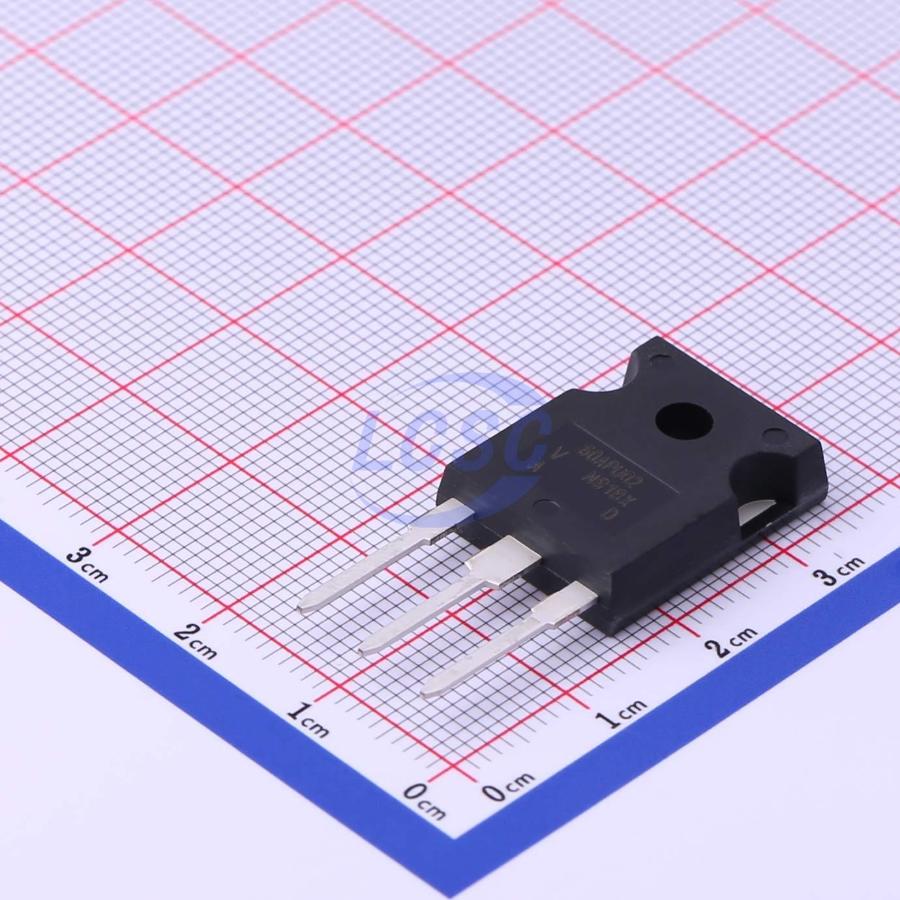

VS-60APU02-N3
28ns 1 Independent 200V 980mV@60A 60A TO-247AC-3 Single Diodes RoHS
TO-247AC-3ROHS3 CompliantActive
Diode 200V 60A TO-247AC-3
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-60APU02-N3
- Store part #
- C506452
- Package / case
- TO-247AC-3
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C506452
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹341.69 | ₹341.69 |
| 10+ | ₹289.87 | ₹2,898.70 |
| 30+ | ₹257.63 | ₹7,728.90 |
| 100+ | ₹224.31 | ₹22,431.00 |
| 500+ | ₹209.51 | ₹1,04,755.00 |
| 1,000+ | ₹202.97 | ₹2,02,970.00 |
1 × ₹341.69
₹341.69
excl. GST
₹403.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
VS-60APU02-N3
₹341.69 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 28ns
- Operating Junction Temperature Range
- -55℃~+175℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 980mV@60A
- Reverse Leakage Current (Ir)
- 50uA@200V
- Non-Repetitive Peak Forward Surge Current
- 800A
- Current - Rectified
- 60A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.12 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ESTF60SS40SS#C41417706MASPOWER · TO-247AC | MASPOWER | TO-247AC | 85 | ₹246.42 · 85 in stock | View |
 | VS-60APU04-N3#C506453VISHAY · TO-247AC-3 | VISHAY | TO-247AC-3 | 300 | ₹574.45 · 300 in stock | View |
 | VS-60EPF12-M3#C2974193VISHAY · TO-247AC | VISHAY | TO-247AC | 16 | ₹1,355.31 · 16 in stock | View |
 | SPT75S60SK#C52741684SPTECH · TO-247 | SPTECH | TO-247 | 30 | ₹215.77 · 30 in stock | View |
 | MUR7560PT-SPT#C52741685SPTECH · TO-247 | SPTECH | TO-247 | 20 | ₹216.20 · 20 in stock | View |
