VISHAYDatasheet (PDF)

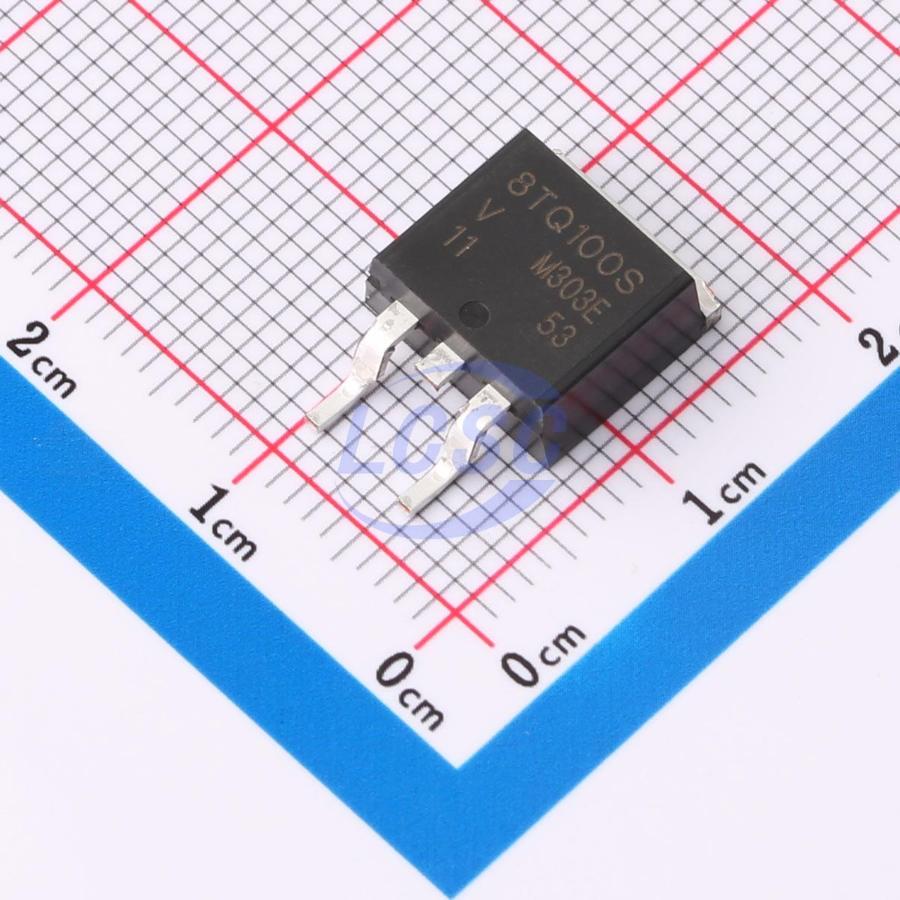

VS-8TQ100S-M3
Diode 1 Independent 100V 8A Surface Mount TO-263AB(D2PAK)
TO-263AB(D2PAK)ROHS3 CompliantActive
DIODE SCHOTTKY 100V TO-263AB(D2PAK)
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-8TQ100S-M3
- Store part #
- C6024691
- Package / case
- TO-263AB(D2PAK)
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
89 in stock
#C6024691
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹158.96 | ₹158.96 |
| 10+ | ₹130.08 | ₹1,300.80 |
| 30+ | ₹114.48 | ₹3,434.40 |
| 100+ | ₹96.55 | ₹9,655.00 |
| 500+ | ₹88.76 | ₹44,380.00 |
| 1,000+ | ₹85.17 | ₹85,170.00 |
1 × ₹158.96
₹158.96
excl. GST
₹187.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per tube
VS-8TQ100S-M3
₹158.96 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 720mV@8A
- Reverse Leakage Current (Ir)
- 550uA@80V
- Non-Repetitive Peak Forward Surge Current
- 850A
- Current - Rectified
- 8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 1,000 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.2 g
Overview
The VS- 8TQ... Schottky rectifier series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175 ℃ junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.
Applications
- switching power supplies
- converters
- freewheeling diodes
- reverse battery protection
Key features
- 175 ℃ TJ operation
- Low forward voltage drop
- High frequency operation
- High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
- Guard ring for enhanced ruggedness and long term reliability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 245 ℃
- Designed and qualified according to JEDEC-JESD 47
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MBRB8H100T4G#C152511onsemi · TO-263-2 | onsemi | TO-263-2 | 11 | ₹239.37 · 11 in stock | View |
 | STPS8H100G-TR#C221484ST · TO-263-2 | ST | TO-263-2 | 17 | ₹94.09 · 17 in stock | View |
 | MBRB10100-E3/8W#C3009869VISHAY · TO-263AB(D2PAK) | VISHAY | TO-263AB(D2PAK) | 244 | ₹155.80 · 244 in stock | View |
 | MBRB10100-M3/8W#C5250087VISHAY · TO-263AB(D2PAK) | VISHAY | TO-263AB(D2PAK) | 22 | ₹124.76 · 22 in stock | View |
 | VB30100S-E3/8W#C2983560VISHAY · TO-263AB(D2PAK) | VISHAY | TO-263AB(D2PAK) | 735 | ₹231.96 · 735 in stock | View |
