VISHAYDatasheet (PDF)

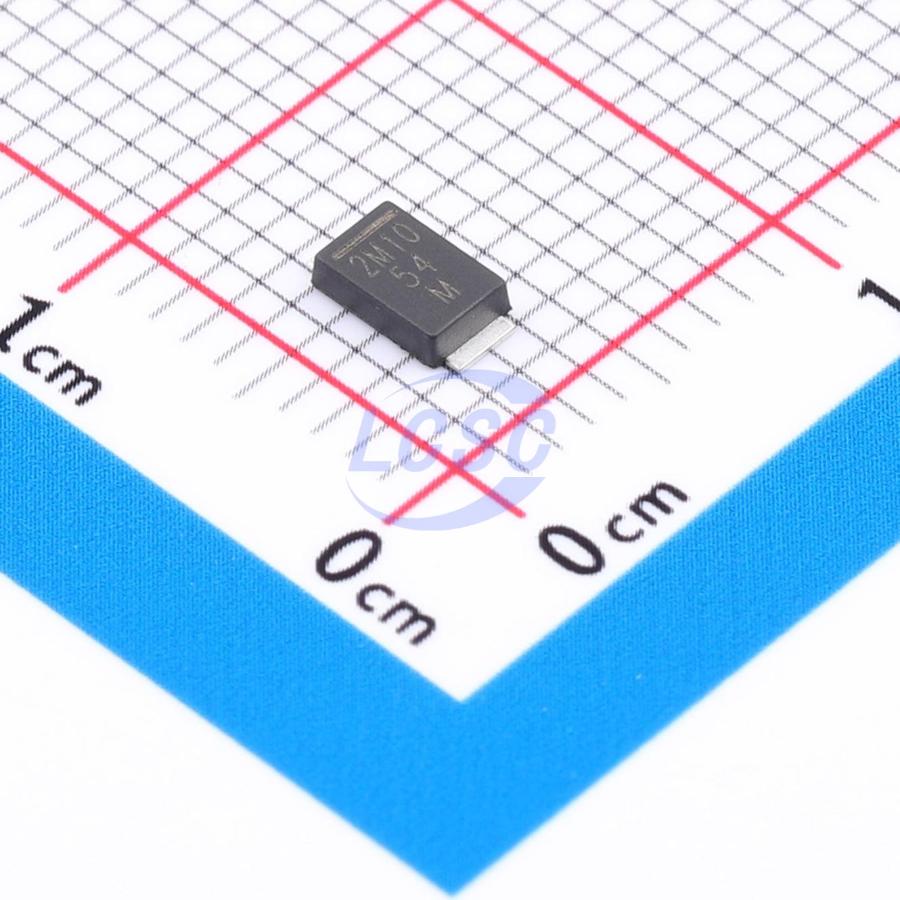

VSS8D2M10HM3/H
1 Independent 100V 560mV@1A 2A DO-221AC(SMA) Single Diodes RoHS
DO-221AC(SMA)ROHS3 CompliantActive
DIODE SCHOTTKY 100V DO-221AC(SMA)
- Manufacturer
- VISHAY
- Manufacturer part #
- VSS8D2M10HM3/H
- Store part #
- C6000155
- Package / case
- DO-221AC(SMA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
913 in stock
#C6000155
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.10 | ₹81.10 |
| 10+ | ₹64.84 | ₹648.40 |
| 30+ | ₹56.81 | ₹1,704.30 |
| 100+ | ₹48.79 | ₹4,879.00 |
| 500+ | ₹44.02 | ₹22,010.00 |
| 1,000+ | ₹41.63 | ₹41,630.00 |
1 × ₹81.10
₹81.10
excl. GST
₹95.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
VSS8D2M10HM3/H
₹81.10 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 560mV@1A
- Reverse Leakage Current (Ir)
- 150uA@100V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.055 g
Overview
Applications
- For use in high-frequency inverters, freewheeling, DC/DC converters, and polarity protection in commercial, industrial, and automotive applications.
Key features
- Low-profile package
- MSL Level 1 per J-STD-020, lead-free peak reflow temperature 260°C
- AEC-Q101 qualified parts available
- Automotive ordering code: base part number HM3
- Compatible with SOD-128 package outline
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VSSAF510HM3/H#C6326606VISHAY · DO-221AC(SLIMSMA) | VISHAY | DO-221AC(SLIMSMA) | 310 | ₹39.31 · 310 in stock | View |
 | VSSAF5M15-M3/H#C6750676VISHAY · DO-221AC(SLIMSMA) | VISHAY | DO-221AC(SLIMSMA) | 1 | ₹32.74 · 1 in stock | View |
 | VSSAF3M10HM3/H#C3759644VISHAY · DO-221AC(SlimSMA) | VISHAY | DO-221AC(SlimSMA) | 90 | ₹44.29 · 90 in stock | View |
 | VSSAF3M10-M3/H#C6750644VISHAY · DO-221AC(SLIMSMA) | VISHAY | DO-221AC(SLIMSMA) | On request | ₹86.41 · 0 in stock | View |
 | VSSAF5M10-M3/H#C5241914VISHAY · DO-221AC | VISHAY | DO-221AC | 10,810 | ₹35.23 · 10,810 in stock | View |
