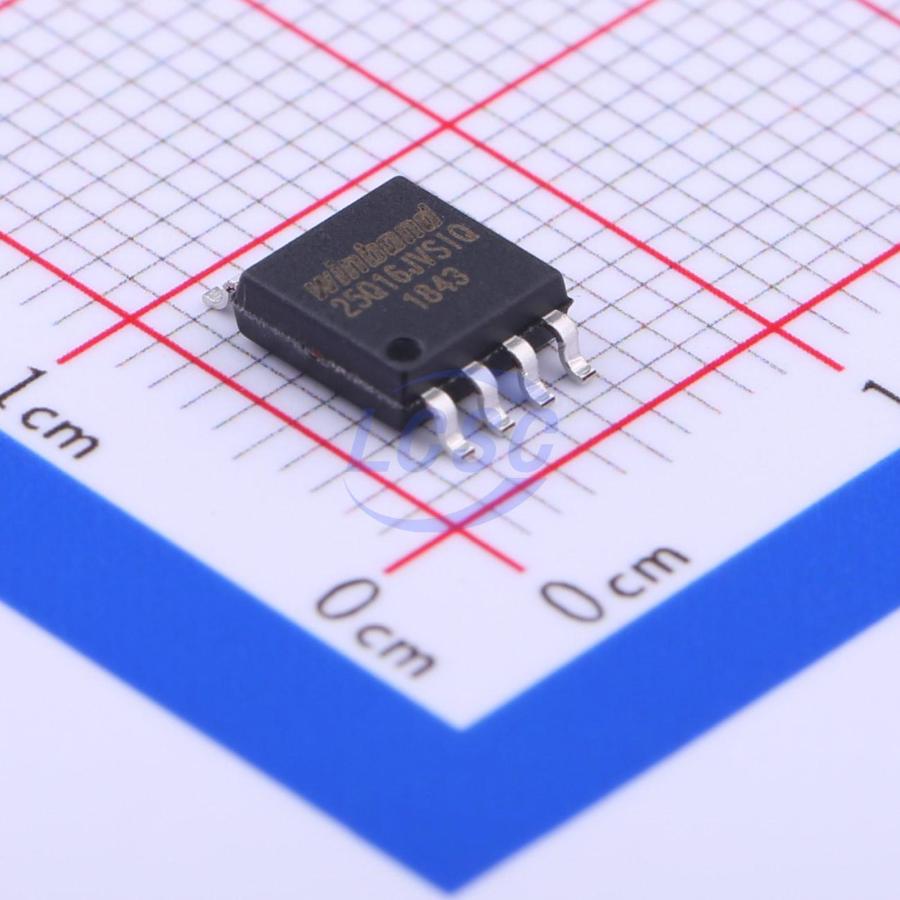

W25Q16JVSSIQ
16Mbit 2.7V~3.6V 133MHz SPI SOIC-8-208mil Memory RoHS
SPI Flash Serial Flash Memory with Dual/Quad SPI
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,685 in stock
#C82317
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹141.19 | ₹141.19 |
| 10+ | ₹124.89 | ₹1,248.90 |
| 30+ | ₹109.69 | ₹3,290.70 |
| 90+ | ₹98.39 | ₹8,855.10 |
| 540+ | ₹93.62 | ₹50,554.80 |
| 990+ | ₹91.23 | ₹90,317.70 |
1 × ₹141.19
₹141.19
excl. GST
₹166.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 90 per tube
W25Q16JVSSIQ
₹141.19 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Power-on reset;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 16Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 133MHz
- Data Retention - TDR (Year)
- 20 Years
- Page Programming Time (Tpp)
- 3ms
- Standby Supply Current
- 10uA
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 90 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.267 g
Overview
The W25Q16JV (16M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data. The device operates on a single 2.7V to 3.6V power supply with current consumption as low as 1μA for power-down. The W25Q16JV array is organized into 8,192 programmable pages of 256-bytes each. Up to 256 bytes can be programmed.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | W25Q16JVSSIQ#C131025Winbond · SOIC-8-208mil | Winbond | SOIC-8-208mil | 738 | ₹161.00 · 738 in stock | View |
| W25Q16RVSSJQ#C31137404Winbond · SOIC-8-208mil | Winbond | SOIC-8-208mil | 43 | ₹244.36 · 43 in stock | View | |
 | GD25Q16ESIG#C2693492GigaDevice Semicon Beijing · SOP-8-208mil | GigaDevice Semicon Beijing | SOP-8-208mil | 3,000 | ₹68.36 · 3,000 in stock | View |
 | MX25L1636EM2I-08G#C2802965MXIC · SOIC-8-208mil | MXIC | SOIC-8-208mil | 22 | ₹495.65 · 22 in stock | View |
 | IS25LP016D-JBLE-TR#C2062840ISSI · SOIC-8-208mil | ISSI | SOIC-8-208mil | 679 | ₹268.64 · 679 in stock | View |
