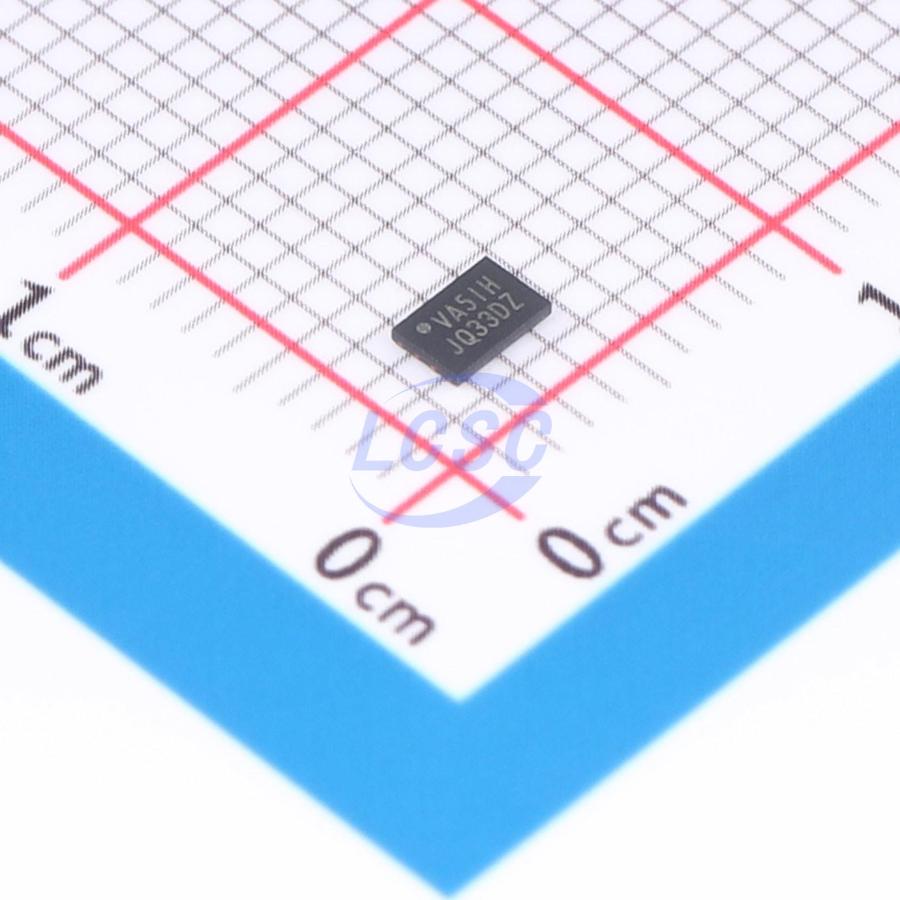

W25Q32RVXHJQ
32Mbit 2.7V~3.6V 133MHz SPI XSON-8(2x3) Memory RoHS
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,826 in stock
#C32246052
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹513.91 | ₹513.91 |
| 10+ | ₹470.76 | ₹4,707.60 |
| 30+ | ₹443.79 | ₹13,313.70 |
| 100+ | ₹415.96 | ₹41,596.00 |
| 500+ | ₹403.45 | ₹2,01,725.00 |
| 1,000+ | ₹398.05 | ₹3,98,050.00 |
1 × ₹513.91
₹513.91
excl. GST
₹606.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
W25Q32RVXHJQ
₹513.91 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Features
- Write enable latch;Power-on reset;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 32Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 133MHz
- Data Retention - TDR (Year)
- 20 Years
- Block Erase Time(tBE)
- 1.2s@(64KB)
- Page Programming Time (Tpp)
- 2ms
- Standby Supply Current
- 60uA
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- 3A991B1A
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.094 g
Overview
The W25Q32RV (32M-bit) serial flash memory provides a storage solution for systems constrained by space, pin count, and power. The 25Q series offers flexibility and performance far exceeding that of ordinary serial flash devices. They are well-suited for code shadowing from RAM, direct code execution from Dual/Quad SPI (XIP), and storage of voice, text, and data. The device operates from a single 2.7V to 3.6V supply voltage with a power-down current of 0.1μA. All devices are available in space-saving package options. The W25Q32RV array is organized as 16,384 programmable pages of 256 bytes each. Up to 256 bytes can be programmed at a time. Pages can be erased in groups of 16 (4KB Sector Erase), groups of 128 (32KB Block Erase), groups of 256 (64KB Block Erase), or the entire chip (Chip Erase). The W25Q32RV has 1,024 erasable sectors and 64 erasable blocks respectively. The small 4KB sectors provide greater flexibility for applications requiring data and parameter storage. The W25Q32RV supports Standard SPI, Dual/Quad I/O SPI, and Quad Peripheral Interface (QPI): Serial Clock, Chip Select, Serial Data I/O0 (DI), I/O1 (DO), I/O2 (WP), and I/O3 (/HOLD). SPI clock frequencies up to 133MHz are supported, and when using Fast Read Dual/Quad I/O and QPI instructions, equivalent Dual I/O clock rates of 266MHz (133MHz × 2) and Quad I/O clock rates of 532MHz (133MHz × 4) can be achieved.
Key features
- Single supply voltage: 2.7V to 3.6V
- Low power consumption: 4mA operating current (typical), 0.1μA power-down current (typical)
- Flexible architecture: 4KB sector, 32KB block, 64KB block, and full chip erase
- High reliability: 100,000 program/erase cycles, 20-year data retention
- Fast program time: 256-byte page program time 0.6ms (typical)
- Fast erase time: 4KB sector erase time 30ms (typical), 64KB block erase time 0.3s (typical)
- Standard, dual, and quad SPI operation support
- QPI (Quad Peripheral Interface) mode support
- Software and hardware reset support
- Flexible write protection mechanism
- Security register: 256-byte one-time programmable (OTP) area
- 64-bit ID per device
- Extended temperature range: -40℃ to +85℃
- Compact package options
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GD25Q32EEIGR#C2973794GigaDevice Semicon Beijing · USON-8-EP(2x3) | GigaDevice Semicon Beijing | USON-8-EP(2x3) | 1,171 | ₹146.79 · 1,171 in stock | View |
