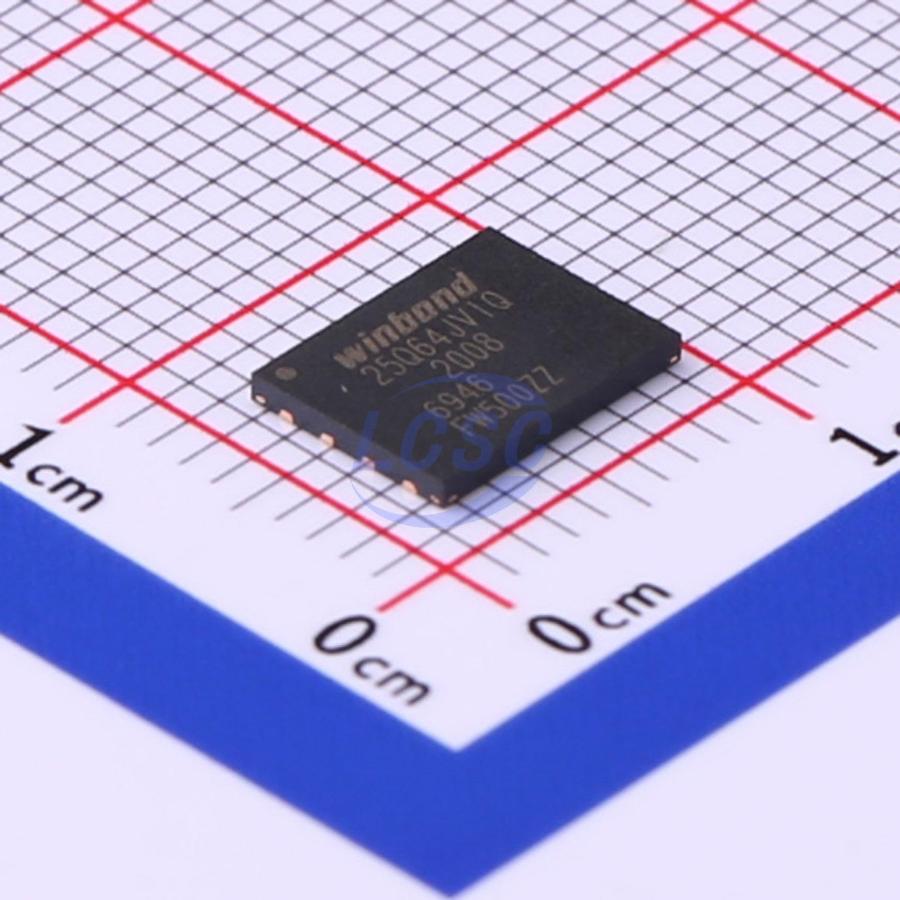

W25Q64JVZEIQ
64Mbit 2.7V~3.6V 133MHz SPI WSON-8-EP(6x8) Memory RoHS
SPI Flash 64M-BIT Serial Flash Memory with Dual, Quad SPI
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,366 in stock
#C571262
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹416.94 | ₹416.94 |
| 10+ | ₹366.64 | ₹3,666.40 |
| 30+ | ₹335.20 | ₹10,056.00 |
| 100+ | ₹302.90 | ₹30,290.00 |
| 500+ | ₹288.37 | ₹1,44,185.00 |
| 1,000+ | ₹281.87 | ₹2,81,870.00 |
1 × ₹416.94
₹416.94
excl. GST
₹491.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
W25Q64JVZEIQ
₹416.94 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Power-on reset;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 64Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 133MHz
- Data Retention - TDR (Year)
- 20 Years
- Block Erase Time(tBE)
- 120ms@(32KB)
- Page Programming Time (Tpp)
- 400us
- Standby Supply Current
- 10uA
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- 3A991B1A
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
The W25Q64JV (64M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data. The device operates on 2.7V to 3.6V power supply with current consumption as low as 1μA for power-down.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IS25LP064A-JLLE#C1349830ISSI · WSON-8-EP(6x8) | ISSI | WSON-8-EP(6x8) | 6 | ₹955.22 · 6 in stock | View |
 | W25Q64JVZEIQ#C2682313Winbond · WSON-8-EP(6x8) | Winbond | WSON-8-EP(6x8) | On request | Price on request | Quote |
| W25Q64JVZEIM TR#C2456256Winbond · WSON-8-EP(6x8) | Winbond | WSON-8-EP(6x8) | On request | Price on request | Quote | |
| W25Q64JVZEIM#C2641180Winbond · WSON-8-EP(6x8) | Winbond | WSON-8-EP(6x8) | On request | Price on request | Quote | |
| MX25L6433FZ2I-08GTR#C2803036MXIC · WSON-8(6x8) | MXIC | WSON-8(6x8) | On request | Price on request | Quote | |
