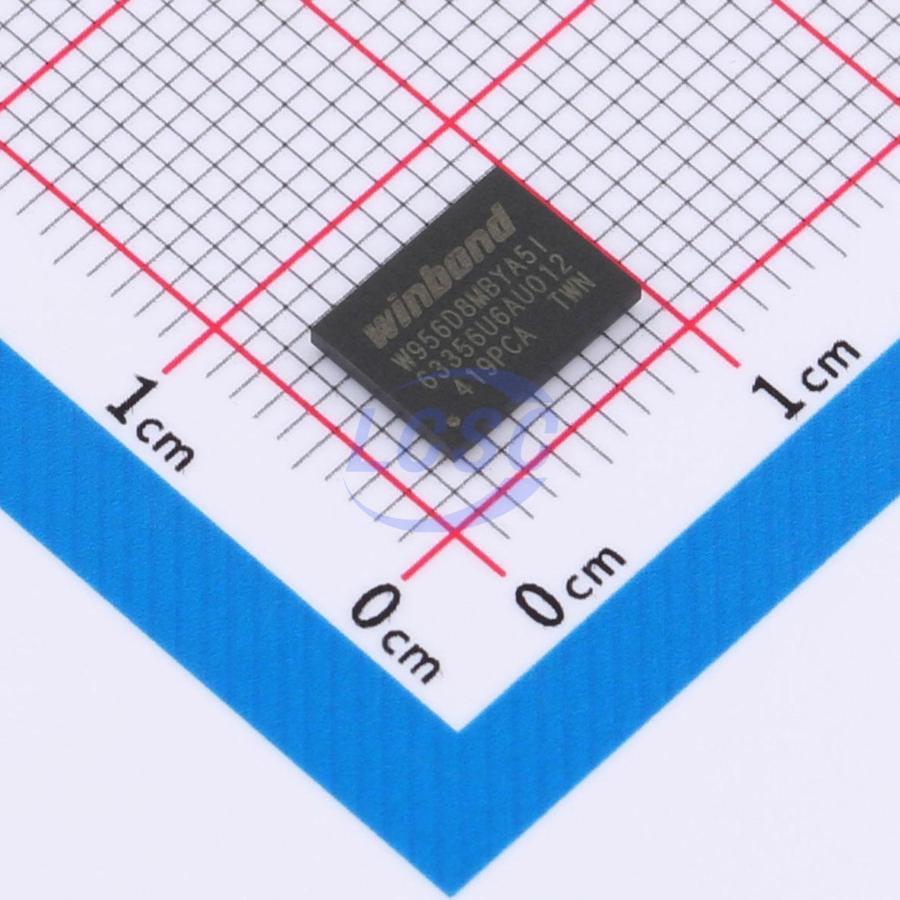

W956D8MBYA5I

Key features

• Interface: HyperBus
• Power supply: 1.7V~2.0V or 2.7V~3.6V
• Maximum clock rate: 200MHz
• Double-Data Rate (DDR) Up to 400 MT/s
• Clock:
• Single ended clock (CK)
• Differential clock (CK/CK#)
• Chip Select (CS#)
• 8-bit data bus (DQ[7:0])
• Hardware reset (RESET#)
• Read-Write Data Strobe (RWDS)
• Bidirectional Data Strobe / Mask
• Output at the start of all transactions to indicate refresh latency
• Output during read transactions as Read Data Strobe
• Input during write transactions as Write Data Mask
• Configurable output drive strength
• Power Saving Modes:
• Hybrid Sleep Mode
• Deep Power Down
• Configurable Burst Characteristics:
• Linear burst
• Wrapped burst lengths:
• 16 bytes (8 clocks)
• 32 bytes (16 clocks)
• 64 bytes (32 clocks)
• 128 bytes (64 clocks)
• Hybrid burst - one wrapped burst followed by linear burst
• 64 Mbit only
• Array Refresh Modes:
• Full Array Refresh
• Partial Array Refresh
• Support package: 24 balls TFBGA
• Operating temperature range: -40℃ ≤ TCASE ≤ 85℃
