waferbestDatasheet (PDF)

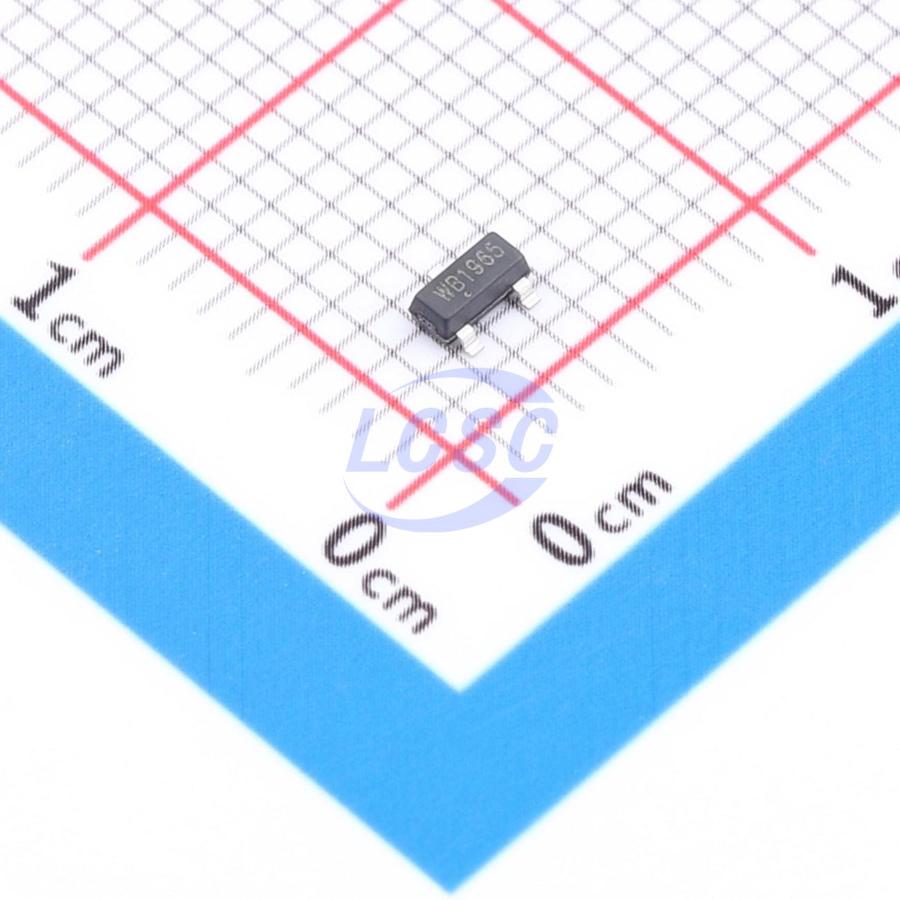

WB1965J
3.6V~38V SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- waferbest
- Manufacturer part #
- WB1965J
- Store part #
- C51933788
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,580 in stock
#C51933788
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.12 | ₹81.20 |
| 100+ | ₹6.46 | ₹646.00 |
| 300+ | ₹5.62 | ₹1,686.00 |
| 3,000+ | ₹4.99 | ₹14,970.00 |
| 6,000+ | ₹4.50 | ₹27,000.00 |
| 9,000+ | ₹4.25 | ₹38,250.00 |
10 × ₹8.12
₹81.20
excl. GST
₹95.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WB1965J
₹81.20 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- standby current
- 150uA
- Voltage - Supply
- 3.6V~38V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
This device is a 38V overvoltage protection device with a 200mΩ on-resistance. It features an internal overvoltage threshold of 6.1V and an internal overcurrent threshold of 1.7A. It integrates a charge pump, power MOSFET, voltage reference, gate driver, and logic and protection circuitry. The device responds extremely fast to input surges, capable of turning off the switch within 0.1μs and withstanding voltage transients up to 20V. The package type is SOT23.
Applications
- All electrical equipment with DC power hot-plug capability
- Automotive cameras
- E-cigarettes
- Mobile phones
Key features
- Maximum input voltage rating: 38V
- Supports 38V hot-swap
- 200mΩ on-resistance
- Input overvoltage protection response time: 0.1µs
- Short-circuit protection and over-temperature protection
