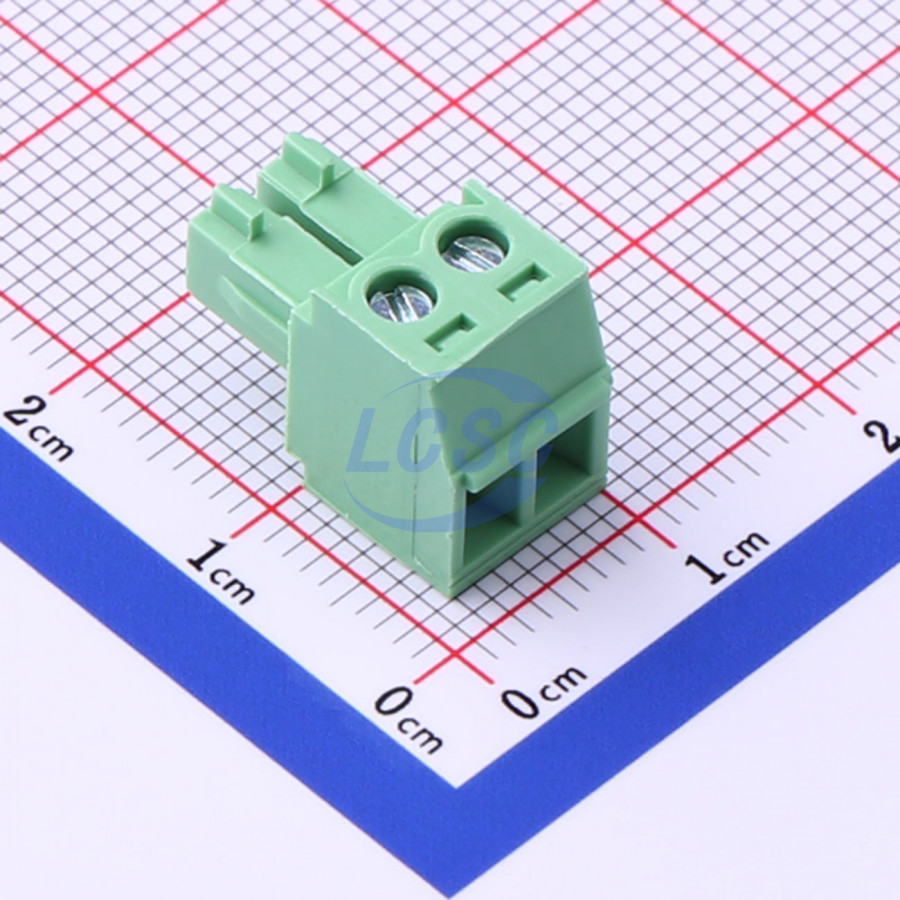

WJ15EDGK-3.81-02P-14-00A
2 Position Male Plug 3.81mm Pitch
PopularP=3.81mmRoHSActive
TERM BLOCK PLUG 2POS 3.81mm
- Manufacturer
- KANGNEX
- Manufacturer part #
- WJ15EDGK-3.81-02P-14-00A
- Store part #
- C8466
- Package / case
- P=3.81mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,28,355 in stock
#C8466
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.94 | ₹99.70 |
| 50+ | ₹15.96 | ₹798.00 |
| 150+ | ₹14.01 | ₹2,101.50 |
| 500+ | ₹10.93 | ₹5,465.00 |
| 2,500+ | ₹10.46 | ₹26,150.00 |
| 5,000+ | ₹10.18 | ₹50,900.00 |
5 × ₹19.94
₹99.70
excl. GST
₹117.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 500 per bag
WJ15EDGK-3.81-02P-14-00A
₹99.70 for 5 + GST
Specifications
- Wire Gauge - mm2
- 1.5
- Wire Gauge - AWG
- 16~28
- Number of Positions or Pins
- 1x2P
- Number of Pins
- 2P
- Operating Temperature
- -40℃~+105℃
- Number of PINs Per Row
- 2
- Number of Rows
- 1
- Current Rating
- 8A
- Outlet Direction (Vertical Basis)
- Top Entry
- Connection Type
- Screw Connection (M2)
- Voltage Rating
- 300V
- Pitch
- 3.81mm
- Connector Type
- Male Plug
- Termination Style
- Without fixing device
- Mounting Type
- Free-hanging
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 500 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.56 g
