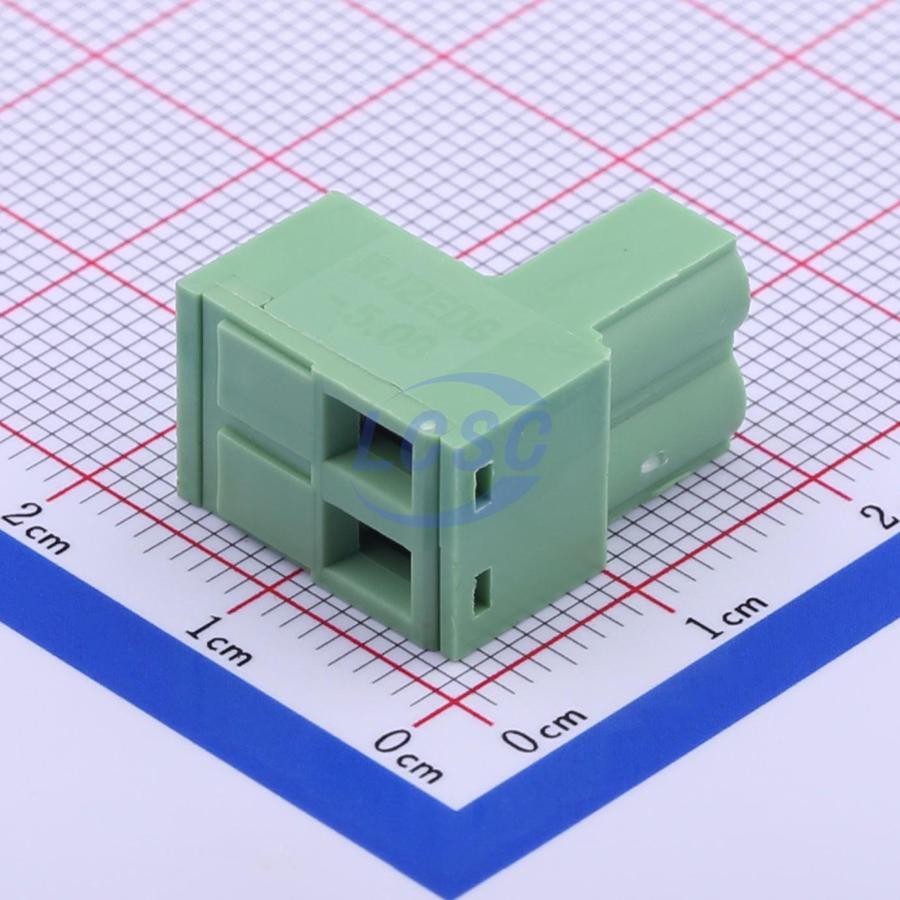

WJ2EDGK-5.08-02P-14-00A KANGNEX
KANGNEX

WJ2EDGK-5.08-02P-14-00A

2 Position Male Plug 5.08mm Pitch

PopularP=5.08mmRoHSActive

TERM BLOCK PLUG 2POS 5.08mm

Manufacturer
KANGNEX
Manufacturer part #
WJ2EDGK-5.08-02P-14-00A
Store part #
C71370
Package / case
P=5.08mm
Category
Headers, Plugs and Sockets
Packaging
Bag-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

95,545 in stock

#C71370

Stock & price checked 6 days ago

QuantityUnit pricePack price
5+₹25.97₹129.85
50+₹20.52₹1,026.00
250+₹16.79₹4,197.50
500+₹14.42₹7,210.00
2,500+₹13.76₹34,400.00
5,000+₹13.38₹66,900.00

5 × ₹25.97

₹129.85

excl. GST

₹153.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 250 per bag

WJ2EDGK-5.08-02P-14-00A

₹129.85 for 5 + GST

Specifications

Wire Gauge - mm2
2.5
Wire Gauge - AWG
14~28
Number of Positions or Pins
1x2P
Number of Pins
2P
Operating Temperature
-40℃~+105℃
Number of PINs Per Row
2
Number of Rows
1
Current Rating
10A
Outlet Direction (Vertical Basis)
Top Entry
Connection Type
Screw Connection (M2.5)
Voltage Rating
300V
Pitch
5.08mm
Connector Type
Male Plug
Termination Style
Without fixing device
Mounting Type
Free-hanging

Packaging & compliance

RoHS
RoHS
Lifecycle
Active
Packaging
Bag-packed
Standard pack
250 / Bag
Sold per
Piece
Minimum order
5 (multiples of 5)
Unit weight
3.048 g

Alternatives

Similar parts — check the datasheet before substituting.

WJ2EDGKA-5.08-02P-14-00A#C8409KANGNEX · P=5.08mm₹38.64 · 2,085 in stockView
WJ2EDGKB-5.08-02P-14-00A#C8414KANGNEX · P=5.08mm₹36.70 · 345 in stockView

Questions about WJ2EDGK-5.08-02P-14-00A

What are the rated voltage and current specifications of the WJ2EDGK-5.08-02P-14-00A?

The WJ2EDGK-5.08-02P-14-00A is a plug-in terminal block with a UL-rated voltage of 300 V and a rated current of 10 A. Under IEC specifications, it is rated for 320 V and 15 A. The connector has a 5.08 mm pitch.

What are the pitch and pin configuration of the WJ2EDGK-5.08-02P-14-00A?

The WJ2EDGK-5.08-02P-14-00A features a 5.08 mm pitch and a 2-position (2P) configuration. According to the manufacturer's part-number coding, "02P" indicates the number of poles. It is part of the WJ2EDGK pluggable terminal block series.

What wire sizes and screw specifications does the WJ2EDGK-5.08-02P-14-00A support?

The connector uses an M2.5 zinc-plated steel screw and supports wire sizes from 24 AWG to 12 AWG, with a maximum conductor cross-section of 2.5 mm². The contact system incorporates a clamp and cage made from nickel-plated copper alloy to provide secure conductor termination.

What are the operating temperature range and housing material of the WJ2EDGK-5.08-02P-14-00A?

The connector operates over a temperature range of −40°C to +105°C. Its housing is manufactured from PA66 thermoplastic with a UL94V-0 flammability rating. The maximum soldering temperature is +250°C for up to 5 seconds.

What installation specifications are provided for the WJ2EDGK-5.08-02P-14-00A?

The manufacturer specifies a strip length of 7–8 mm for conductor preparation and a recommended tightening torque of 0.4 N·m (4.08 kgf·cm) for the screw terminals. These values are provided to support proper installation of the connector.
