WILLSEMIDatasheet (PDF)

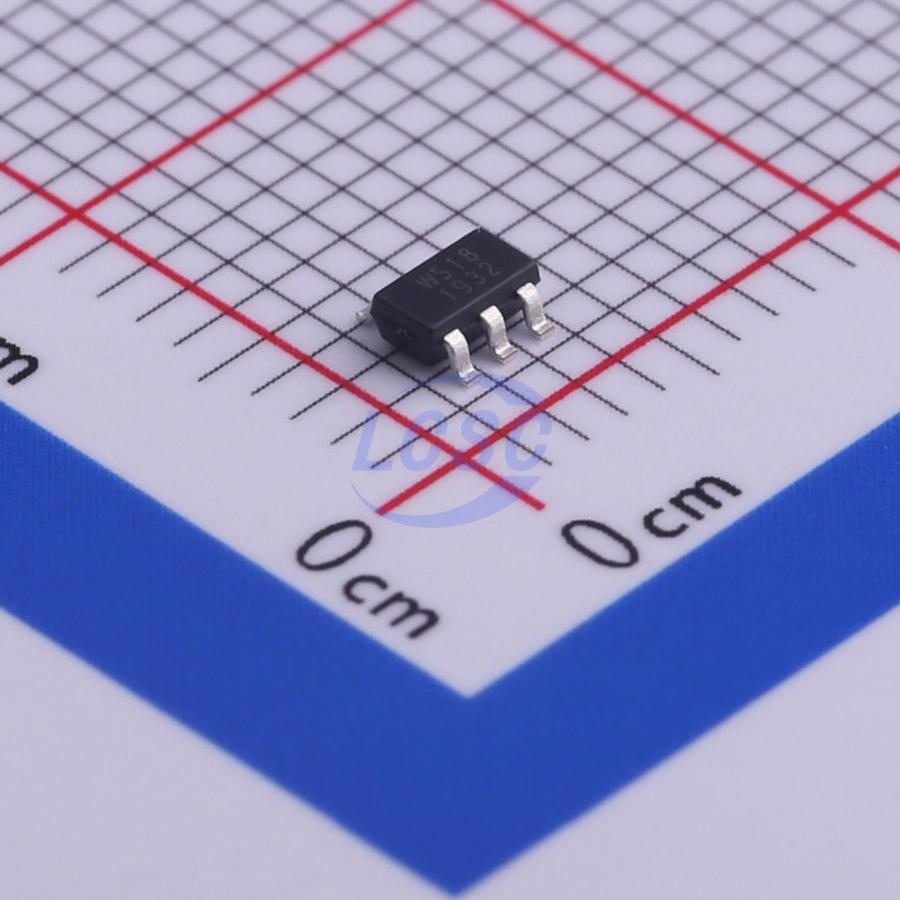

WL2803E18-5/TR
1.8V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5LROHS CompliantActive
Ultra low dropout, 500mA, CMOS LDO
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WL2803E18-5/TR
- Store part #
- C467850
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,510 in stock
#C467850
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.45 | ₹67.25 |
| 50+ | ₹10.64 | ₹532.00 |
| 150+ | ₹9.23 | ₹1,384.50 |
| 500+ | ₹8.18 | ₹4,090.00 |
| 3,000+ | ₹7.33 | ₹21,990.00 |
| 6,000+ | ₹6.91 | ₹41,460.00 |
5 × ₹13.45
₹67.25
excl. GST
₹79.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WL2803E18-5/TR
₹67.25 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 150uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Features
- Enable control;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The WL2803E series are ultra low dropout, Low quiescent current, high PSRR CMOS LDO. The dropout voltage is 130mV (Typ.) at 500mA load current. Using CMOS construction, the quiescent current consumed by the WL2803E is typically 150uA over the entire input voltage range, making it attractive for consumer, networking applications that demand high output current. The WL2803E series are available in wide output voltage range version from 1.2V to 3.3V with 0.1V step. The WL2803E series offer thermal shutdown (OTP) and current limit functions, to assure the stability of chip and power system at wrong condition, and it uses trimming technique to guarantee output voltage accuracy within ±2%. The WL2803E regulators are available in SOT-23-5L packages. Standard products are Pb-free and Halogen-free.
Applications
- LCD TV
- STB
- Computer, Graphic card
- Network communication equipments
- Others portable electronics devices
Key features
- Input voltage : 2.5V~5.5V
- Output voltage : 1.2V~3.3V
- Output current : 500mA
- PSRR : 65dB @ 1KHz
- Dropout voltage : 130mV @ IOUT=0.5A
- Output noise : 100uV
- Quiescent current : 150μA Typ.
