WILLSEMIDatasheet (PDF)

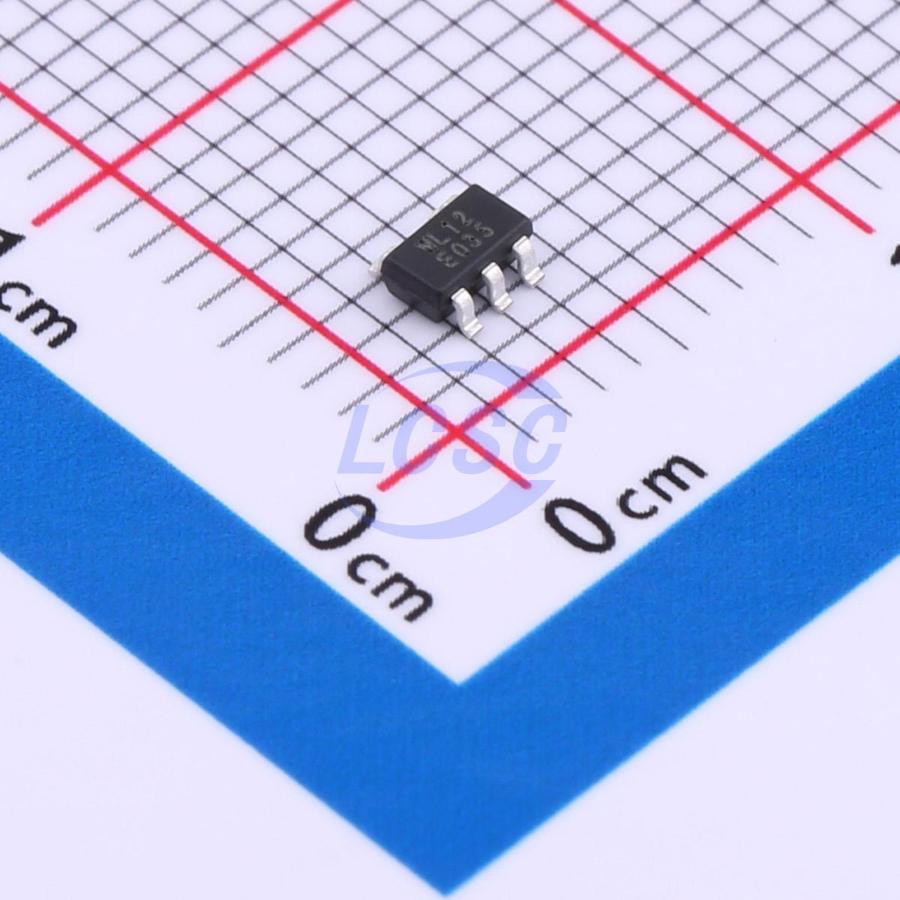

WL2808E12-5/TR
1.2V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5LROHS CompliantActive
Low noise, High PSRR, High speed, CMOS LDO
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WL2808E12-5/TR
- Store part #
- C2931310
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,650 in stock
#C2931310
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.05 | ₹70.50 |
| 100+ | ₹5.69 | ₹569.00 |
| 300+ | ₹5.00 | ₹1,500.00 |
| 3,000+ | ₹4.50 | ₹13,500.00 |
| 6,000+ | ₹4.09 | ₹24,540.00 |
| 9,000+ | ₹3.89 | ₹35,010.00 |
10 × ₹7.05
₹70.50
excl. GST
₹83.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WL2808E12-5/TR
₹70.50 for 10 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 30uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 200mA
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.049 g
Overview
The WL2808E series is a high accuracy, low noise, high speed, low dropout CMOS Linear regulator with high ripple rejection. The devices offer a new level of cost effective performance in cellular phones, laptop and notebook computers, and other portable devices. The current limiter's fold-back circuit also operates as a short circuit protection and an output current limiter at the output pin. The WL2808E regulators are available in standard SOT-23-5L packages. Standard products are Pb-free and Halogen-free.
Applications
- MP3/MP4 Players
- Cellphones, radiophone, digital cameras
- Bluetooth, wireless handsets
- Others portable electronics device
Key features
- Input voltage : 2.5V~5.5V Output range : 1.2V~3.3V
- Output current : 200mA (@VOUT<2V)(Typ.)
- 300mA (@VOUT>2V)(Typ.)
- PSRR : 75dB @ 217Hz
- Dropout voltage : 170mV @ IOUT=200mA
- Quiescent current : 30μA Typ.
- Shut-down current : <1μA
- Recommend capacitor : 1uF
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WL2803E12-5/TR#C771777WILLSEMI · SOT-23-5L | WILLSEMI | SOT-23-5L | 1,860 | ₹10.77 · 1,860 in stock | View |
| WL2848E12-5/TR#C5139233WILLSEMI · SOT-23-5L | WILLSEMI | SOT-23-5L | On request | ₹12.04 · 0 in stock | View | |
