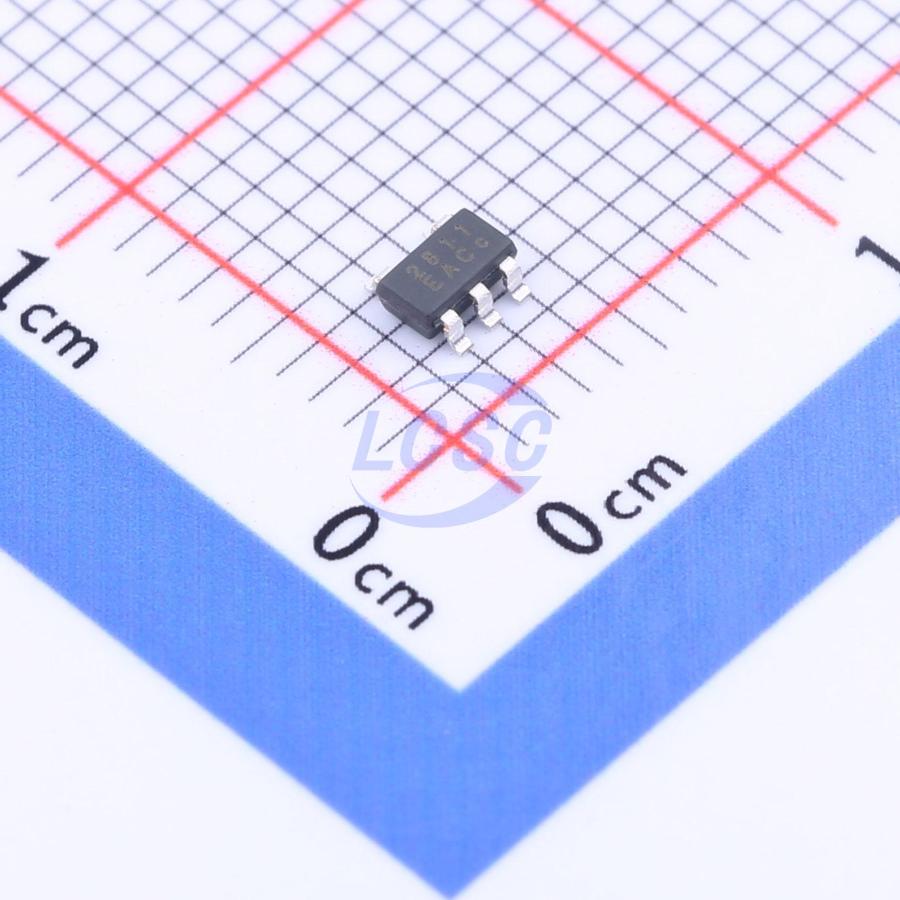

WL2811EA-5/TR
Linear Voltage Regulator IC Positive Adjustable 1 Output 300mA SOT-23-5L
SOT-23-5LROHS CompliantActive
Low-noise, high PSRR, high-speed CMOS LDO
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WL2811EA-5/TR
- Store part #
- C2939855
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,400 in stock
#C2939855
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹11.07 | ₹110.70 |
| 100+ | ₹8.77 | ₹877.00 |
| 300+ | ₹7.63 | ₹2,289.00 |
| 3,000+ | ₹6.77 | ₹20,310.00 |
| 6,000+ | ₹6.09 | ₹36,540.00 |
| 9,000+ | ₹5.74 | ₹51,660.00 |
10 × ₹11.07
₹110.70
excl. GST
₹130.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WL2811EA-5/TR
₹110.70 for 10 + GST
Specifications
- Output Voltage
- 800mV~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 75uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
The WL2811EA series is a high accuracy, low noise, high speed, high PSRR, low dropout CMOS Linear regulator with high ripple rejection. The devices offer a new level of cost effective performance in cellular phones, laptop and notebook computers, and other portable devices. The WL2811EA has the fold-back maximum output current which depends on the output voltage. So the current limit functions both as a short circuit protection and as an output current limiter. The WL2811EA regulators are available in standard SOT-23-5L Package. Standard products are Pb-free and Halogen-free.
Applications
- MP3/MP4 Players
- Cellphones, radiophone, digital cameras
- Bluetooth, wireless handsets
- Others portable electronics device
Key features
- Input Voltage Range: 2V ~ 5.5V
- Output Voltage Range: 0.8V ~ 5V
- Output current: 300mA
- Quiescent current: 75μA Typ. Shut-down current < 1μA
- Dropout voltage: 141mV @ IOUT = 0.3A
- PSRR: 70dB @ 1kHz, VOUT = 3V
- Low Output Voltage Noise: 12μV RMS Typ.
- Output Voltage Tolerance: ±2%
- Recommend capacitor: 1μF
- Thermal-Overload and Short-Circuit Protection
