WILLSEMIDatasheet (PDF)

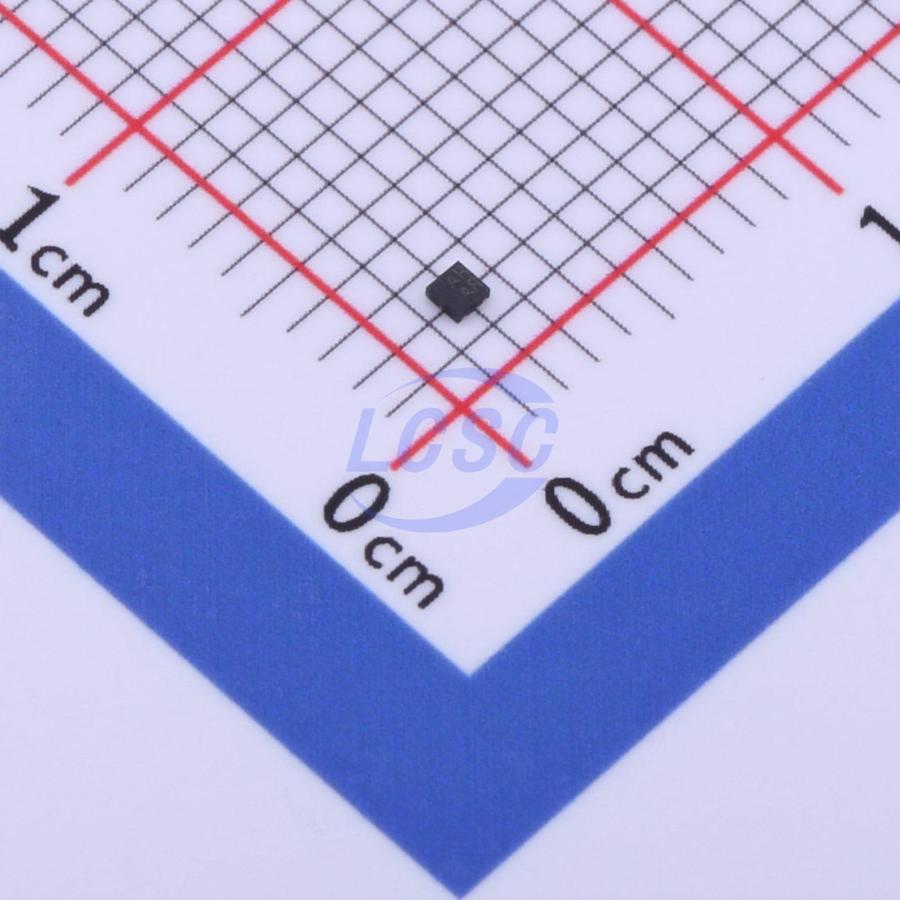

WL2815D18-4/TR
1.8V Positive Fixed X2-DFN1010-4-EP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
X2-DFN1010-4-EPRoHSActive
Lowpower consumption,CMOS LDO
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WL2815D18-4/TR
- Store part #
- C506122
- Package / case
- X2-DFN1010-4-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,930 in stock
#C506122
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.14 | ₹71.40 |
| 100+ | ₹6.31 | ₹631.00 |
| 300+ | ₹5.90 | ₹1,770.00 |
| 1,000+ | ₹5.58 | ₹5,580.00 |
| 5,000+ | ₹5.34 | ₹26,700.00 |
| 10,000+ | ₹5.21 | ₹52,100.00 |
10 × ₹7.14
₹71.40
excl. GST
₹84.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
WL2815D18-4/TR
₹71.40 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Features
- Enable control;Short Circuit Protection;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.011 g
Overview
The WL2815 series are low dropout linear regulators and optimized to provide a high performance solution for battery power system to deliver low quiescent current. The devices offer a new level of cost effective performance in cellular phones, laptop and notebook computers, and other portable devices. The WL2815 series are designed to make use of low cost ceramic capacitors which ensure the stability of the output current, and enhance the efficiency in order to prolong the battery life of those portable devices. The WL2815 regulators are available in DFN1x1-4L packages. Standard products are Pb -free and Halogen free products.
Applications
- MP3/MP4 Players
- Cell phones
- Bluetooth earphone
- Wireless mouse
- Others electronics devices
Key features
- Quiescent current : 1.5μA Typ.
- Input voltage : 2.1V ~ 5.5V
- Output voltage : 1.1V ~ 3.3V
- Output current : 300mA @ VOUT=3.3V
- Output current : 200mA @ VOUT=2.0V
- Output current : 150mA @ VOUT=1.5V
- Dropout voltage : 100mV @ 100mA
- Recommend capacitor : 1uF or more
- Operating Temperature : -40~+85°C
- Output short protection
