WILLSEMIDatasheet (PDF)

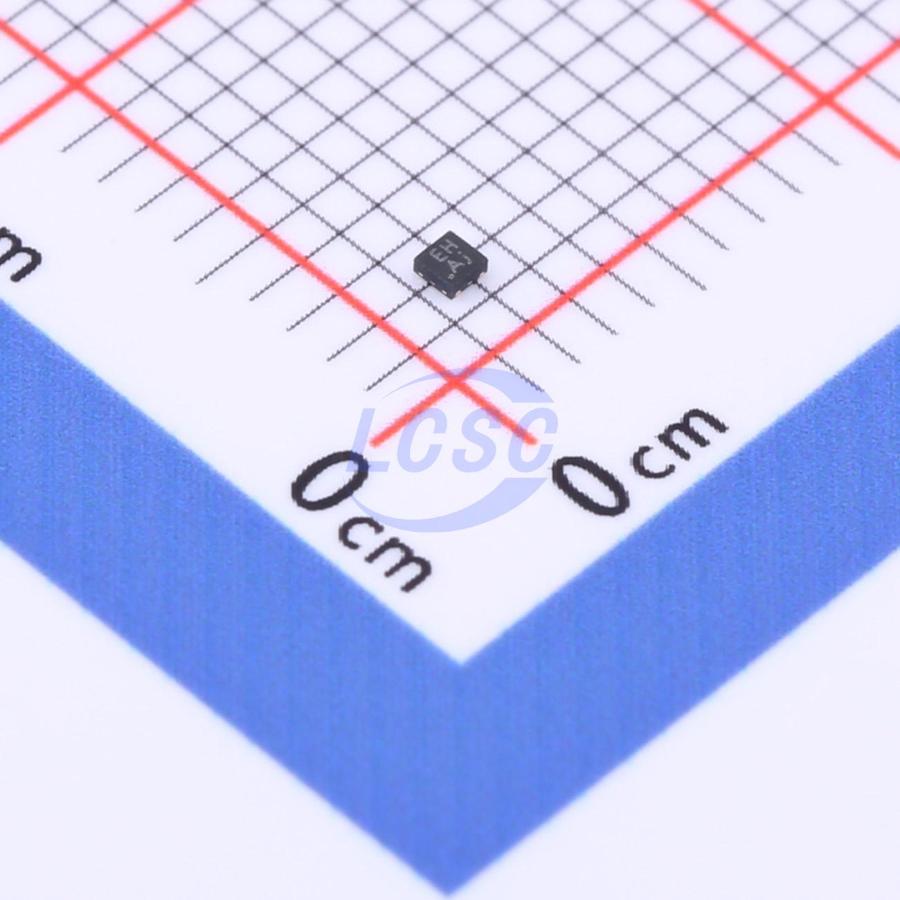

WL2820D18-4/TR
1.8V Positive Fixed DFN1x1-4L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN1x1-4LROHS CompliantDiscontinued
Low noise, High PSRR, High speed, CMOS LDO
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WL2820D18-4/TR
- Store part #
- C506109
- Package / case
- DFN1x1-4L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,390 in stock
#C506109
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.60 | ₹66.00 |
| 100+ | ₹5.31 | ₹531.00 |
| 300+ | ₹4.66 | ₹1,398.00 |
| 1,000+ | ₹4.17 | ₹4,170.00 |
| 5,000+ | ₹3.78 | ₹18,900.00 |
| 10,000+ | ₹3.59 | ₹35,900.00 |
10 × ₹6.60
₹66.00
excl. GST
₹77.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
WL2820D18-4/TR
₹66.00 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 42uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.09 g
Overview
The WL2820D series is a high accuracy, low noise, high speed, low dropout CMOS Linear regulator with high ripple rejection. The devices offer a new level of cost effective performance in cellular phones, laptop and notebook computers, and other portable devices. The WL2820D has the fold-back maximum output current which depends on the output voltage. So the current limit functions both as a short circuit protection and as an output current limiter. The WL2820D regulators are available in standard DFN1x1-4L Package. Standard products are Pb-free and Halogen-free.
Applications
- MP3/MP4 Players
- Cellphones, radiophone, digital cameras
- Bluetooth, wireless handsets
- Others portable electronics device
Key features
- Input voltage: 2.2V~5.5V
- Output range: 1.0V~3.8V
- Output current: 300mA
- PSRR: 70dB @ 217Hz
- Dropout voltage: 250mV @ 300mA
- Quiescent current: 42μA Typ.
- Shut-down current: <1μA
- Discharge Resistance: 100Ω
- Recommend capacitor: 1uF
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WL2836D18-4/TR#C506085WILLSEMI · XDFN-4-EP(1x1) | WILLSEMI | XDFN-4-EP(1x1) | 3,485 | ₹12.95 · 3,485 in stock | View |
| WL2848D18-4/TR#C5139232WILLSEMI · DFN1x1-4L | WILLSEMI | DFN1x1-4L | On request | ₹9.55 · 0 in stock | View | |
