WILLSEMIDatasheet (PDF)

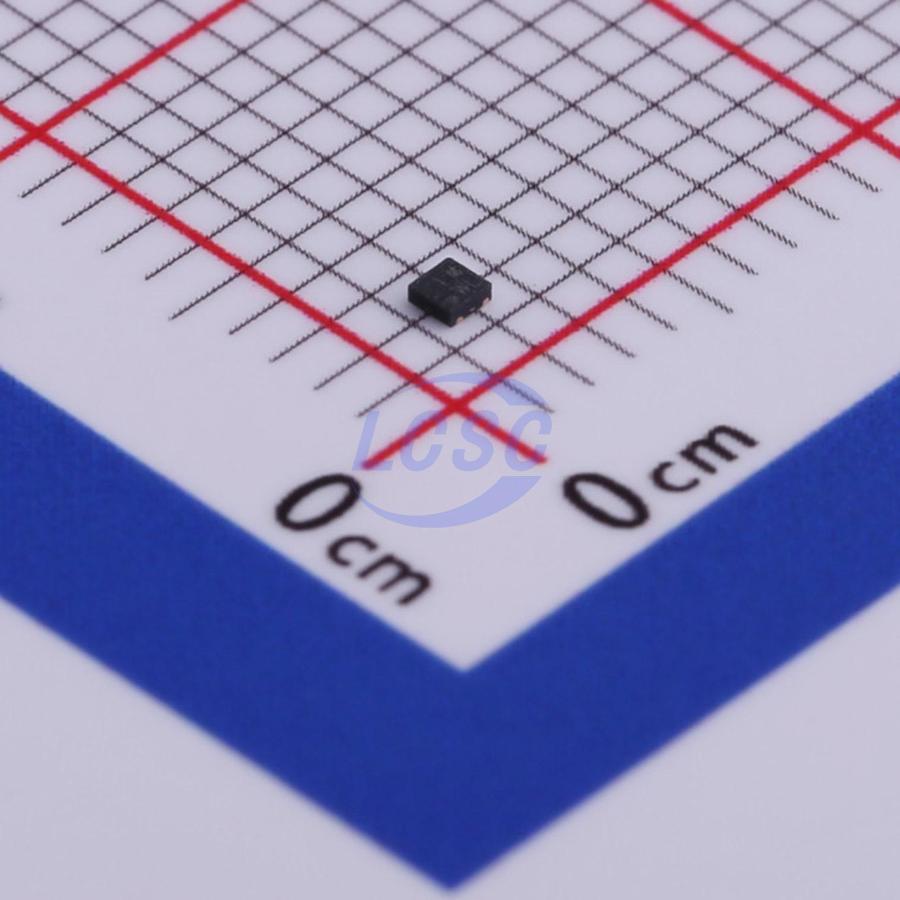

WL2836D30-4/TR
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA DFN1x1-4L
DFN1x1-4LROHS CompliantActive
Low-noise, high PSRR, high-speed CMOS LDO
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WL2836D30-4/TR
- Store part #
- C506138
- Package / case
- DFN1x1-4L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,010 in stock
#C506138
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.50 | ₹47.50 |
| 50+ | ₹8.37 | ₹418.50 |
| 150+ | ₹7.81 | ₹1,171.50 |
| 500+ | ₹7.38 | ₹3,690.00 |
| 2,500+ | ₹7.05 | ₹17,625.00 |
| 5,000+ | ₹6.88 | ₹34,400.00 |
5 × ₹9.50
₹47.50
excl. GST
₹56.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
WL2836D30-4/TR
₹47.50 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.005 g
Overview
The WL2836D series is a high accuracy, low noise, high speed, high PSRR, low dropout CMOS Linear regulator with high ripple rejection. The devices offer a new level of cost effective performance in cellular phones, laptop and notebook computers, and other portable devices. The WL2836D has the fold-back maximum output current which depends on the output voltage. So the current limit functions both as a short circuit protection and as an output current limiter. The WL2836D regulators are available in standard DFN1x1-4L Package. Standard products are Pb-free and Halogen-free.
Applications
- MP3/MP4 Players
- Cellphones, radiophone, digital cameras
- Bluetooth, wireless handsets
- Others portable electronics device
Key features
- Input Voltage Range: 1.4V ~ 5.5V
- Output Voltage Range: 0.9V ~ 3.3V
- Output current: 300mA
- Quiescent current: 50μA Typ.
- Shut-down current: <1μA
- Dropout voltage: 140mV @ IOUT=0.3A
- PSRR: 78dB @ 1kHz, VOUT=1.8V
- Low Output Voltage Noise: 13×VOUT μVRMS
- Output Voltage Tolerance: ± 1% @ Iour>2I
- Recommend capacitor: 1μF
- Thermal-Overload and Short-Circuit Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| WL2848D30-4/TR#C5139241WILLSEMI · DFN1x1-4L | WILLSEMI | DFN1x1-4L | On request | Price on request | Quote | |
