WILLSEMIDatasheet (PDF)

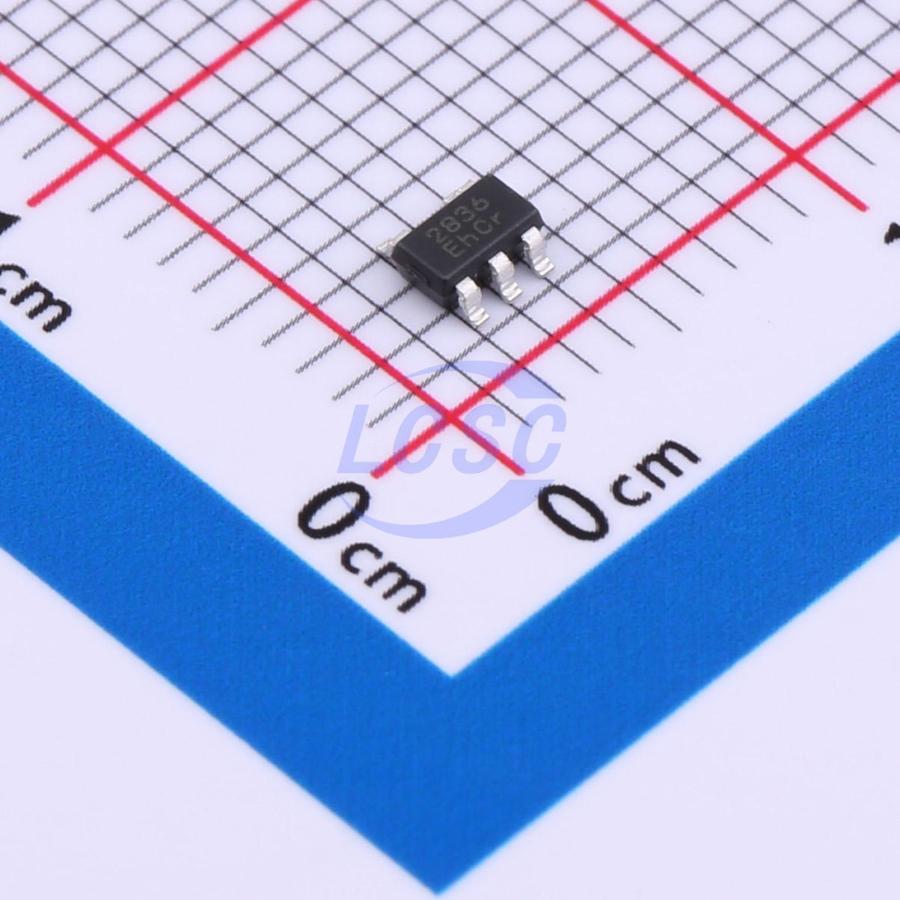

WL2836E08-5/TR
800mV Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5LROHS CompliantActive
Low noise, High PSRR, High speed, CMOS LDO
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WL2836E08-5/TR
- Store part #
- C2931319
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,600 in stock
#C2931319
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.94 | ₹89.40 |
| 100+ | ₹7.20 | ₹720.00 |
| 300+ | ₹6.31 | ₹1,893.00 |
| 3,000+ | ₹5.66 | ₹16,980.00 |
| 6,000+ | ₹5.13 | ₹30,780.00 |
| 9,000+ | ₹4.87 | ₹43,830.00 |
10 × ₹8.94
₹89.40
excl. GST
₹105.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WL2836E08-5/TR
₹89.40 for 10 + GST
Specifications
- Output Voltage
- 800mV
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.05 g
Overview
The WL2836E series is a high accuracy, low noise, high speed, high PSRR, low dropout CMOS Linear regulator with high ripple rejection. The devices offer a new level of cost effective performance in cellular phones, laptop and notebook computers, and other portable devices. The WL2836E has the fold-back maximum output current which depends on the output voltage. So the current limit functions both as a short circuit protection and as an output current limiter. The WL2836E regulators are available in standard SOT-23-5L Package. Standard products are Pb-free and Halogen-free.
Applications
- MP3/MP4 Players
- Cellphones, radiophone, digital cameras
- Bluetooth, wireless handsets
- Others portable electronics device
Key features
- Input Voltage Range: 1.4V ~ 5.5V
- Output Voltage Range: 0.8V ~ 3.3V
- Output current: 300mA
- Quiescent current: 50μA Typ.
- Shut-down current: <1μA
- Dropout voltage: 140mV @ Iout = 0.3A
- PSRR: 78dB @ 1kHz, VOUT = 1.8V
- Low Output Voltage Noise: 20μV RMS Typ.
- Output Voltage Tolerance: ±2% @ VOUT>2V
- Recommend capacitor: 1μF
- Thermal-Overload and Short-Circuit Protection
