WILLSEMIDatasheet (PDF)

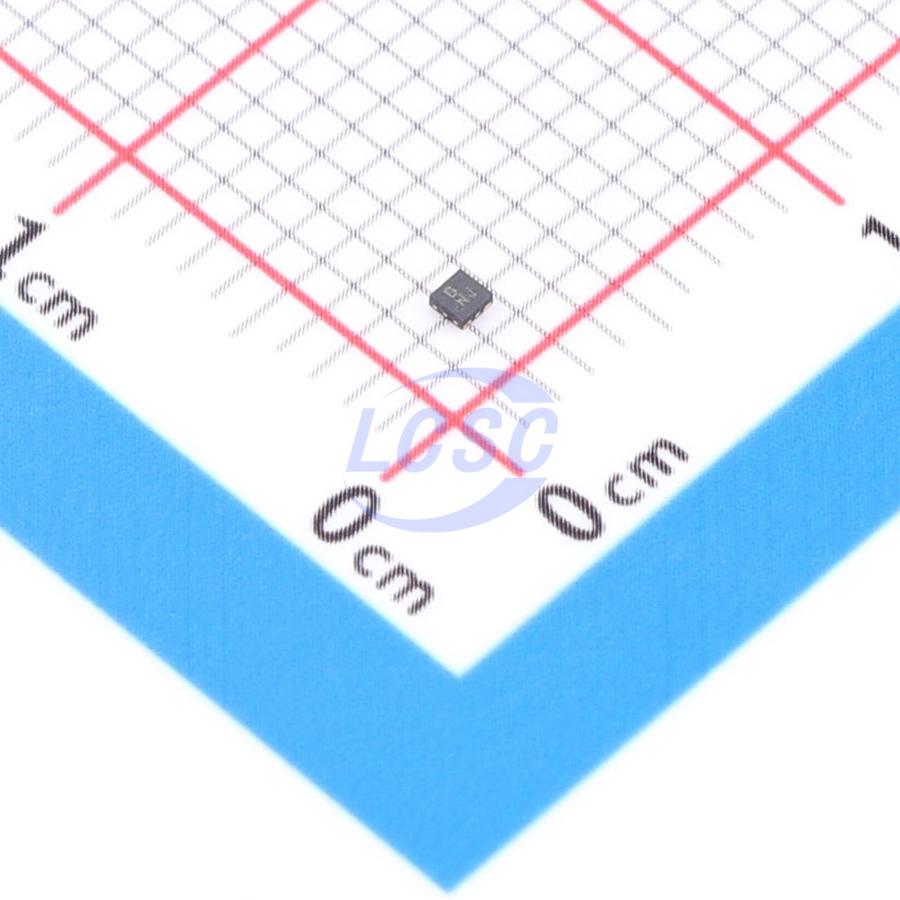

WL2848D33-4/TR
3.3V Positive Fixed DFN1x1-4L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
DFN1x1-4LRoHSActive
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WL2848D33-4/TR
- Store part #
- C5139242
- Package / case
- DFN1x1-4L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,460 in stock
#C5139242
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.52 | ₹57.60 |
| 50+ | ₹9.23 | ₹461.50 |
| 150+ | ₹8.08 | ₹1,212.00 |
| 500+ | ₹7.24 | ₹3,620.00 |
| 2,500+ | ₹6.55 | ₹16,375.00 |
| 5,000+ | ₹6.20 | ₹31,000.00 |
5 × ₹11.52
₹57.60
excl. GST
₹67.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
WL2848D33-4/TR
₹57.60 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 58uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Built-in soft-start;Input under-voltage protection;Short Circuit Protection;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.011 g
Overview
The WL2848D series is a high accuracy, low noise, high speed, high PSRR, low dropout CMOS Linear regulator with high ripple rejection. The devices offer a new level of cost effective performance in cellular phones, laptop and notebook computers, and other portable devices. The WL2848D occupies the soft-start function, which can prevent input inrush current, and has the fold-back maximum output current which depends on the output voltage. So the current limit functions both as a short circuit protection and as an output current limiter. The WL2848D regulators are available in standard DFN1x1-4L Package. Standard products are Pb-free and Halogen-free.
Applications
- MP3/MP4 Players
- Cellphones, radiophone, digital cameras
- Bluetooth, wireless handsets
- Others portable electronics device
Key features
- Input Voltage Range: 1.9V~5.5V
- Output Voltage Range: 1.2V~3.3V
- Output current: 300mA
- Quiescent current: 58μA Typ
- Shut-down current: <1μA
- Dropout voltage: 149mV @ IOUT=0.3A
- PSRR: 74dB @ 1kHz, VOUT =2.8V
- Low Output Voltage Noise: 15×VOUT μVRMS
- VOUT accuracy: ±1.5% @ VOUT>2.0V
- Recommend output capacitor: 1μF
- Thermal-Overload and Short-Circuit Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WL2836D33-4/TR#C2931318WILLSEMI · DFN1x1-4L | WILLSEMI | DFN1x1-4L | 11,325 | ₹11.31 · 11,325 in stock | View |
 | WL2815D33-4/TR#C506126WILLSEMI · XDFN-4-EP(1x1) | WILLSEMI | XDFN-4-EP(1x1) | 13,710 | ₹7.77 · 13,710 in stock | View |
