WILLSEMIDatasheet (PDF)

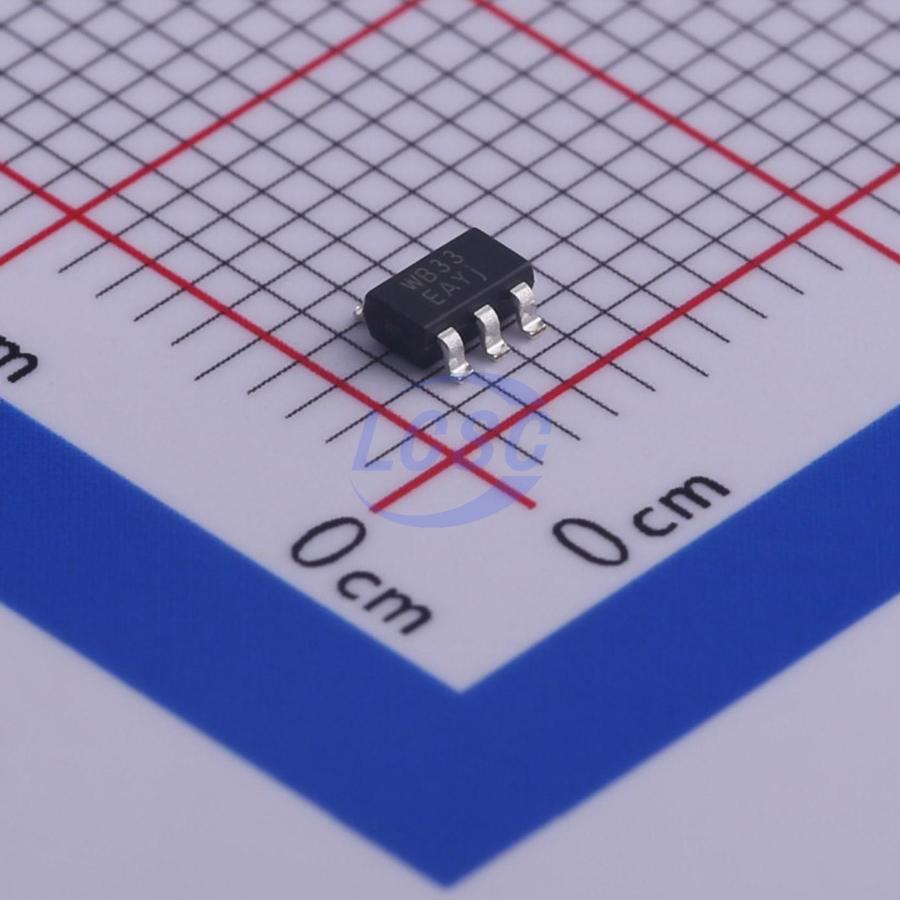

WL2851E33-5/TR
3.3V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5LROHS CompliantActive
High Input Voltage, Low Quiescent Current LDO
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WL2851E33-5/TR
- Store part #
- C467852
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,920 in stock
#C467852
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.18 | ₹105.90 |
| 50+ | ₹16.42 | ₹821.00 |
| 150+ | ₹14.38 | ₹2,157.00 |
| 500+ | ₹11.84 | ₹5,920.00 |
| 3,000+ | ₹10.70 | ₹32,100.00 |
| 6,000+ | ₹10.03 | ₹60,180.00 |
5 × ₹21.18
₹105.90
excl. GST
₹124.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WL2851E33-5/TR
₹105.90 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 10uA
- Output Configuration
- Positive
- Output Current
- 280mA
- Operating Voltage
- 40V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The WL2851E series is a high accuracy, high input voltage low quiescent current, high speed, and low dropout Liner regulator with high ripple rejection. The device is manufactured with Bi-CMOS process. The WL2851E offers over-current limit and over temperature protection to ensure the device working in well conditions. The WL2851E regulators are available in standard SOT-23-5L packages. Standard products are Pb-free and Halogen-free.
Key features
- Supply Voltage : 4.75V ~ 40V
- Output Range : 1.8V ~ 5.7V
- Output Accuracy : < +/-2%
- Output Current : 150mA @ (VIN - VOUT = 2V)(Typ.)
- PSRR : 60dB @ 100Hz
- Dropout Voltage : 240mV @ IOUT = 30mA
- Quiescent Current : 10μA @ VIN = 7V(Typ.)
- Recommend Capacitor : 10uF
