WILLSEMIDatasheet (PDF)

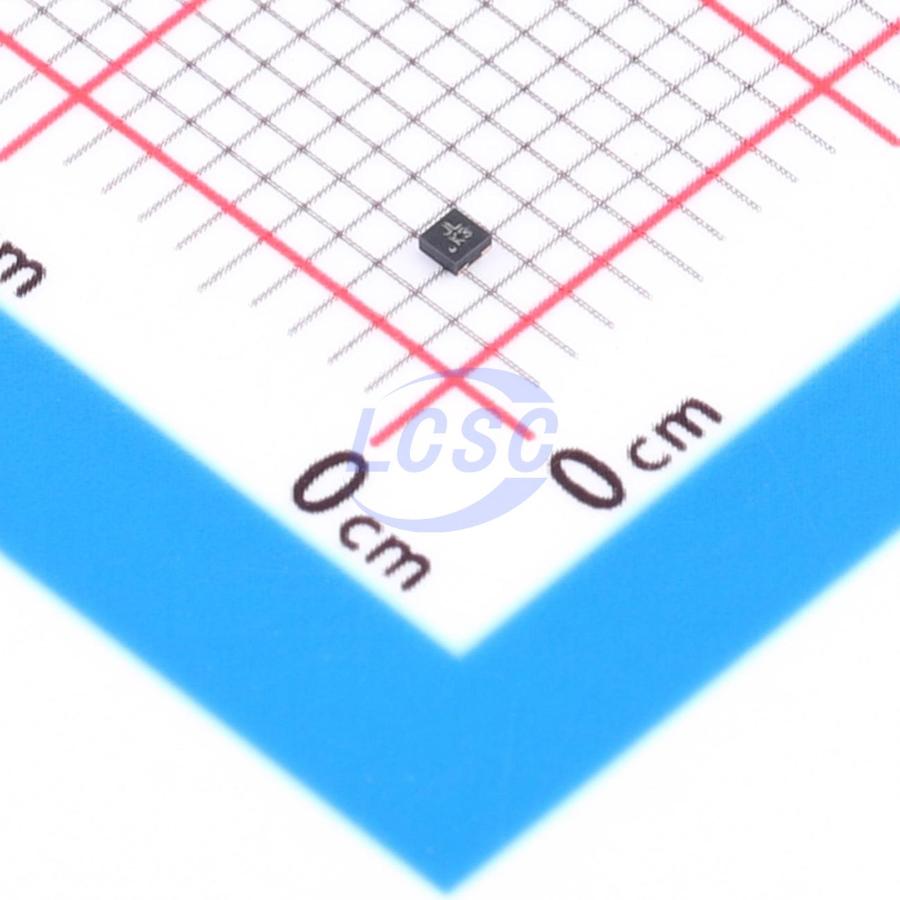

WL28631D28-4/TR
2.8V Positive Fixed DFN-4L(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
DFN-4L(1x1)RoHSActive
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WL28631D28-4/TR
- Store part #
- C52993369
- Package / case
- DFN-4L(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,315 in stock
#C52993369
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.82 | ₹64.10 |
| 50+ | ₹10.29 | ₹514.50 |
| 150+ | ₹9.02 | ₹1,353.00 |
| 500+ | ₹8.07 | ₹4,035.00 |
| 2,500+ | ₹7.32 | ₹18,300.00 |
| 5,000+ | ₹6.94 | ₹34,700.00 |
5 × ₹12.82
₹64.10
excl. GST
₹75.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
WL28631D28-4/TR
₹64.10 for 5 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 21uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 400mA
- Features
- Enable control;Input under-voltage protection;Output discharge;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.011 g
Overview
The WL28631D is a linear regulator capable of delivering 400mA output current. Designed to meet the demands of RF and analog circuits, it features low noise, high PSRR, low quiescent current, and excellent load and line transient response. The device operates with 1μF input and 1μF output ceramic capacitors, requiring no additional noise bypass capacitor. The WL28631D regulator is available in a standard DFN1x1-4L package and is offered in a lead-free, halogen-free version as standard.
Applications
- Mobile phones
- Cordless phones
- Digital cameras
- Bluetooth devices
- Wireless handheld devices
- Hi-Fi products
- Other portable electronic devices
Key features
- Input voltage range: 2.2V~5.5V
- Output voltage range: 1.8V~3.3V
- Output current: 400mA
- Power supply rejection ratio: typical 100dB (at 10mA, f=1KHz); typical 45dB (at 10mA, f=1MHz)
- Low dropout: typical 180mV (at 400mA)
- Quiescent current: typical 21μA
- Low output voltage noise: typical 4.8μVRMS
- Output voltage accuracy: ±2% (-40℃<TA<85℃)
- Undervoltage lockout threshold: maximum 1.7V (falling edge)
- Recommended capacitor: 1uF
- Stable with 1μF ceramic input and output capacitors
- No noise bypass capacitor required
- Thermal overload protection
