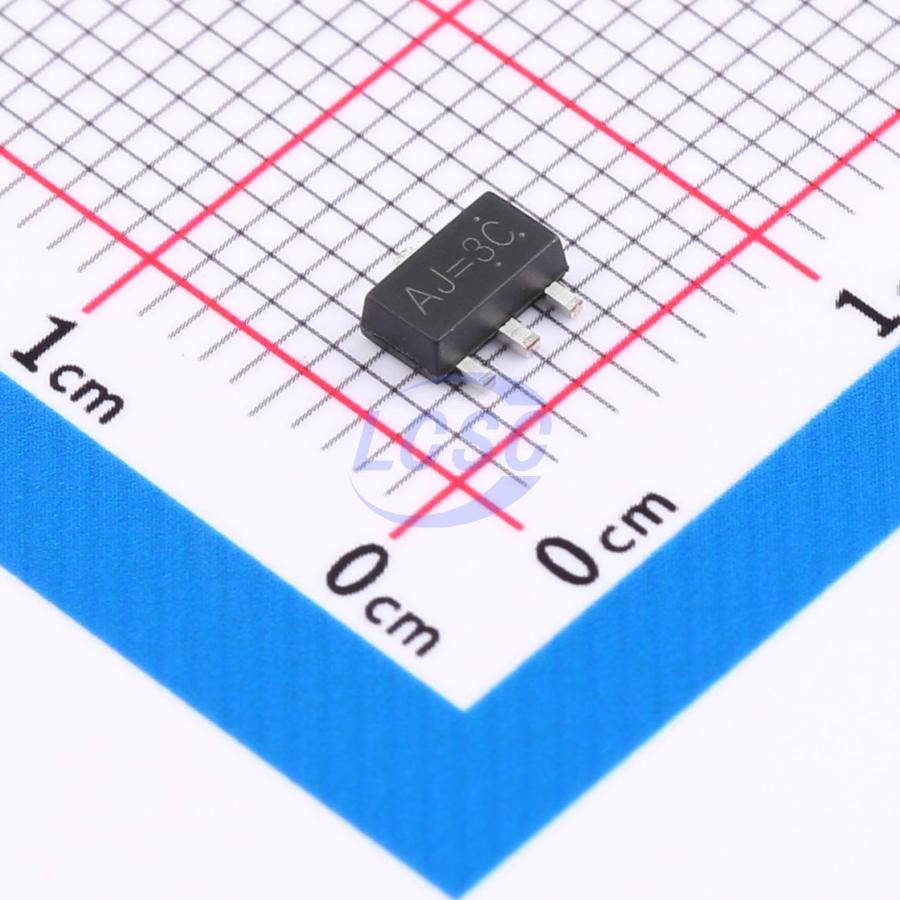

WPMtek

WL9005P3-33

3.3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-89-3ROHS CompliantActive

0.3uA IQ ,High PSRR,500mA Low-Dropout LDO

Manufacturer: WPMtek
Manufacturer part #: WL9005P3-33
Store part #: C2688248
Package / case: SOT-89-3
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,405 in stock

#C2688248

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹13.61	₹68.05
50+	₹11.01	₹550.50
150+	₹9.70	₹1,455.00
1,000+	₹7.57	₹7,570.00
2,000+	₹6.79	₹13,580.00
5,000+	₹6.39	₹31,950.00

Quantity (min 5, multiples of 5)

5 × ₹13.61

₹68.05

excl. GST

₹80.30 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

WL9005P3-33

₹68.05 for 5 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 300nA
Output Configuration: Positive
Output Current: 500mA
Operating Voltage: 7V
Features: Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.151 g

Overview

The WL9005 series are high-precision, low-noise, positive-voltage LDO linear regulators fabricated using CMOS technology. This series features high ripple rejection and low dropout characteristics, with an internal reference voltage source, error correction circuit, current limiter, phase compensation circuit, and driver transistor. The output voltage is selectable from 0.8V to 5.0V in 0.05V steps. The series is also compatible with low-ESR ceramic capacitors, providing additional output stability. It delivers up to 500mA output current in a compact package. The quiescent current as low as 0.3μA and near-zero shutdown current make it ideal for extending battery life in battery-powered devices. Additional features include current limiting, integrated short-circuit protection, over-temperature protection, and fast discharge functionality.

Applications

Battery-powered devices
Wireless communication devices
Voltage reference sources
Audio/video equipment
Low-power microcontrollers
Portable gaming consoles

Key features

Low quiescent current: 0.3μA (typical)
Maximum output current: 500mA
Low dropout voltage: 100mV @ 100mA (Vout=3.3V)
Operating voltage range: 2.0V ~ 7.0V
Output voltage accuracy: ±1.5%
High PSRR: 70dB @1kHz
Excellent transient response
Integrated short-circuit protection
Over-temperature protection
Output current limiting
Low temperature coefficient
Stable operation with ceramic capacitors
RoHS compliant and lead-free
Operating temperature range: -40°C to +85°C
Fixed output voltage versions: 0.8, 1.0, 1.2, 1.5, 1.8, 2.5, 2.8, 3.0, 3.3, 3.6, and 5.0V (in 0.05V steps)
Special requirements: any voltage between 0.8V and 5.0V available under specific commercial agreements
Available in green/halogen-free SOT23-3, SOT23-5, SOT89-3, DFN1x1-4L, DFN2x2-6L packages
