WayonDatasheet (PDF)

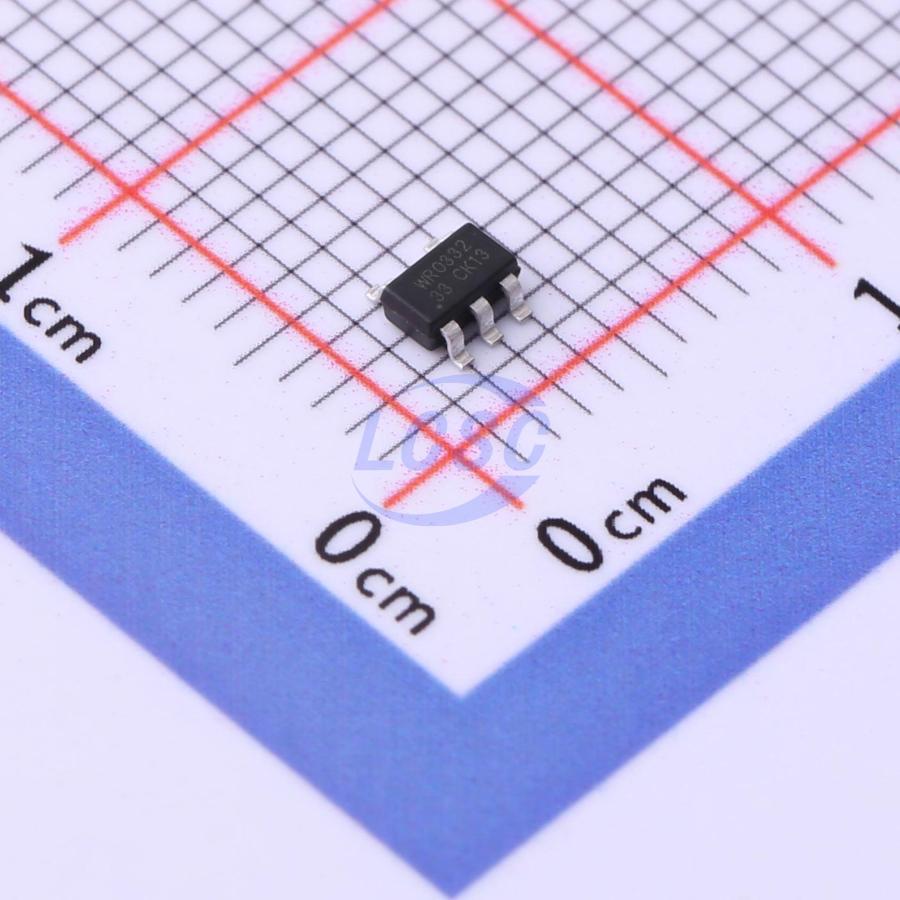

WR0332-33A50R
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
High PSRR, High speed, CMOS LDO
- Manufacturer
- Wayon
- Manufacturer part #
- WR0332-33A50R
- Store part #
- C3039418
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,240 in stock
#C3039418
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.16 | ₹103.20 |
| 200+ | ₹4.11 | ₹822.00 |
| 600+ | ₹3.60 | ₹2,160.00 |
| 3,000+ | ₹3.12 | ₹9,360.00 |
| 9,000+ | ₹2.80 | ₹25,200.00 |
| 21,000+ | ₹2.65 | ₹55,650.00 |
20 × ₹5.16
₹103.20
excl. GST
₹121.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WR0332-33A50R
₹103.20 for 20 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 80uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.041 g
Overview
WR0332 is a high-precision, low-noise, high-speed, low-dropout, high-PSRR CMOS LDO regulator. The device delivers 300 mA output current with an input voltage range of 2.2 V to 5.5 V and an output voltage range of 1.0 V to 3.3 V. Its low dropout voltage and low quiescent current characteristics make it well suited for battery-powered handheld terminals. The WR0332 features foldback maximum output current limiting dependent on output voltage, providing both short-circuit protection and output current limiting. All versions incorporate thermal shutdown and current limiting protection to ensure safe operation. The WR0332 regulator is available in standard SOT23-3, SOT23-5, and DFN1x1-4 packages. Standard products are lead-free and halogen-free.
Applications
- MP3/MP4 players
- Mobile phones, cordless phones, digital cameras
- Bluetooth, wireless handheld devices
- Other portable electronic devices
Key features
- Power Supply Rejection Ratio: 70dB@1kHz
- Output Current: 300mA
- Input Voltage: 2.2 V ~ 5.5 V
- Output Voltage: 1.0 V ~ 3.3 V
- Dropout Voltage: 220mV @ VOUT = 3.3 V
- Quiescent Current: 60 μA (typical)
- Shutdown Current: < 1 μA
- Recommended Capacitor: 1 μF
- Operating Temperature Range: -40 ~ +125 ℃
