WILLSEMIDatasheet (PDF)

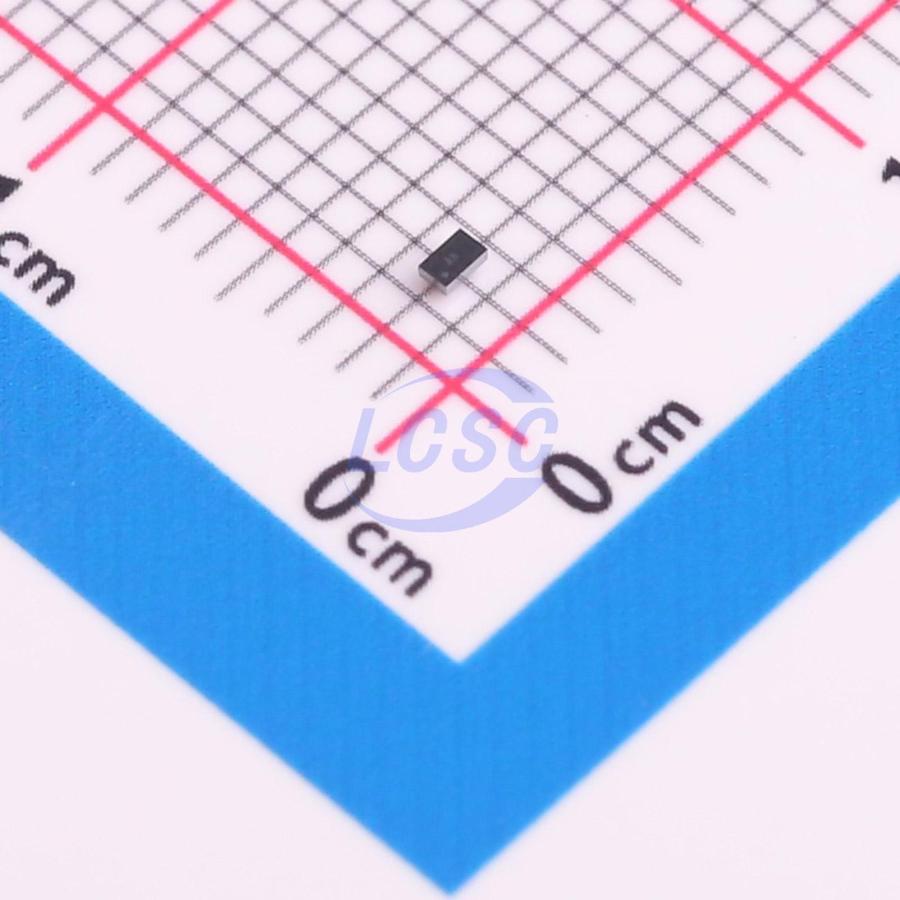

WS3221C-6/TR
WLCSP-6L Power Distribution Switches, Load Drivers
WLCSP-6LRoHSActive
Over-Voltage-Protection load switch with Adjustable OVLO threshold
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WS3221C-6/TR
- Store part #
- C506091
- Package / case
- WLCSP-6L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,910 in stock
#C506091
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.80 | ₹159.00 |
| 50+ | ₹25.24 | ₹1,262.00 |
| 150+ | ₹22.42 | ₹3,363.00 |
| 500+ | ₹18.92 | ₹9,460.00 |
| 3,000+ | ₹17.36 | ₹52,080.00 |
| 6,000+ | ₹16.42 | ₹98,520.00 |
5 × ₹31.80
₹159.00
excl. GST
₹187.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WS3221C-6/TR
₹159.00 for 5 + GST
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
The WS3221 is an Over-Voltage-Protection (OVP) load switch with adjustable OVLO threshold voltage. The device will switch off internal MOSFET to disconnect IN to OUT to protect load when any of input voltage over the threshold. When the OVLO input set below the external OVLO select voltage, the WS3221 automatically chooses the internal fixed OVLO threshold voltage. The over voltage protection threshold voltage can be adjusted with external resistor divider and the OVLO threshold voltage range is 4~20V. The Over temperature protection (OTP) function monitors chip temperature to protect the device. The WS3221 is available in standard CSP-6L Package. Standard products are Pb-free and Halogen-free.
Applications
- Mobile Handsets and Tablets
- Portable Media Players Peripherals
Key features
- Maximum input voltage : 29V
- Switch ON resistance : 28mΩ Typ.
- Ultra fast OVP response time : 50ns Typ.
- OVLO threshold voltage Reference voltage for adjustable version 1.2V : WS3221C with ±2.5% accuracy
- Internal threshold voltage for fixed version 6.8V : WS3221C68 with ±2% accuracy
- 10.5V : WS3221CB with ±2% accuracy
- 14.0V : WS3221CE with ±2% accuracy
