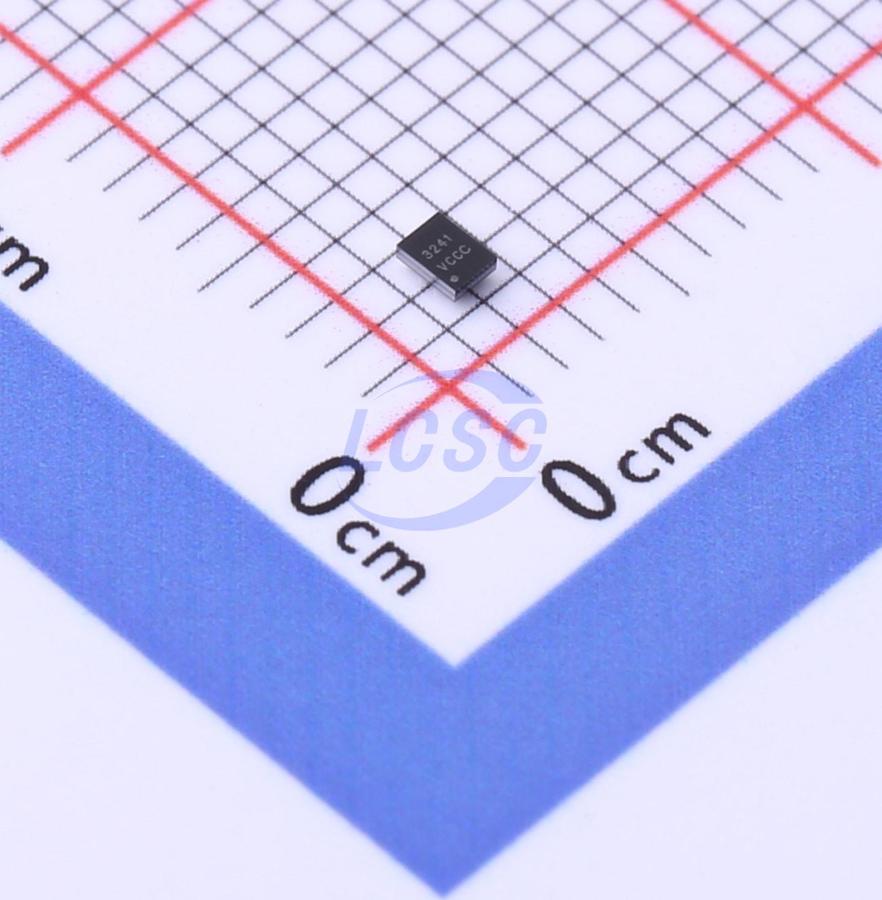

WILLSEMI

WS3241C-12/TR

1 4.5A Active Low Load Switch CSP-12L Power Distribution Switches, Load Drivers

CSP-12LRoHSActive

Over-Voltage Protection Load Switch

Manufacturer: WILLSEMI
Manufacturer part #: WS3241C-12/TR
Store part #: C2931337
Package / case: CSP-12L
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,785 in stock

#C2931337

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹42.46	₹212.30
50+	₹33.93	₹1,696.50
150+	₹30.28	₹4,542.00
500+	₹25.73	₹12,865.00
3,000+	₹23.71	₹71,130.00
6,000+	₹22.48	₹1,34,880.00

Quantity (min 5, multiples of 5)

5 × ₹42.46

₹212.30

excl. GST

₹250.51 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

WS3241C-12/TR

₹212.30 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Overvoltage protection;Over temperature protection;Under-voltage lockout;Soft-start;Output discharge function
number of channels: 1
Maximum Continuous Current: 4.5A
Control Input Logic: Active Low
Operating Voltage: 2.9V~25V
RDS(on): 30mΩ
Type: Load Switch

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.034 g

Overview

The WS3241C features a low RON internal high voltage switch and an input range of absolute maximum 29V. The WS3241C behaves Over-Voltage Protection (OVP) that shuts off the internal Switch if OVLO pin voltage exceeds the 1.2V reference voltage. External resistors divider could be used to set the input voltage OVP threshold. The off-state Switch would disconnect the input pin to output pin and protect output from the input high voltage stress. Also, an internal fixed 6.8V-OVP could set by connecting OVLO pin to ground without the external resistors. Integrated Over-Temperature Protection (OTP) also shuts off the Switch to protect the device. The WS3241C is available in CSP-12L package. Standard product is Pb-free and Halogen-free.
