WILLSEMI

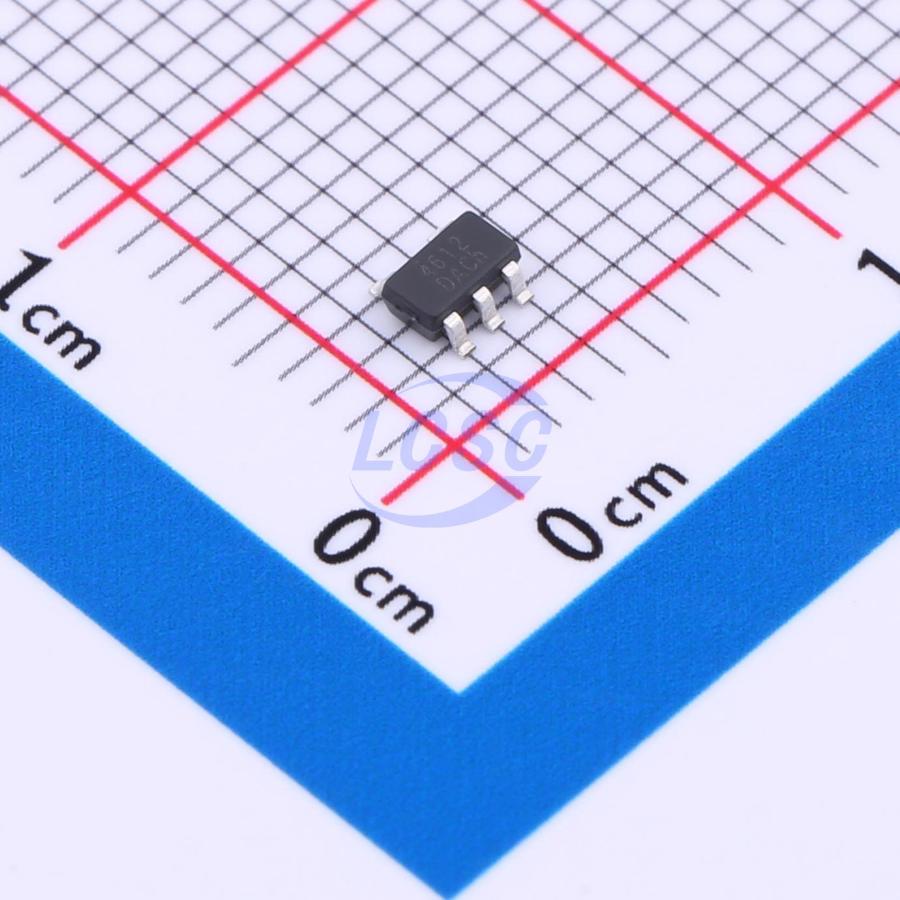

WS4612EDA-5/TR

1 2A Active High High Side Switch SOT-23-5L Power Distribution Switches, Load Drivers RoHS

SOT-23-5LROHS CompliantActive

Current Limited, Power Distribution Switch

Manufacturer: WILLSEMI
Manufacturer part #: WS4612EDA-5/TR
Store part #: C2931339
Package / case: SOT-23-5L
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,185 in stock

#C2931339

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹15.72	₹78.60
50+	₹12.59	₹629.50
150+	₹11.03	₹1,654.50
500+	₹9.87	₹4,935.00
3,000+	₹8.93	₹26,790.00
6,000+	₹8.47	₹50,820.00

Quantity (min 5, multiples of 5)

5 × ₹15.72

₹78.60

excl. GST

₹92.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

WS4612EDA-5/TR

₹78.60 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Output discharge function;Reverse voltage protection
number of channels: 1
Maximum Continuous Current: 2A
Control Input Logic: Active High
Operating Voltage: 2.5V~5.5V
RDS(on): 60mΩ
Type: High Side Switch

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.049 g

Overview

The WS4612 is a high-side switch with ultra-low ON resistance P-MOSFET. Integrated current-limit function can limit inrush current for heavy capacitive load, over load current, and short-circuit current to protect power source. The WS4612 is also integrated reverse protection function to eliminate any reverse current flow across the switch when the device is off. Output auto-discharge function makes output voltage off quickly while the device shutdown. Thermal shutdown function can protect the device and load. The WS4612 is available in SOT-23-5L packages. Standard product is Pb-free and Halogen-free.
