WorldsemiDatasheet (PDF)

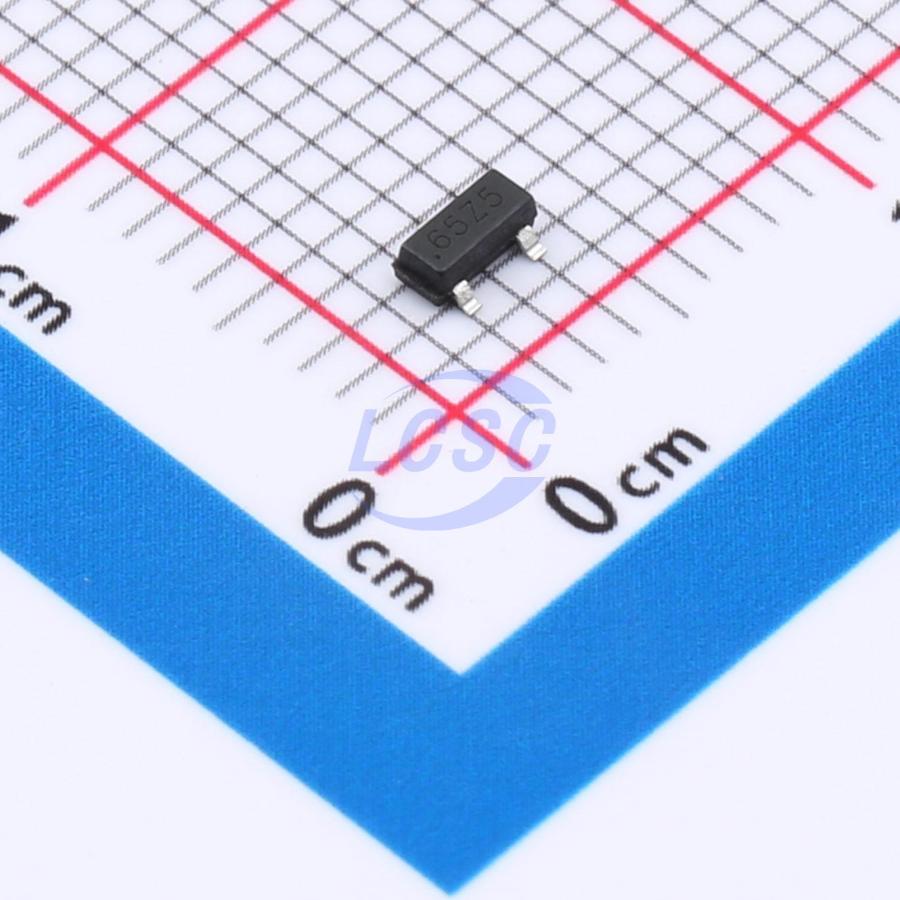

WS6206.30
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23
SOT-23ROHS CompliantActive
Low-power constant-voltage LDO
- Manufacturer
- Worldsemi
- Manufacturer part #
- WS6206.30
- Store part #
- C42417650
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,440 in stock
#C42417650
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.28 | ₹65.60 |
| 200+ | ₹2.58 | ₹516.00 |
| 600+ | ₹2.18 | ₹1,308.00 |
| 3,000+ | ₹1.94 | ₹5,820.00 |
| 9,000+ | ₹1.75 | ₹15,750.00 |
| 21,000+ | ₹1.64 | ₹34,440.00 |
20 × ₹3.28
₹65.60
excl. GST
₹77.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WS6206.30
₹65.60 for 20 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.035 g
Overview
The WS6206.30 series is a high ripple rejection, low quiescent current, low dropout CMOS linear voltage regulator with overcurrent and short-circuit protection. The device features an extremely low quiescent current of 3.0μA (typical), capable of delivering 300mA output current under very small input-to-output voltage differentials while maintaining good regulation. Its ultra-low dropout voltage and quiescent current characteristics make it particularly suitable for battery-powered applications requiring extended battery life. The output voltage is set via internal metal fuse technology, selectable from 1.2V to 5.0V in 100mV increments. Available packages include SOT-23, SOT23-3L, and SOT-89.
Applications
- Battery-powered systems
- Cordless telephone equipment
- Wireless control systems
- Portable/handheld computers
- Portable consumer devices
Key features
- Maximum output current: 300mA
- Dropout voltage: 160mV @ 100mA
- Maximum operating voltage: 8V
- Output voltage range: 1.2V ~ 5.0V
- Output voltage accuracy: 1% or 2% optional
- Ultra-low quiescent current: 3μA
- Built-in overcurrent and short-circuit protection
- Operating temperature range: -40℃ ~ 85℃
- Ultra-compact package: SOT-23, SOT23-3L, SOT89-3L
