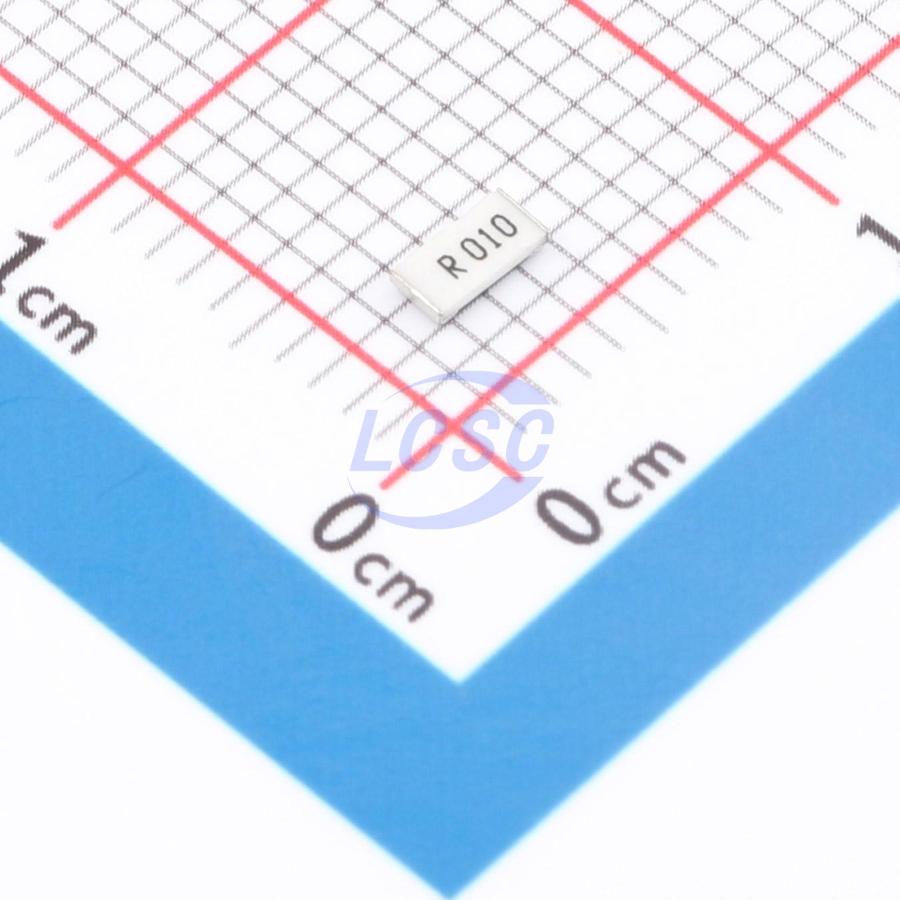

WSTM1206QLR010FNR
10mΩ 1W Current Sense Resistor ±50ppm/℃ ±1% 1206 Chip Resistor - Surface Mount
1206RoHSActive
RES 10mΩ ±1% 1W 1206
- Manufacturer
- Littelfuse
- Manufacturer part #
- WSTM1206QLR010FNR
- Store part #
- C20350382
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
88 in stock
#C20350382
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹41.03 | ₹41.03 |
| 10+ | ₹39.94 | ₹399.40 |
| 30+ | ₹39.29 | ₹1,178.70 |
| 100+ | ₹38.64 | ₹3,864.00 |
1 × ₹41.03
₹41.03
excl. GST
₹48.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
WSTM1206QLR010FNR
₹41.03 for 1 + GST
Specifications
- Resistance
- 10mΩ
- Power(Watts)
- 1W
- Type
- Current Sense Resistor
- Temperature Coefficient
- ±50ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.097 g
Overview
Littelfuse WSTM series low-ohm current sense resistors are designed for long-term stability. The series offers durability and excellent thermal dissipation. The compact package suits most applications.
Applications
- Power Management
- Low ESL
Key features
- Low TCR
- Optimum linearity in I/V conversion
- Ceramic substrate
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STE1206M1W0R010F#C201276Walter Elec · 1206 | Walter Elec | 1206 | 1,24,930 | ₹6.46 · 1,24,930 in stock | View |
 | LMJ12MF1P0R010#C2937391prosemi · 1206 | prosemi | 1206 | 50 | ₹11.36 · 50 in stock | View |
 | MFJ06HR010FT#C2961483FH · 1206 | FH | 1206 | 7,340 | ₹5.52 · 7,340 in stock | View |
 | PA1206FRE470R01Z#C723412YAGEO · 1206 | YAGEO | 1206 | 70 | ₹17.11 · 70 in stock | View |
 | FRM121WFR010TM#C7467248FOJAN · 1206 | FOJAN | 1206 | 2,540 | ₹4.66 · 2,540 in stock | View |
