XBLWDatasheet (PDF)

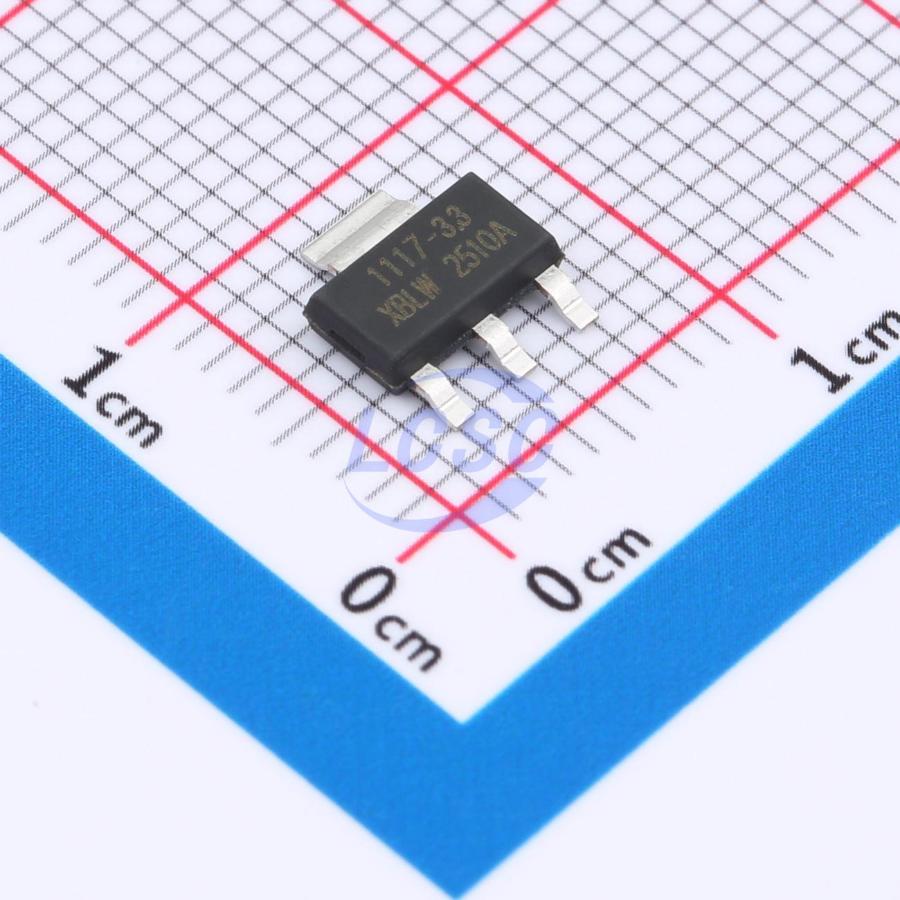

XBL1117-3.3
3.3V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS CompliantActive
1.0A Low Dropout Voltage Regulator
- Manufacturer
- XBLW
- Manufacturer part #
- XBL1117-3.3
- Store part #
- C47021214
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90,300 in stock
#C47021214
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.07 | ₹60.70 |
| 100+ | ₹4.83 | ₹483.00 |
| 300+ | ₹4.19 | ₹1,257.00 |
| 2,500+ | ₹3.73 | ₹9,325.00 |
| 5,000+ | ₹3.36 | ₹16,800.00 |
| 10,000+ | ₹3.18 | ₹31,800.00 |
10 × ₹6.07
₹60.70
excl. GST
₹71.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XBL1117-3.3
₹60.70 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 4mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Thermal shutdown;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.233 g
Overview
The XBL1117 series of low- dropout positive voltage regulators with an output current capability of 1.0A. The series consists of fixed output voltage version and adjustable output voltage version with ±1.5% accuracy. The XBL1117 offers thermal shutdown and current limit functions in order to ensure the stability of chip and power system, and it uses trimming technique to guarantee output voltage accuracy within ±1.5%. The XBL1117 is available in SOT- 223, SOT- 89- 3L and TO- 252- 2L package.
Applications
- LCD Monitor and LCD TV
- DVD Decode Board
- ADSL Modem
- Post Regulators for Switching Supplies
- AC drive power stage modules
- Merchant network and server PSU
- Industrial AC/DC
- Ultrasound scanners
- Servo drive control modules
- Power Management for Computer Mother Board and Graphic Card
Key features
- Output Current Capability of 1.0A
- Output Voltage Accuracy within ±1.5%
- Operation Input Voltage up to 15V
- VIN - VOUT < 5V has short circuit protection function
- Less than 0.2% Line Regulation
- Less than 0.4% Load Regulation
- Fixed Output Voltage of 1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V
- Adjustable Output Voltage from 1.25 to 13.8V with Only Two External Resistors
