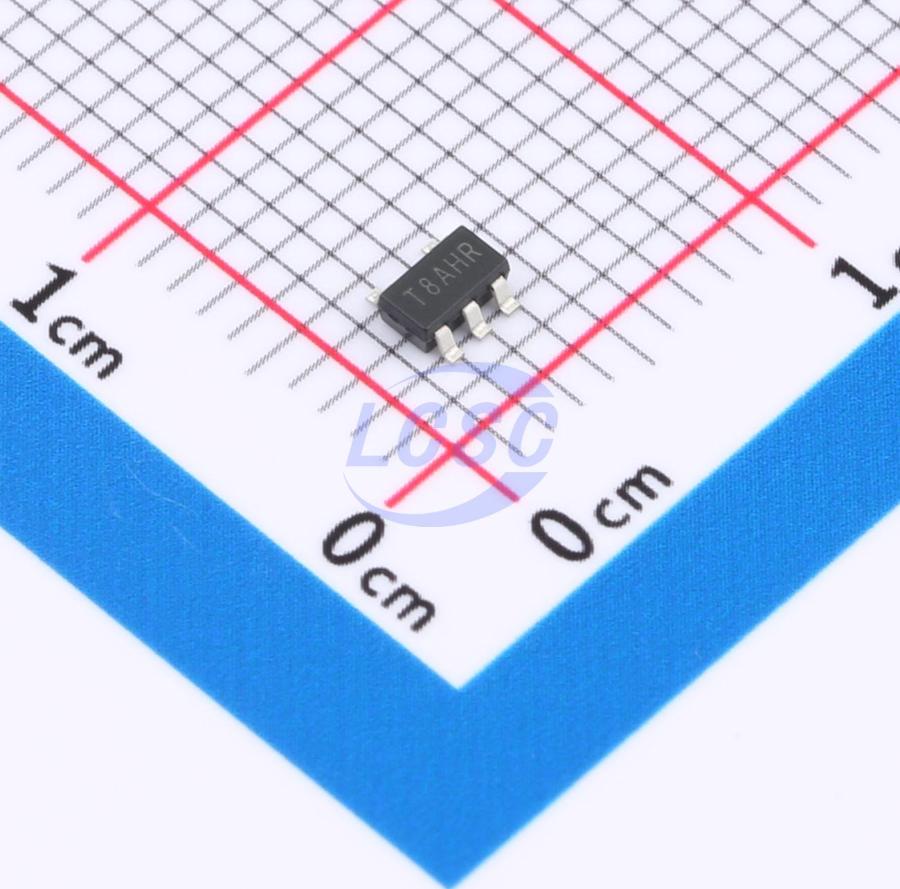

XC6118N08AMR-G
30us Active Low 1V~6V 1 SOT-25 Supervisors RoHS
Voltage Detector with Separated Sense Pin & Delay Capacitor Pin
- Manufacturer
- TOREX
- Manufacturer part #
- XC6118N08AMR-G
- Store part #
- C2461044
- Package / case
- SOT-25
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,989 in stock
#C2461044
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.66 | ₹68.66 |
| 10+ | ₹54.63 | ₹546.30 |
| 30+ | ₹48.58 | ₹1,457.40 |
| 100+ | ₹41.03 | ₹4,103.00 |
| 500+ | ₹37.57 | ₹18,785.00 |
| 1,000+ | ₹35.63 | ₹35,630.00 |
1 × ₹68.66
₹68.66
excl. GST
₹81.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6118N08AMR-G
₹68.66 for 1 + GST
Specifications
- Reset Timeout
- 30us
- output type
- Open-drain
- Operating Temperature
- -40℃~+85℃
- Reset Active Level
- Active Low
- standby current
- 400nA
- Voltage - Supply
- 1V~6V
- ChipType
- Voltage Detector
- Threshold Voltage
- 800mV
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
The XC6118 series is a low power consumption voltage detector with high accuracy detection, manufactured using CMOS process and laser trimming technologies. Since the sense pin is separated from the power supply pin, it allows the IC to monitor the other power supply. The XC6118 can maintain the state of detection even when voltage of the monitored power supply drops to 0V. Moreover, a release delay time can be adjusted by the external capacitor connected to the Cd pin. The VOUT pin is available in both CMOS and N-channel open drain output configurations.
Applications
- Microprocessor reset circuitry
- Charge voltage monitors
- Memory battery back-up switch circuits
- Power failure detection circuits
Key features
- High Accuracy
- Detect Voltage Range: ±2% (Detect Voltage≧1.5V), ±30mV (Detect Voltage <1.5V)
- Operating Voltage Range: 0.4μA TYP. (Detect, VIN=1.0V), 0.8μA TYP. (Release, VIN=1.0V)
- Temperature Characteristics: ±100ppm/°C TYP.
- Output Configuration: CMOS, N-channel open drain
- Pin Function: Power supply separation, Release delay time adjustable
- Operating Ambient Temperature: -40°C~+85°C
- Packages: USP-4, SOT-25
- Environmentally Friendly: EU RoHS Compliant, Pb Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SGM890B-0.8XN5G/TR#C5152443SGMICRO · SOT-23-5 | SGMICRO | SOT-23-5 | On request | Price on request | Quote | |
| R3117N083A-TR-FE#C2462536Nisshinbo Micro Devices Inc. · SOT-23-5 | Nisshinbo Micro Devices Inc. | SOT-23-5 | On request | Price on request | Quote | |
| XC6135N08DMR-G#C2459457TOREX · SOT-25-5 | TOREX | SOT-25-5 | On request | Price on request | Quote | |
| XC6135N08BMR-G#C2459805TOREX · SOT-25 | TOREX | SOT-25 | On request | Price on request | Quote | |
| XC6135N08CMR-G#C2459977TOREX · SOT-25-5 | TOREX | SOT-25-5 | On request | Price on request | Quote | |
