TOREX

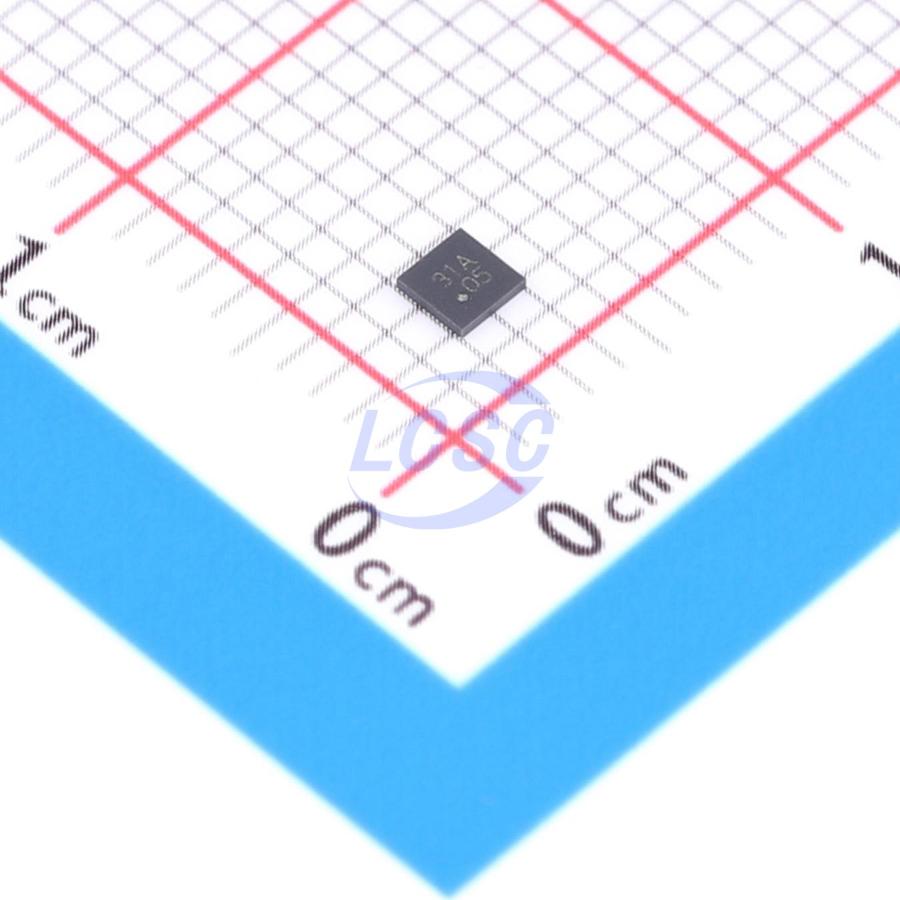

XC6193A103ER-G

1 Active Low High Side Switch USP-8B06 Power Distribution Switches, Load Drivers

USP-8B06RoHSActive

Push Button Smart Load Switch with internal high-side switch and external Pch MOSFET control pin

Manufacturer: TOREX
Manufacturer part #: XC6193A103ER-G
Store part #: C19267155
Package / case: USP-8B06
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,957 in stock

#C19267155

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹96.05	₹96.05
10+	₹78.02	₹780.20
30+	₹68.89	₹2,066.70
100+	₹59.76	₹5,976.00
500+	₹54.55	₹27,275.00
1,000+	₹51.73	₹51,730.00

Quantity (min 1)

1 × ₹96.05

₹96.05

excl. GST

₹113.34 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

XC6193A103ER-G

₹96.05 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Output discharge function;Soft-start
number of channels: 1
Control Input Logic: Active Low
RDS(on): 140mΩ
Operating Voltage: 1.8V~6V
Type: High Side Switch

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.021 g

Overview

The XC6193 series are the Push Button load switch with functions best suitable for battery operated devices. The built-in high side switch is turned on by the Push Button (Turning off is also possible on the type.) and turned off by the "L" level signal into the SHDN pin from the MCU or the like. The high side switch is turned on and latched by inputting "L" signal from the Push Button of the device to the SW pin. It is possible to shut down (OFF) by inputting a 1-pulse signal of "H" level from the MCU or the like to the SHDN pin. This realizes a main switch of battery operated devices easily. The leak current at shutdown is so small, which is 1nA(TYP.), that this IC will contribute to reducing the discharge of the battery and making shelf life longer of the devices after shipping as well as functioning as a main switch. For the A type, it is possible to turn off forcibly in case of emergency by Push Button signal. This enables a freezed device to be turned off. For the B type, turn-off is available only with SHDN pin. In addition to these functions, this IC is equipped with output capacitor inrush current limiting function and shortcircuit protection function, realizing an intelligent load switch.

Applications

Wearable devices
Smart card devices
Wireless headphones / Earphones
IoT devices

Key features

Input Voltage Range : 1.8V ~ 6.0V
Stand-by Current : 0.001μA (TYP.) / Turn-Off state
Quiescent Current : 0.13μA (TYP.) / Turn-On state
Output Current : Only Internal FET - 1000mA, N_IN = 2.0V; External FET - Depend on FET
Turn-On Delay Time : 0.2s, 1.0s, 3.0s or 5.0s
Turn-Off Method Type A ・By inputting “H” voltage to the SHDN pin. ・By inputting “L” voltage during the TOFFD to the SW pin. Type B ・By inputting “H” voltage to the SHDN pin.
Turn-Off Delay Time : 3s, 5s, 10s or 15s
Added function : External MOSFET Control function (The GATE pin) Shutdown function (the SHDN pin)
Protection function Output capacitor inrush current limit soft-start Output capacitor discharge Output short circuit protection UVLO Thermal shutdown
Operating Ambient Temperature -40℃ ~ 85℃
