TOREXDatasheet (PDF)

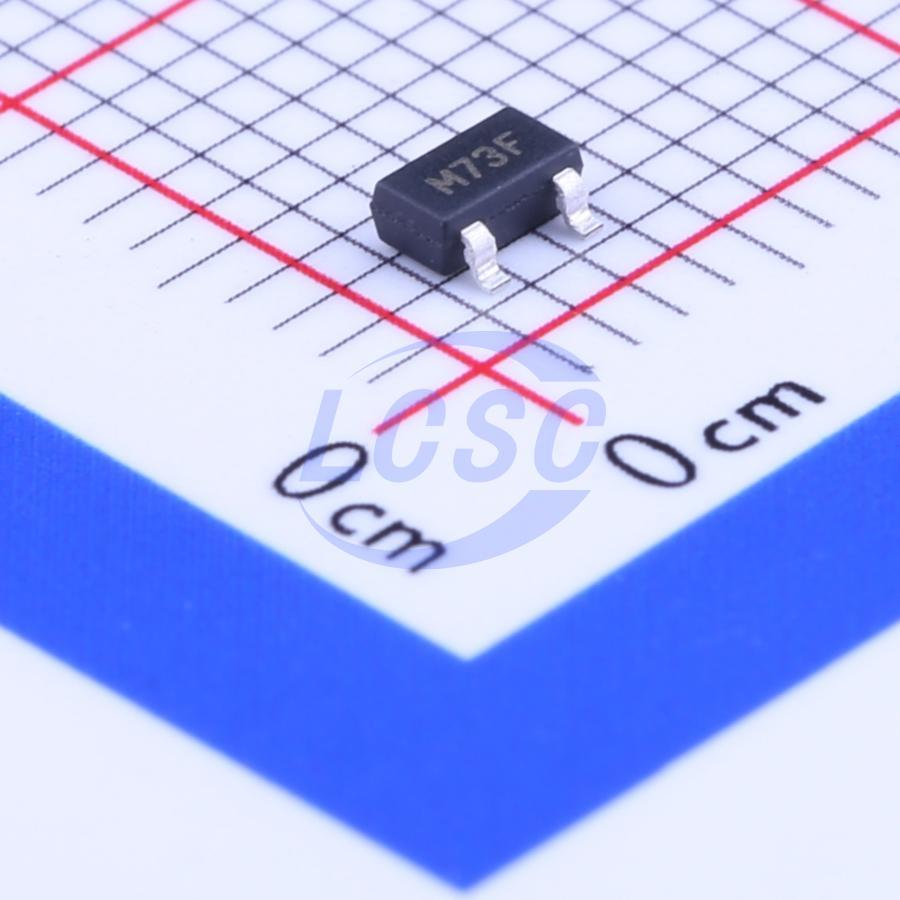

XC61CN2702MR-G
30us Active Low 700mV~10V 1 SOT-23 Supervisors RoHS
SOT-23ROHS CompliantActive
Low Voltage Detectors and Standard Voltage Detectors
- Manufacturer
- TOREX
- Manufacturer part #
- XC61CN2702MR-G
- Store part #
- C112139
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,225 in stock
#C112139
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.72 | ₹113.60 |
| 50+ | ₹20.57 | ₹1,028.50 |
| 150+ | ₹19.65 | ₹2,947.50 |
| 500+ | ₹18.51 | ₹9,255.00 |
| 3,000+ | ₹17.99 | ₹53,970.00 |
| 6,000+ | ₹17.69 | ₹1,06,140.00 |
5 × ₹22.72
₹113.60
excl. GST
₹134.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC61CN2702MR-G
₹113.60 for 5 + GST
Specifications
- Reset Timeout
- 30us
- Operating Temperature
- -40℃~+85℃@(TA)
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 700nA
- Voltage - Supply
- 700mV~10V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.7V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
The XC61C series are highly precise, low power consumption voltage detectors, manufactured using CMOS and laser trimming technologies. Detect voltage is extremely accurate with minimal temperature drift. Both CMOS and N-ch open drain output configurations are available.
Applications
- Microprocessor reset circuitry
- Memory battery back-up circuits
- Power-on reset circuits
- Power failure detection
- System battery life and charge voltage monitors
Key features
- Highly Accurate: ±2%; ± 1% (Standard Voltage VD: 2.6V~5.1V)
- Low Power Consumption: 0.7 μA (TYP.) [VIN = 1.5V]
- Detect Voltage Range: 0.8V~6.0 V in 0.1V increments
- Operating Voltage Range: 0.7V~6.0V (Low Voltage); 0.7V~10.0V (Standard Voltage)
- Detect Voltage Temperature Characteristics: ±100 ppm/°C (TYP.)
- Output Configuration: N-ch open drain or CMOS
- Packages: SSOT-24, SOT-23, SOT-89, TO-92
- Environmentally Friendly: EU RoHS Compliant, Pb Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| XC61CN2702MRN#C33304307TOREX · SOT-23 | TOREX | SOT-23 | 65 | ₹53.34 · 65 in stock | View | |
 | BL8506-27NRM#C691890BL · SOT-23 | BL | SOT-23 | 4,615 | ₹23.31 · 4,615 in stock | View |
 | SSP61CN2702MR#C277903Siproin · SOT-23 | Siproin | SOT-23 | 5,890 | ₹10.81 · 5,890 in stock | View |
 | HE61CN2702MR#C5123438HEERMICR · SOT-23-3 | HEERMICR | SOT-23-3 | 1,110 | ₹11.05 · 1,110 in stock | View |
 | TC51N2702ECBTR#C626552MICROCHIP · SOT-23A-3 | MICROCHIP | SOT-23A-3 | 5 | ₹387.22 · 5 in stock | View |
