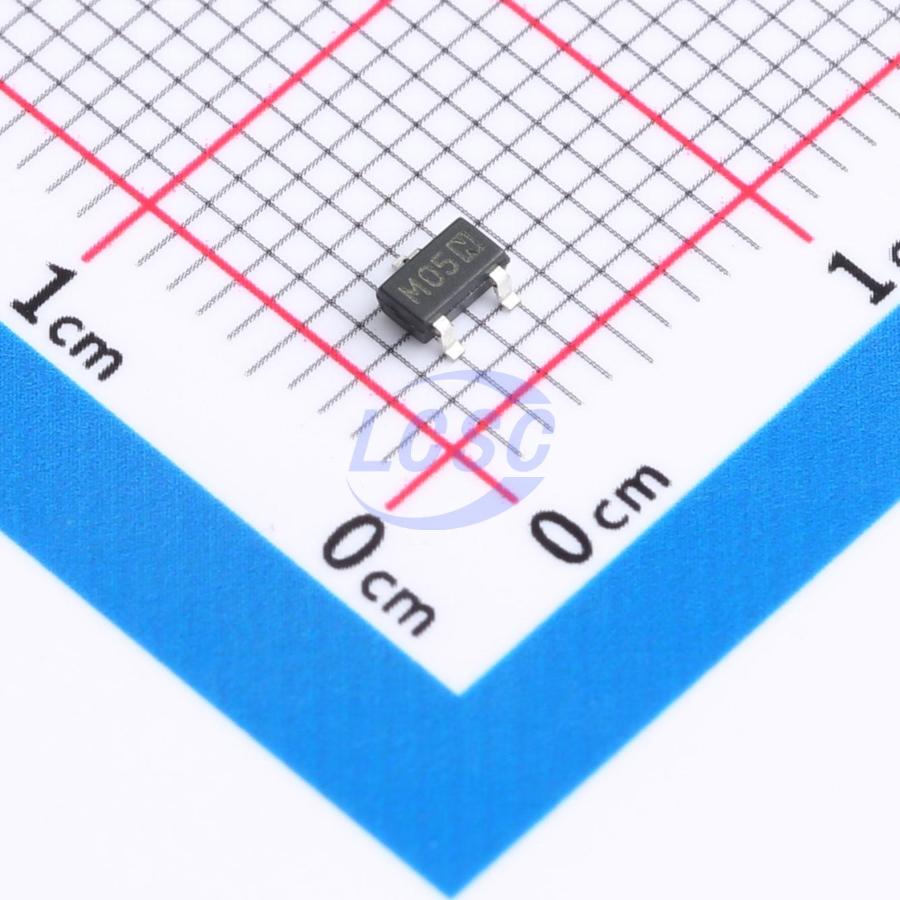

XC61FN2012MR-G
200ms Active Low Lagging function 700mV~10V 1 SOT-23 Supervisors RoHS
Voltage Detectors, Delay Circuit Built-In
- Manufacturer
- TOREX
- Manufacturer part #
- XC61FN2012MR-G
- Store part #
- C7503729
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,507 in stock
#C7503729
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.34 | ₹54.34 |
| 10+ | ₹42.16 | ₹421.60 |
| 30+ | ₹36.95 | ₹1,108.50 |
| 100+ | ₹30.43 | ₹3,043.00 |
| 500+ | ₹27.60 | ₹13,800.00 |
| 1,000+ | ₹25.86 | ₹25,860.00 |
1 × ₹54.34
₹54.34
excl. GST
₹64.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC61FN2012MR-G
₹54.34 for 1 + GST
Specifications
- Reset Timeout
- 200ms
- output type
- Open-drain
- Operating Temperature
- -30℃~+80℃
- Reset Active Level
- Active Low
- Function
- Lagging function
- standby current
- 1uA
- Voltage - Supply
- 700mV~10V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.038 g
Overview
The XC61F series are highly accurate, low power consumption voltage detectors, manufactured using CMOS and laser trimming technologies. A delay circuit is built-in to each detector. Detect voltage is extremely accurate with minimal temperature drift. Both CMOS and N-ch open drain output configurations are available. Since the delay circuit is built-in, peripherals are unnecessary and high density mounting is possible.
Applications
- Microprocessor reset circuitry
- Memory battery back - up circuits
- Power - on reset circuits
- Power failure detection
- System battery life and charge voltage monitors
- Delay circuitry
Key features
- Highly Accurate: ± 2%
- Low Power Consumption: 1.0 μA (TYP.) [VIN = 2.0V]
- Detect Voltage Range: 1.6V ~ 6.0V in 0.1V increments
- Operating Voltage Range: 0.7V ~ 10.0V
- Detect Voltage Temperature Characteristics: ±100ppm/℃ (TYP.)
- Built-In Delay Circuit: 1ms ~ 50ms, 50ms ~ 200ms, 80ms ~ 400ms
- Output Configuration: N-ch open drain output or CMOS
- Operating Ambient Temperature: -30℃ ~ 80℃
- Packages: SOT - 23, SOT - 89
- Environmentally Friendly: EU RoHS Compliant, Pb Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSP61CN2002MR#C277899Siproin · SOT-23 | Siproin | SOT-23 | 5,125 | ₹10.99 · 5,125 in stock | View |
 | XC61CN2102MR#C216613TOREX · SOT-23 | TOREX | SOT-23 | 18 | ₹29.61 · 18 in stock | View |
 | XC61CN2002MR#C2983922TOREX · SOT-23 | TOREX | SOT-23 | On request | Price on request | Quote |
| TC54VN1902ECB713#C626566MICROCHIP · SOT-23A-3 | MICROCHIP | SOT-23A-3 | On request | Price on request | Quote | |
| TC54VN2102ECB713#C626567MICROCHIP · SOT-23A-3 | MICROCHIP | SOT-23A-3 | On request | Price on request | Quote | |
