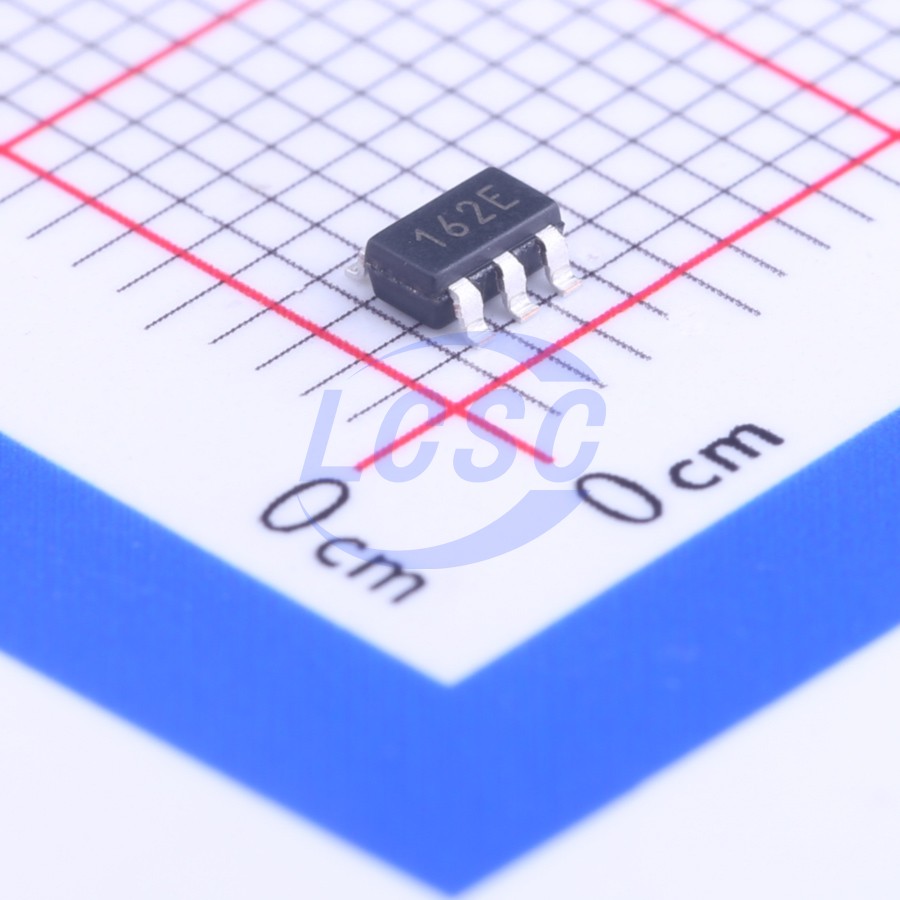

XC6201P332MR-G
3.3V Positive Fixed SOT-25 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-25ROHS3 CompliantActive
Positive Voltage Regulators +CMOS Low Power Consumption
- Manufacturer
- TOREX
- Manufacturer part #
- XC6201P332MR-G
- Store part #
- C29404
- Package / case
- SOT-25
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,965 in stock
#C29404
Stock & price checked 12 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.27 | ₹161.35 |
| 50+ | ₹25.88 | ₹1,294.00 |
| 150+ | ₹23.14 | ₹3,471.00 |
| 500+ | ₹19.73 | ₹9,865.00 |
| 3,000+ | ₹18.20 | ₹54,600.00 |
| 6,000+ | ₹17.29 | ₹1,03,740.00 |
5 × ₹32.27
₹161.35
excl. GST
₹190.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6201P332MR-G
₹161.35 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 10V
- Output Current
- 150mA
- Features
- Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
The XC6201 series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The XC6201 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error amplifier. Output voltage is selectable in 0.1V steps between 1.3V ~ 6.0V. SOT - 25 (250mW), SOT - 89 (500mW) and TO - 92 (300mW) packages are available.
Applications
- Mobile phones
- Cordless phones
- Cameras, video recorders
- Portable games
- Portable AV equipment
- Reference voltage
- Battery powered equipment
Key features
- Maximum Output Current: 250mA (TYP.)
- Dropout Voltage: 0.16V @ 100mA
- Maximum Operating Voltage: 10V
- Output Voltage Range: 1.3V ~ 6.0V (selectable in 0.1V steps), ± 2%
- Low Power Consumption: TYP 2.0 μA
- Operational Temperature Range: - 40°C ~ 85°C
- Package: SOT - 25 (250mW), SOT - 89 (500mW), TO - 92 (300mW)
- Capacitors can be Tantalum or Ceramic
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WL9015S5-33#C36914205WPMtek · SOT-23-5L | WPMtek | SOT-23-5L | 2,000 | ₹9.96 · 2,000 in stock | View |
 | PJ56L33SE#C41367949PJSEMI · SOT-23-5 | PJSEMI | SOT-23-5 | 2,935 | ₹19.12 · 2,935 in stock | View |
 | LW5533B23E#C20630447Lewa Micro · SOT-23-5B | Lewa Micro | SOT-23-5B | 5,810 | ₹9.96 · 5,810 in stock | View |
 | TPS76333DBVR-TP#C5380675TECH PUBLIC · SOT23-5 | TECH PUBLIC | SOT23-5 | 3,855 | ₹28.10 · 3,855 in stock | View |
 | XC6201P332MR-HXY#C19626990HXY MOSFET · SOT-23-5L | HXY MOSFET | SOT-23-5L | 910 | ₹17.98 · 910 in stock | View |
