TOREXDatasheet (PDF)

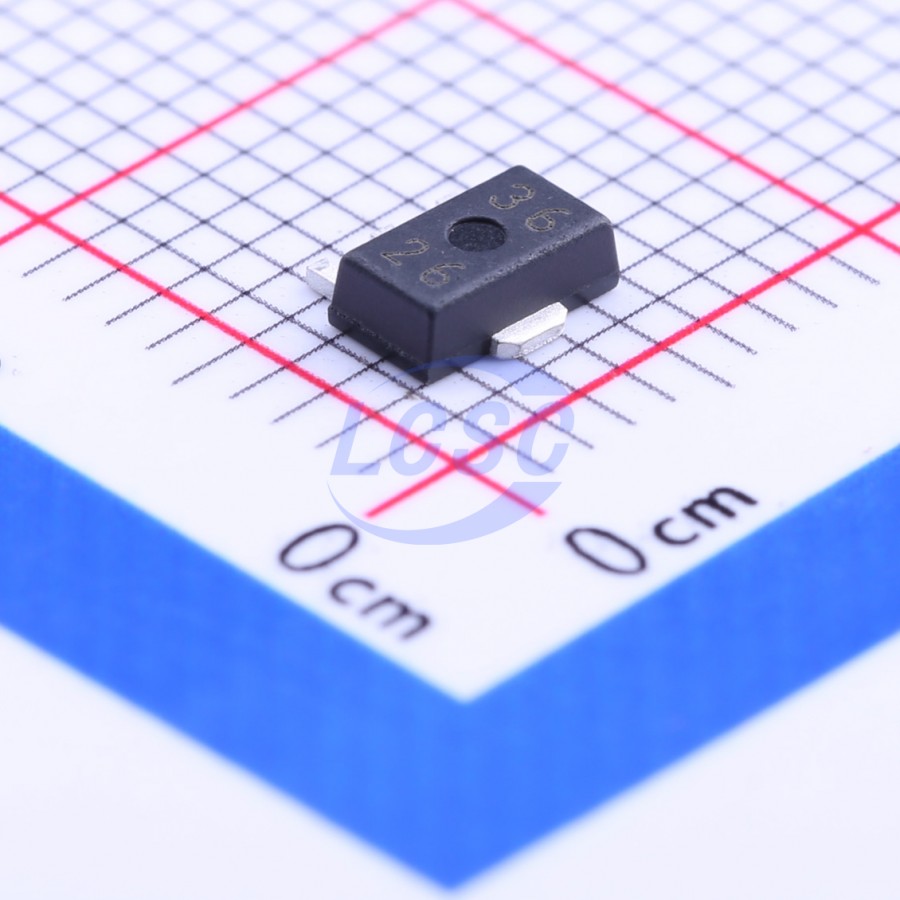

XC6203P332PR-G
3.3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS3 CompliantActive
Large Current Positive Voltage Regulators
- Manufacturer
- TOREX
- Manufacturer part #
- XC6203P332PR-G
- Store part #
- C190503
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,260 in stock
#C190503
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.93 | ₹214.65 |
| 50+ | ₹34.17 | ₹1,708.50 |
| 150+ | ₹30.42 | ₹4,563.00 |
| 1,000+ | ₹25.73 | ₹25,730.00 |
| 2,000+ | ₹23.66 | ₹47,320.00 |
| 5,000+ | ₹22.40 | ₹1,12,000.00 |
5 × ₹42.93
₹214.65
excl. GST
₹253.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
XC6203P332PR-G
₹214.65 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Operating Voltage
- 8V
- Output Current
- 400mA
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.127 g
Overview
The XC6203 series are highly precise, low power consumption, 3 terminal positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The XC6203P consists of a driver transistor, a current limiter, a precision reference voltage and an error amplifier. The XC6203E is also available but without the current limiter function. Output voltage is selectable in 0.1V increments between a voltage of 1.8V and 6.0V. SOT - 23, SOT - 89, SOT - 223 package are available.
Applications
- Magnetic disk drive
- Note PCs / Tabet PCs
- Digital still cameras / Camcorders
- Digital audio equipments
- Reference voltage sources
- Multi - function power supplies
Key features
- Maximum Output Current: 400mA (3.3V)
- Maximum Operating Voltage: 8.0V
- Output Voltage Range: 1.8V ~ 6.0V (selectable in 0.1V increments)
- Highly Accurate: ±2%
- Low Power Consumption: 8.0 μA (TYP.)
- Line Regulation: 0.2% / V (TYP.)
- Output Voltage Temperature Characteristics: ±100 ppm/°C (TYP.)
- Dropout Voltage: 150mV @ 100mA, 300mV @ 200mA
- Operating Ambient Temperature: -40°C ~ 85°C
- Packages: SOT - 23, SOT - 89, SOT - 223
- Environmentally Friendly: EU RoHS Compliant, Pb Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DS8242-33A3#C5884129DSTECH · SOT-89-3 | DSTECH | SOT-89-3 | 1,590 | ₹5.98 · 1,590 in stock | View |
 | DS8242-33A3R#C5884131DSTECH · SOT-89-3R | DSTECH | SOT-89-3R | 235 | ₹13.51 · 235 in stock | View |
 | QN7833PG#C42444840QNHCHIP · SOT-89 | QNHCHIP | SOT-89 | 500 | ₹11.43 · 500 in stock | View |
 | HT7833#C50936HOLTEK · SOT-89-3 | HOLTEK | SOT-89-3 | 3,495 | ₹46.83 · 3,495 in stock | View |
 | BL9153-33CC3TR#C976195BL · SOT-89-3L | BL | SOT-89-3L | On request | Price on request | Quote |
