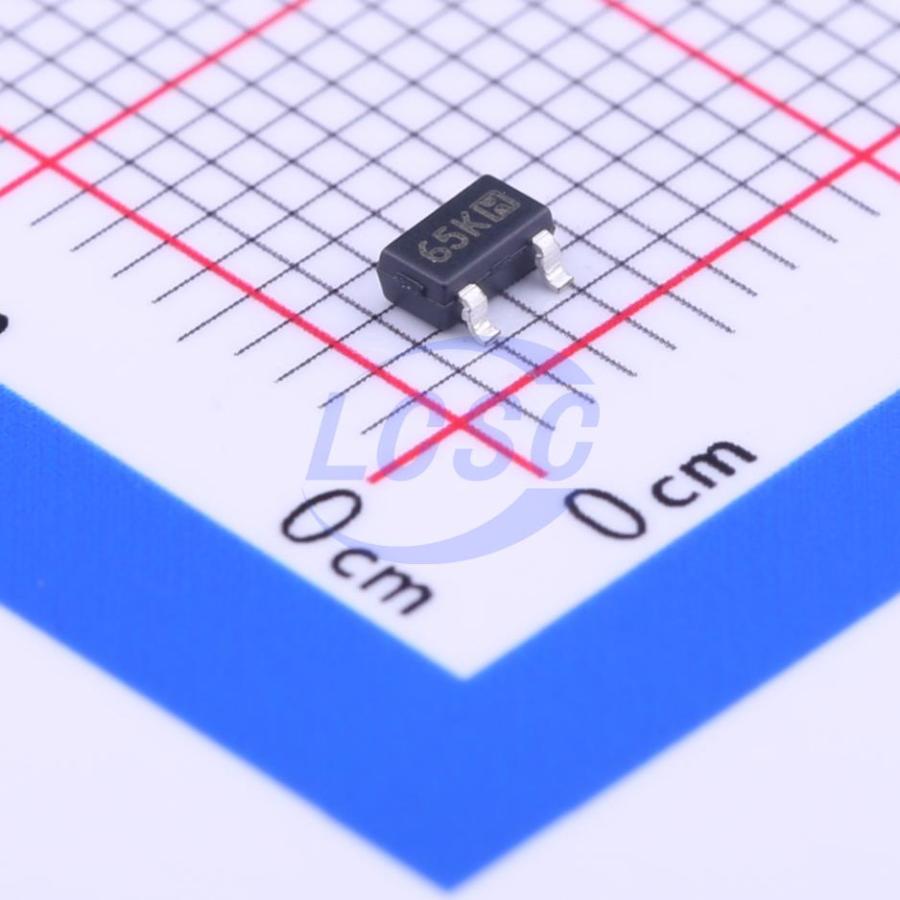

XC6206P182MR

The XC6206 series are highly precise, low power consumption, 3 terminal, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The XC6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The currrent limiter's foldback circuit operates as a short circuit protection as well as the output current limiter for the output pin. Output voltages are internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 5.0V. SOT-23, SOT-89, TO-92 and USP-6B packages are available.

Applications

• Smart phones / Mobile phones
• Portable game consoles
• Digital still cameras / Camcorders
• Digital audio equipments
• Reference voltage sources
• Multi-function power supplies

Key features

• Maximum Output Current : 200mA (3.0V type)
• Dropout Voltage : 250mV @ 100mA (3.0V type)
• Maximum Operating Voltage : 6.0V
• Output Voltage Range : 1.2V~5.0V (0.1V increments)
• Highly Accurate : ± 2% @ VOUT ≥ 1.5V +30mV@VOUT<1.5V (+1% @VOUT>2.0V)
• Low Power Consumption : 1.0μA (TYP.)
• Low ESR Capacitor : Ceramic capacitor compatible
• Protection : Current Limit Circuit Built-in
• Operating Ambient Temperature : -40°C~+85°C
• Packages : SOT-23 SOT-89 TO-92 USP-6B
• Environmentally Friendly : EU RoHS Compliant, Pb Free
